Tractor · 1978Unverified

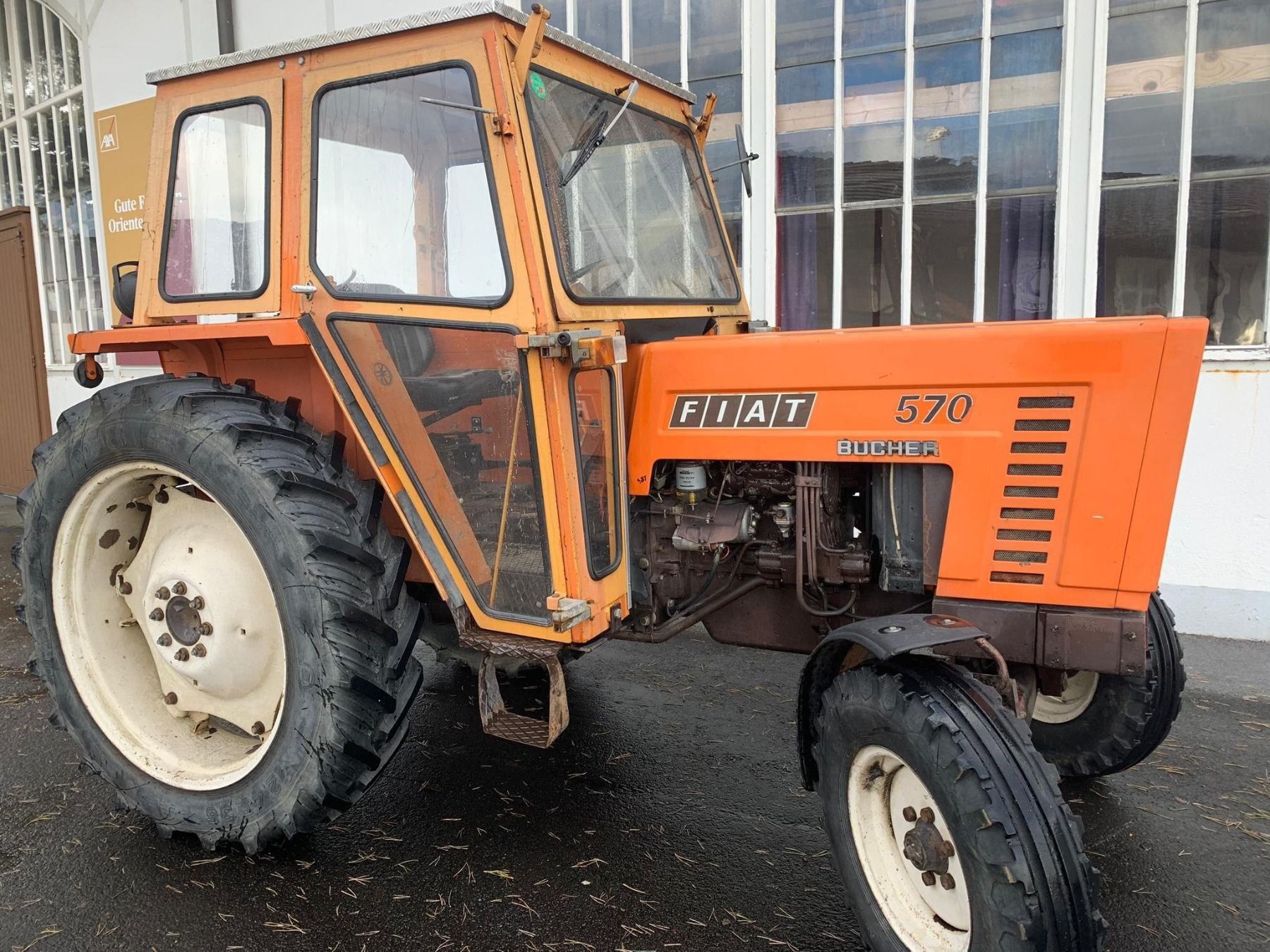

Fiat 570
Fiat 570 — Orchard/Vineyard tractor · 57 hp. Reference specifications; pending source verification.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
57 hp
Weight
1900 kg
Hover a source tag to verify
Overview
ManufacturerFiatReference
Orchard/Vineyard tractorReference
Two-wheel driveReference
Final drivesplanetaryReference
Differential lockmechanical rearReference
Power steeringReference
Hydraulic wet disc brakesReference
Trailer brakeshydraulicReference
Open operator station. Two-post ROPS available.Reference
Variants
580utilityReference
570orchardReference
Engine
Fiat 2.8L 3-cyl dieselReference
Fuel tank70.0 LReference
Engine42.7 kWReference
Fiat 8035Reference
dieselReference
3-cylinderReference
liquid-cooledReference
Displacement2.8 LReference
Bore/Stroke103 x 110 mmReference
Power42.7 kWReference
Fuel systemdirect injectionReference
Air cleanerdual dry elementReference
Compression17:1Reference
Rated RPM2650Reference
StarterelectricReference
Starter volts12Reference
Transmission
8-speed partially synchronizedReference
16-speed creeperReference
8-speed mechanical shuttleReference
Typepartially synchronizedReference
Gears8 forward and 2 reverseReference
Clutch279.4 dry discReference
Four gears (1-4), plus reverse (R), in two ranges. Gears 3/4 and 7/8 are synchronized.Reference
TypecreeperReference
Gears16 forward and 4 reverseReference
Four gears (1-4), plus reverse (R), in four ranges. Also available in a three range (12-speed) version.Reference
Typemechanical shuttleReference
Gears8 forward and reverseReference
Four gears (1-4) in two ranges with mechanical shuttle.Reference
PTO & Hydraulics
Typeopen centerReference
Pump flow24.6 lpmReference
Rear TypeII/IReference
Controlposition and draft controlReference
Rear lift1935 kgReference
Rear PTOindependentReference
Rear PTO Type540 (1.375)Reference
Rear PTO Type540/1000Reference
Engine RPM540@2315Reference
Dimensions
Wheelbase189 cmReference
Weight1900 kgReference
Front tire7.00-12Reference
Rear tire13.6/12-24Reference
Standard tires (ag)Front: 7.00-12. Rear: 13.6/12-24Reference
Length292 cmReference
Height (steering wheel)137 cmReference
Height (hood)124 cmReference
Operating weight1900 kgReference
Ground clearance35 cmReference
Front tread116/126/136/146 cmReference
Rear tread98 to 149 cmReference
Electrical
GroundnegativeReference
Battery volts12Reference
Speeds
With 13.6/12-24 rear tires.Reference
With 13.6/12-24 rear tires. Reverse speeds are 10% slower than forward.Reference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
