Tractor · 1978Unverified

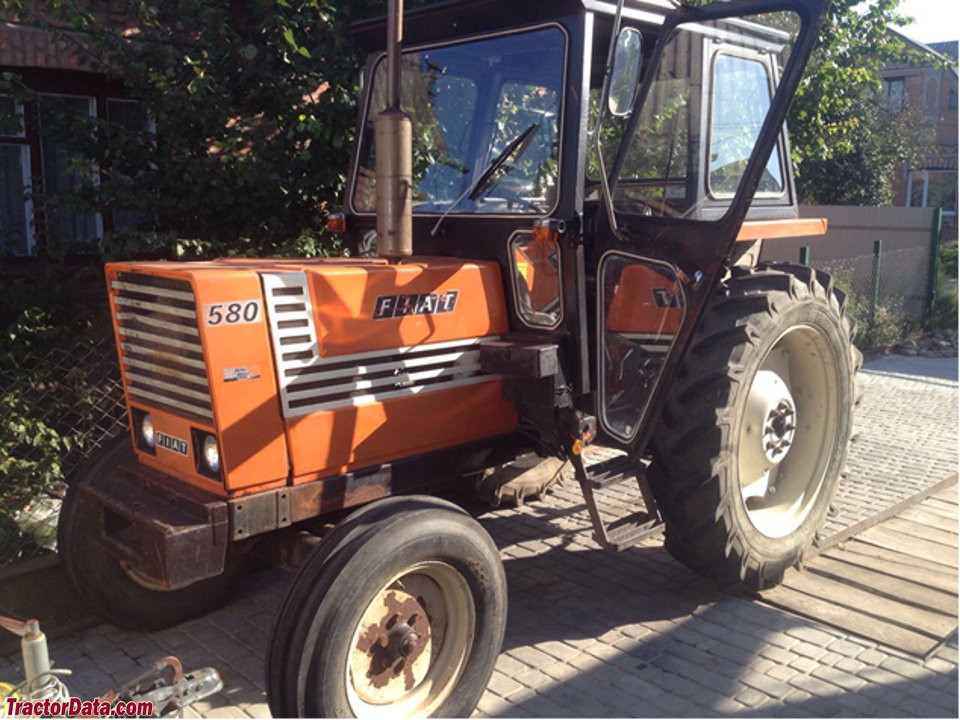

Fiat 580
Fiat 580 — Utility tractor · 50 hp. Reference specifications; pending source verification.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
50 hp
Weight
5149 to 5766 pounds
Hover a source tag to verify
Overview
ManufacturerFiatReference
Utility tractorReference
Two- or four-wheel driveReference
Final drivesplanetaryReference
Power steeringReference
Hydraulic wet disc brakesReference
Four-post ROPS. Cab optional with available air-conditioning.Reference
Variants
580utilityReference
570orchardReference
Engine
Fiat 2.8L 3-cyl dieselReference
Fuel tank79.9 LReference
Engine42.7 kWReference
Fiat 8035Reference
dieselReference
3-cylinderReference
liquid-cooledReference
Displacement2.8 LReference
Bore/Stroke103 x 110 mmReference
Power42.7 kWReference
Air cleanerdual dry elementReference
Compression17:1Reference
Rated RPM2700Reference
Firing order1-2-3Reference
Starter volts12Reference
Transmission
8-speed partially synchronizedReference
12-speedReference
8-speed mechanical shuttleReference
16-speed creeperReference
Typepartially synchronizedReference
Gears8 forward and 2 reverseReference
Four gears (1-4) plus reverse (R) in two ranges (low/high).Reference
Gears12 forward and 3 reverseReference
Four gears (1-4) plus reverse (R) in three ranges (low/intermediate/high).Reference
Typemechanical shuttleReference
Gears8 forward and reverseReference
Four gears (1-4) in two ranges (low/high) with shuttle shift.Reference
TypecreeperReference
Gears16 forward and 4 reverseReference
Four gears (1-4) plus reverse (R) in four ranges (creeper/low/intermediate/high).Reference
PTO & Hydraulics
PTO (claimed)37.3 kWReference
Pump flow28.0 lpmReference
Rear TypeII/IReference
Rear lift2400 kgReference
Rear PTOindependentReference
Rear PTO Type540 (1.375)Reference
Engine RPM540@2314Reference
Dimensions
2WD Wheelbase217 cmReference
4WD Wheelbase215 cmReference
Weight5149 to 5766 poundsReference
Front tire6.00-19Reference
2WD Rear tire12.4/11-36Reference
2WD Standard tires (ag)Front: 6.00-19. Rear: 12.4/11-36Reference
4WD Standard tires (ag)Front: 11.2/10-24. Rear: 12.4/11-36Reference
Optional tires (ag)Front: 12.4/11-24. Rear: 13.6/12-36Reference
Optional tires (ag)Front: 9.5/9-24. Rear: 14.9/13-30Reference
2WD Length332 cmReference
4WD Length343 cmReference
2WD Weight2335 kgReference
4WD Weight2615 kgReference
2WD Clearance (front axle)48 cmReference
4WD Clearance (front axle)40 cmReference
2WD Front tread139 to 189 cmReference
4WD Front tread152 to 195 cmReference
Rear tread139 to 199 cmReference
2WD Steering wheel175 cmReference
4WD Steering wheel177 cmReference
Electrical
GroundnegativeReference
Charging systemalternatorReference
Charging amps33Reference
Battery volts12Reference
Fiat 580 Height
2WD Hood147 cmReference
4WD Hood148 cmReference
Cab249 cmReference
2WD Exhaust250 cmReference
4WD Exhaust251 cmReference
Speeds
With 12.4/11-36 rear tires.Reference
With 12.4/11-36 rear tires. Reverse speeds are 10% slower than forward.Reference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
