Tractor · 1984Unverified

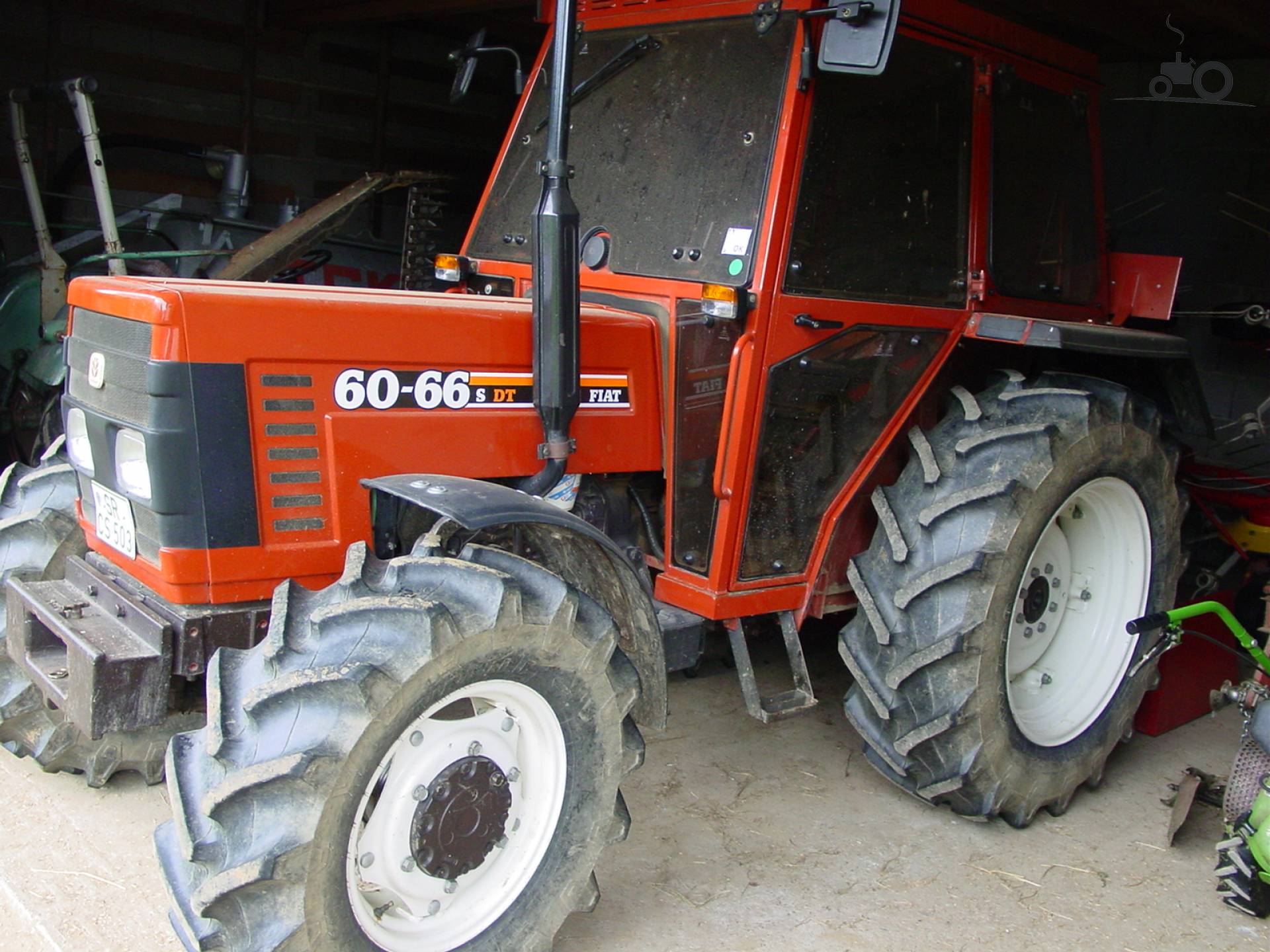

Fiat 60-66
Fiat 60-66 — 66 Series · 59 hp. Reference specifications; pending source verification.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
59 hp
Weight
2860 kg
Hover a source tag to verify
Overview
ManufacturerFiatReference
Utility tractorReference
Two- or four-wheel driveReference
Power steeringReference
Engine
Iveco 2.9L 3-cyl dieselReference
Fuel tank73.1 LReference
Engine44.1 kWReference
Iveco 8035.06Reference
dieselReference
3-cylinderReference
liquid-cooledReference
Displacement2.9 LReference
Bore/Stroke104 x 115 mmReference
Power44.1 kWReference
Rated RPM2500Reference
Torque203.0 NmReference
Torque RPM1500Reference
Transmission
12-speedReference
Gears12 forward and 4 reverseReference
PTO & Hydraulics
Pump flow34.5 lpmReference
Rear lift2900 kgReference
Rear PTO Type540/1000Reference
Dimensions
Wheelbase218 cmReference
Weight2860 kgReference
Front tire7.50-16Reference
Rear tire12.4-36Reference
Ag front7.50-16 (2WD)Reference
Ag front11.2R24 (4WD)Reference
Ag rear12.4-36Reference
Length363 cmReference
Height243 cmReference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
