Tractor · 1992Unverified

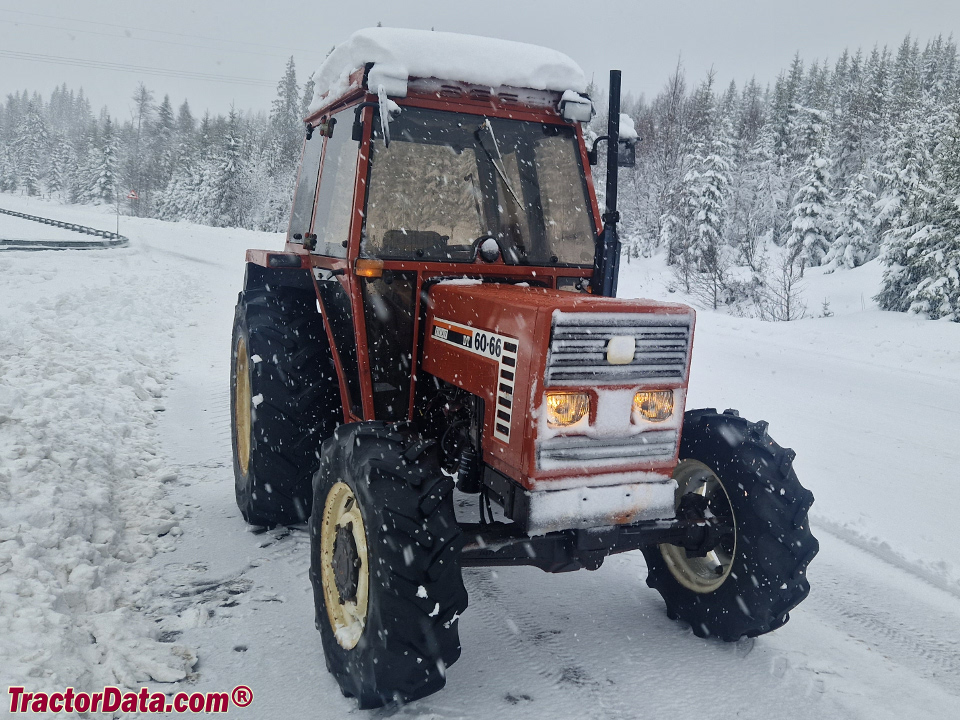

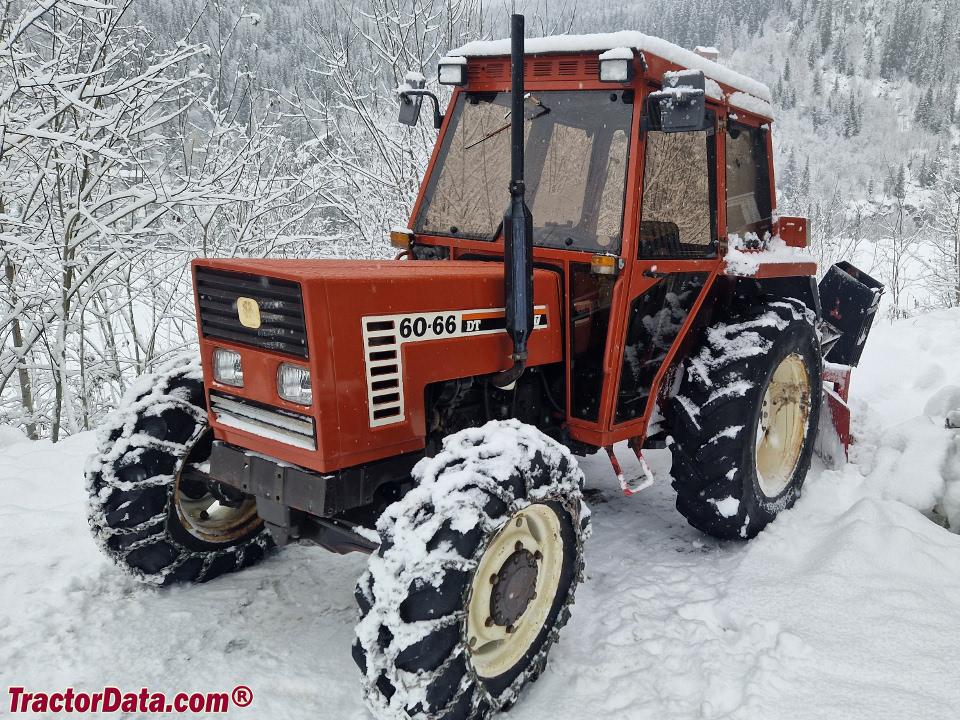

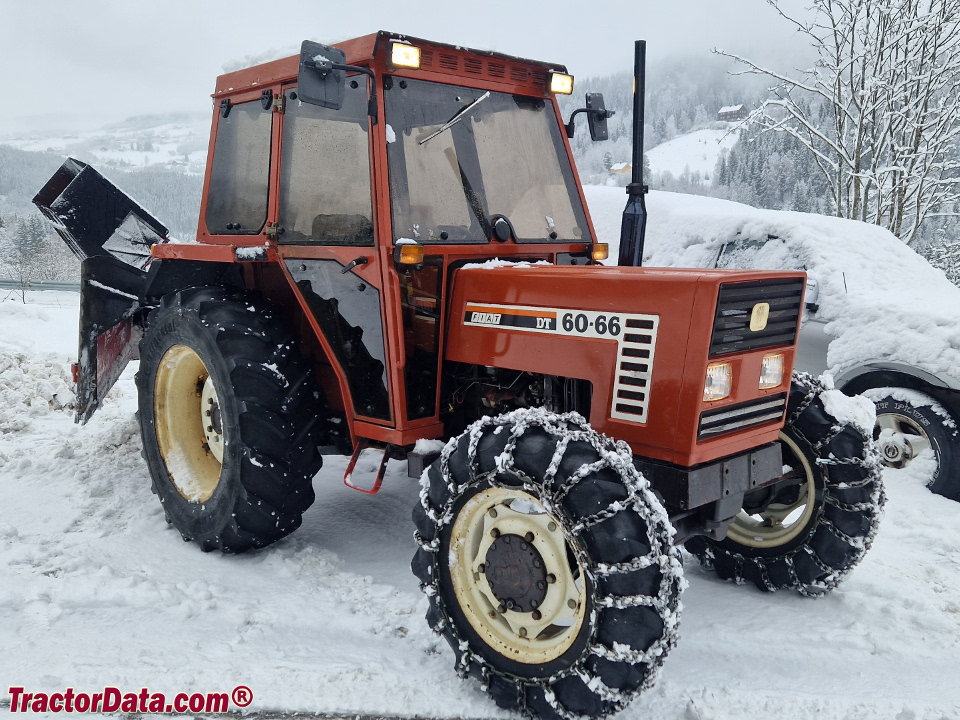

Fiat 60-66S

Name: Fiat 60-66S
Brand: Fiat

Fiat 60-66S — 66S Series · 59 hp. Reference specifications; pending source verification.

The Fiat 60-66S is a tractor characterised by a rated power output of 59 hp, positioning it within the lighter categories of its class. Manufactured from 1992 to 1996, this model features a 3-cylinder diesel liquid-cooled engine, coupled with four-wheel drive and a 12-speed gearbox. The operating weight of the 60-66S ranges from 5004 to 5490 pounds, and it is suited to operations covering areas of up to 200 acres.

Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.

Rated power

59 hp

Weight

5004 to 5490 pounds

Catalogue coverage

Variants represented

Richest spec table

55 rows

Recorded power

59 hp

Recorded weight

2269 kg

Transmissions

12-speed gear

Production years

1992-1996

Verified variants

No linked source document is currently displayed; verify critical figures with the manufacturer or dealer.

Hover a source tag to verify

Overview

ManufacturerFiatReference

Utility tractorReference

Two- or four-wheel driveReference

Power steeringReference

Wet disc brakesReference

Four-post ROPS. Cab optional.Reference

Engine

Iveco 2.7L 3-cyl dieselReference

Engine44.1 kWReference

Iveco 8035.05Reference

dieselReference

3-cylinderReference

liquid-cooledReference

Displacement2.7 LReference

Bore/Stroke100 x 115 mmReference

Power44.1 kWReference

Rated RPM2500Reference

StarterelectricReference

Starter volts12Reference

Transmission

12-speed gearReference

12-speed sync shuttleReference

20-speed creeperReference

TypegearReference

Gears12 forward and 4 reverseReference

Typesync shuttleReference

Gears12 forward and reverseReference

TypecreeperReference

Gears20 forward and 12 reverseReference

PTO & Hydraulics

Rear lift3000 kgReference

Rear PTO Type540 (1.375)Reference

Rear PTO Type540/750Reference

Rear PTO Type540/1000Reference

Dimensions

2WD Wheelbase217 cmReference

4WD Wheelbase211 cmReference

Weight5004 to 5490 poundsReference

Front tire6.00-16Reference

2WD Rear tire14.9/13-28Reference

2WD Standard tires (ag)Front: 6.00-16. Rear: 14.9/13-28Reference

4WD Standard tires (ag)Front: 11.2/10-20. Rear: 14.9/13-28Reference

2WD Length330 cmReference

4WD Length328 cmReference

2WD ROPS Weight2269 kgReference

4WD ROPS Weight2490 kgReference

2WD Ground clearance49 cmReference

4WD Ground clearance36 cmReference

2WD Front tread140 to 192 cmReference

4WD Front tread144 to 187 cmReference

Rear tread142 to 192 cmReference

2WD Steering wheel157 cmReference

4WD Steering wheel158 cmReference

Electrical

GroundnegativeReference

Battery volts12Reference

Fiat 60-66S Height

2WD Hood142 cmReference

4WD Hood139 cmReference

ROPS241 cmReference

Cab232 cmReference

Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
