Tractor · 1989Unverified

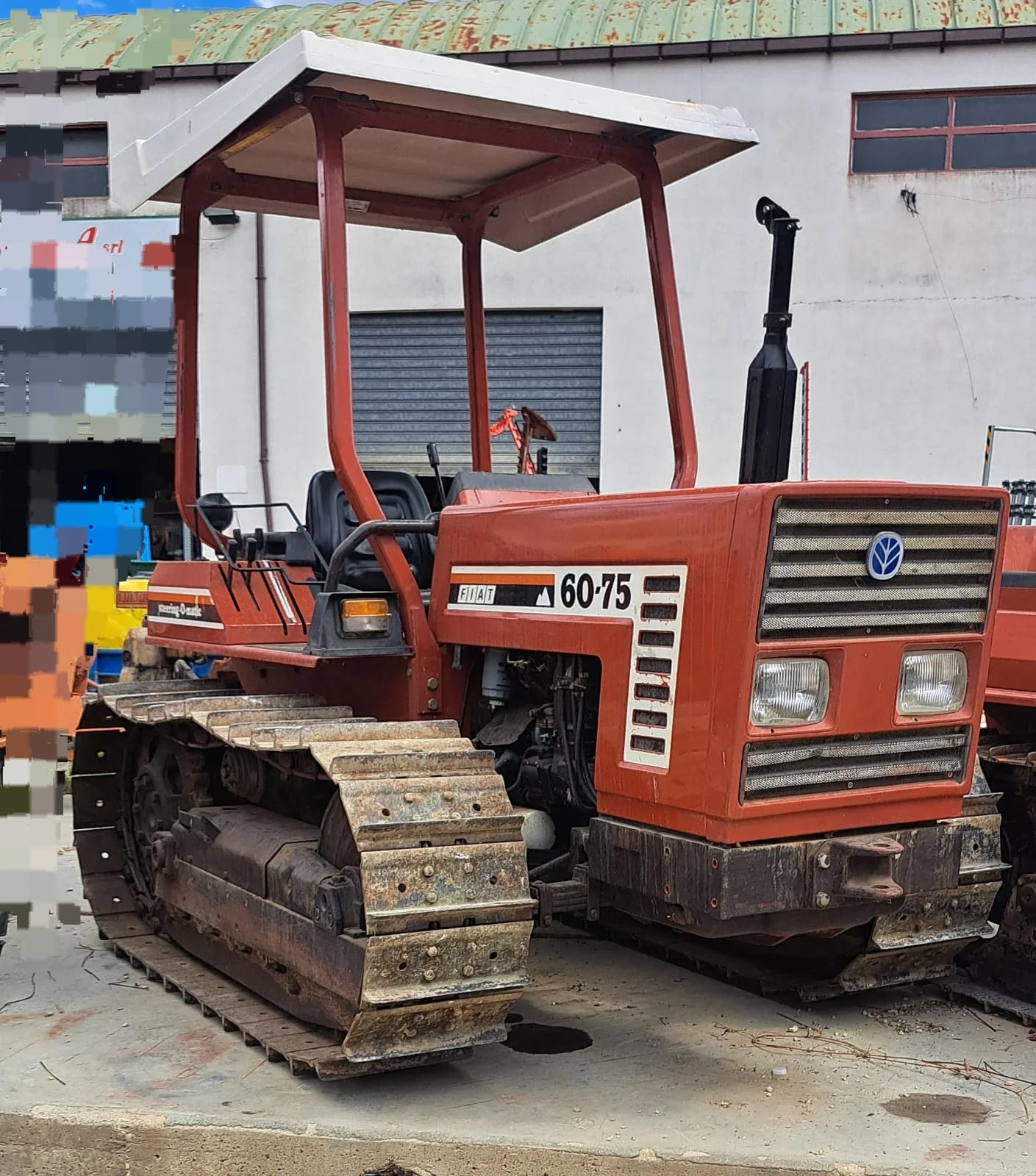

Fiat 60-75
Fiat 60-75 — 75 Series · 59 hp. Reference specifications; pending source verification.
The Fiat 60-75 is a tractor with a rating of approximately 59 hp, positioning it at the lighter end of its class. It was manufactured between 1989 and 1992. The machine features a 3-cylinder diesel liquid-cooled engine, coupled with a tracked undercarriage and an 8-speed gearbox. Its listed operating weight is 3289 kg, suitable for operations covering up to 200 acres.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
59 hp
Weight
3289 kg
Catalogue coverage
Variants represented
2
Richest spec table
33 rows
Recorded power
59 hp
Recorded weight
3289 kg
Transmissions
8-speed
Production years
1989-1992
Verified variants
0
No linked source document is currently displayed; verify critical figures with the manufacturer or dealer.
Hover a source tag to verify
Overview
ManufacturerFiatReference
Agricultural Crawler tractorReference
DrivecrawlerReference
Engine
Fiat 2.9L 3-cyl dieselReference
Engine44.1 kWReference
Fiat 8035.05Reference
dieselReference
3-cylinderReference
liquid-cooledReference
Displacement2.9 LReference
Bore/Stroke104 x 115 mmReference
Power44.1 kWReference
StarterelectricReference
Starter volts12Reference
Transmission
8-speedReference
16-speedReference
Gears8 forward and 4 reverseReference
Gears8 forward and reverseReference
Gears16 forward and 8 reverseReference
PTO & Hydraulics
Rear TypeII/IReference
Rear lift3719 kgReference
Rear PTO Type540Reference
Rear PTO Type540/1000Reference
Dimensions
Wheelbase137 cmReference
Weight3289 kgReference
12.2-inch tracksReference
Length304 cmReference
Width140 cmReference
Height (hood)119 cmReference
Height (ROPS)221 cmReference
Ground clearance26 cmReference
Gauge109 cmReference
Fiat 60-75 Tracks
Width30 cmReference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
