Tractor · 1990Unverified

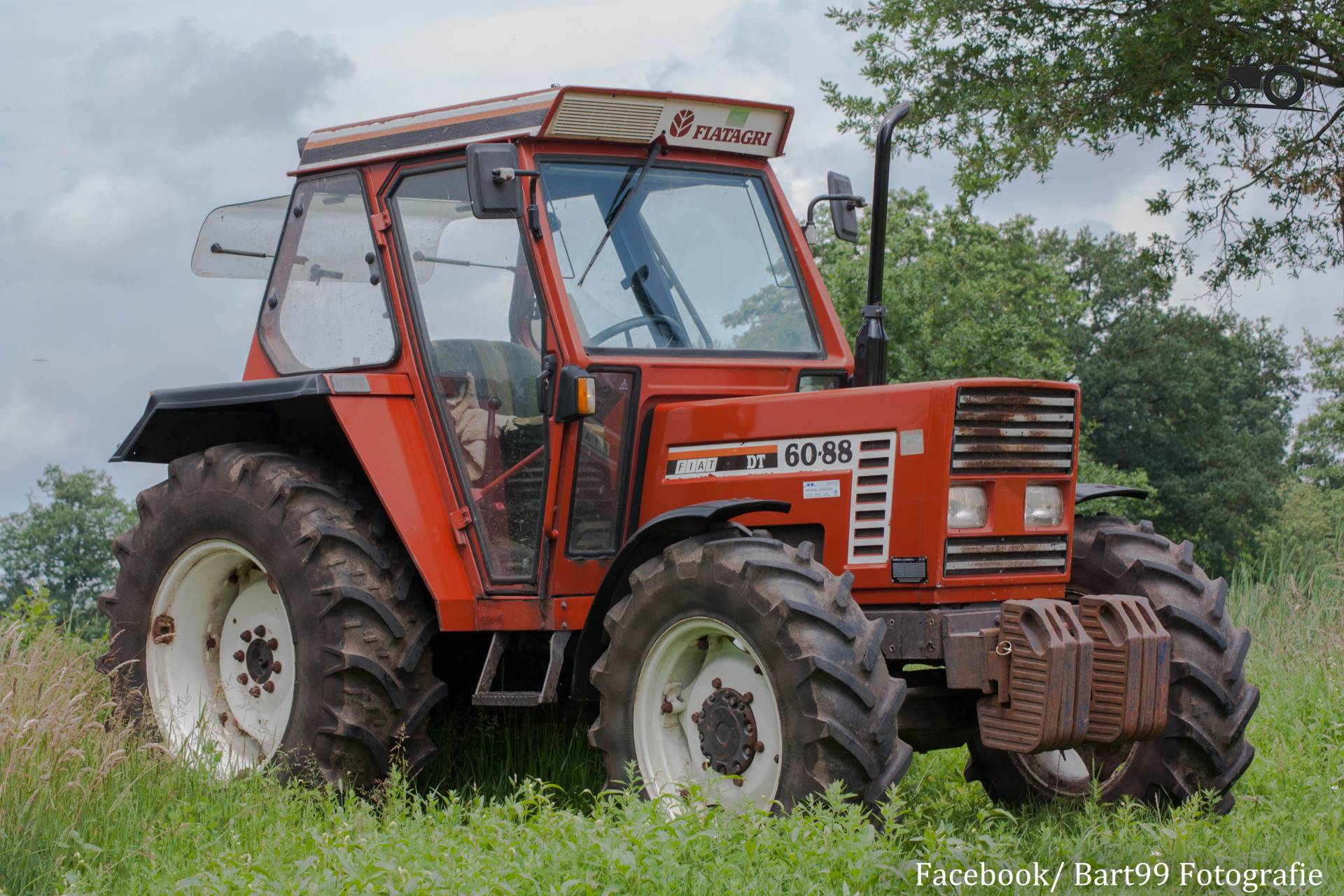

Fiat 60-88
Fiat 60-88 — 88 Series · 54 hp. Reference specifications; pending source verification.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
54 hp
Weight
6614 to 7055 pounds
Hover a source tag to verify
Overview
ManufacturerFiatReference
Utility tractorReference
Two- or four-wheel driveReference
Power steeringReference
Hydraulic wet disc brakesReference
Cab standard with heat.Reference
Engine
Fiat 2.7L 3-cyl dieselReference
Fuel tank93.1 LReference
Engine44.1 kWReference
Fiat 8035.05Reference
dieselReference
3-cylinderReference
liquid-cooledReference
Displacement2.7 LReference
Bore/Stroke100 x 115 mmReference
Power44.1 kWReference
Fuel systemdirect injectionReference
Pre-heatingthermostartReference
Compression17:1Reference
Rated RPM2500Reference
Torque194.0 NmReference
Torque RPM1500Reference
StarterelectricReference
Starter volts12Reference
Oil capacity6.0 LReference
Transmission
12-speedReference
20-speed creeperReference
12-speed shuttleReference
Gears12 forward and 4 reverseReference
Clutch279.4mm dry discReference
Oil capacity49.0 LReference
TypecreeperReference
Gears20 forward and 8 reverseReference
TypeshuttleReference
Gears12 forward and reverseReference
PTO & Hydraulics
PTO (claimed)40.0 kWReference
Pump flow43.9 lpmReference
Rear TypeII/IReference
Rear PTOindependentReference
Rear PTO Type540 (1.375)Reference
Engine RPM540@2200Reference
Dimensions
2WD Wheelbase222 cmReference
4WD Wheelbase219 cmReference
Weight6614 to 7055 poundsReference
Front tire7.50-16Reference
2WD Rear tire13.6/12-36Reference
2WD Standard tires (ag)Front: 7.50-16. Rear: 13.6/12-36Reference
4WD Standard tires (ag)Front: 12.4/11-24. Rear: 13.6/12-36Reference
2WD Optional tires (ag)Front: 7.50-16. Rear: 16.9/14-30Reference
4WD Optional tires (ag)Front: 12.4/11-24. Rear: 16.9/14-30Reference
2WD Length339 cmReference
4WD Length349 cmReference
2WD Weight3000 kgReference
4WD Weight3200 kgReference
2WD Ground clearance44 cmReference
4WD Ground clearance39 cmReference
2WD Front tread139 to 189 cmReference
4WD Front tread145 to 187 cmReference
Fiat 60-88 Height
2WD Hood143 cmReference
4WD Hood146 cmReference
Cab252 cmReference
Speeds
With 13.6-36 rear tires.Reference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
