Tractor · 1984Unverified

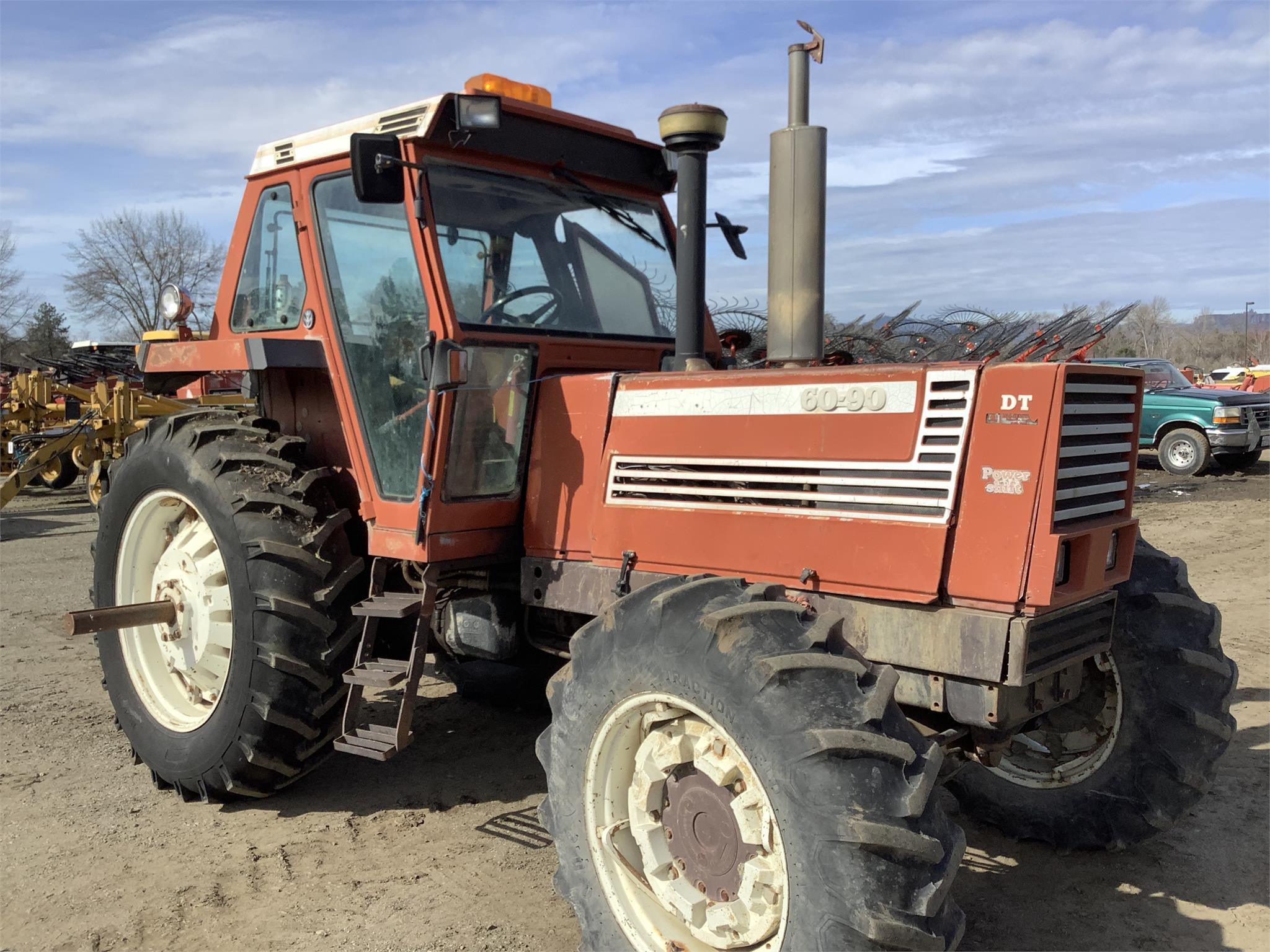

Fiat 60-90
Fiat 60-90 — 90 Series · 60 hp. Reference specifications; pending source verification.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
60 hp
Weight
6636 to 7672 pounds
Hover a source tag to verify
Overview
ManufacturerFiatReference
Utility tractorReference
Two- or four-wheel driveReference
Final drivesplanetaryReference
Differential lockhydraulic rearReference
Power steeringReference
Hydraulic wet disc brakesReference
Cab standard with heater.Reference
Variants
60-902WDReference
60-90DT4WDReference
Engine
Fiat 2.9L 3-cyl dieselReference
Fuel tank93.1 LReference
Engine44.7 kWReference
Fiat 8035.05Reference
dieselReference
3-cylinderReference
liquid-cooledReference
Displacement2.9 LReference
Bore/Stroke104 x 115 mmReference
Power44.7 kWReference
Air cleaneroil bathReference
Rated RPM2500Reference
Starter typeelectricReference
Transmission
12-speedReference
12-speed shuttleReference
20-speed creeperReference
Gears12 forward and 4 reverseReference
Clutch280mm dry discReference
Four gears (1-4) in three ranges (low, medium, high) plus reverse range.Reference
TypeshuttleReference
Gears12 forward and reverseReference
Four gears (1-4) in three ranges (low, medium, high) with left-hand shuttle.Reference
TypecreeperReference
Gears20 forward and 8 reverseReference
Additional two forward and one reverse creeper ranges added to the basic transmission.Reference
PTO & Hydraulics
Pump flow33.7 lpmReference
Rear TypeII/IReference
Rear lift2899 kgReference
Rear PTOindependentReference
Clutch280mm dry discReference
Rear PTO Type540Reference
Rear PTO Type540/1000Reference
Engine RPM540@2200Reference
Engine RPM1000@2375Reference
Dimensions
2WD Wheelbase223 cmReference
4WD Wheelbase219 cmReference
Weight6636 to 7672 poundsReference
Front tire7.50-16Reference
2WD Rear tire16.9-30Reference
2WD Standard tires (ag)Front: 7.50-16. Rear: 16.9-30Reference
4WD Standard tires (ag)Front: 11.2-24. Rear: 16.9-30Reference
2WD Optional tires (ag)Front: 7.50-16. Rear: 13.6-36Reference
4WD Optional tires (ag)Front: 11.2-24. Rear: 13.6-36Reference
Length341 cmReference
Height (cab)252 cmReference
2WD Weight3010 kgReference
4WD Weight3480 kgReference
2WD Front tread139 to 189 cmReference
4WD Front tread154 to 187 cmReference
Rear tread150 to 199 cmReference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
