Tractor · 1993Unverified

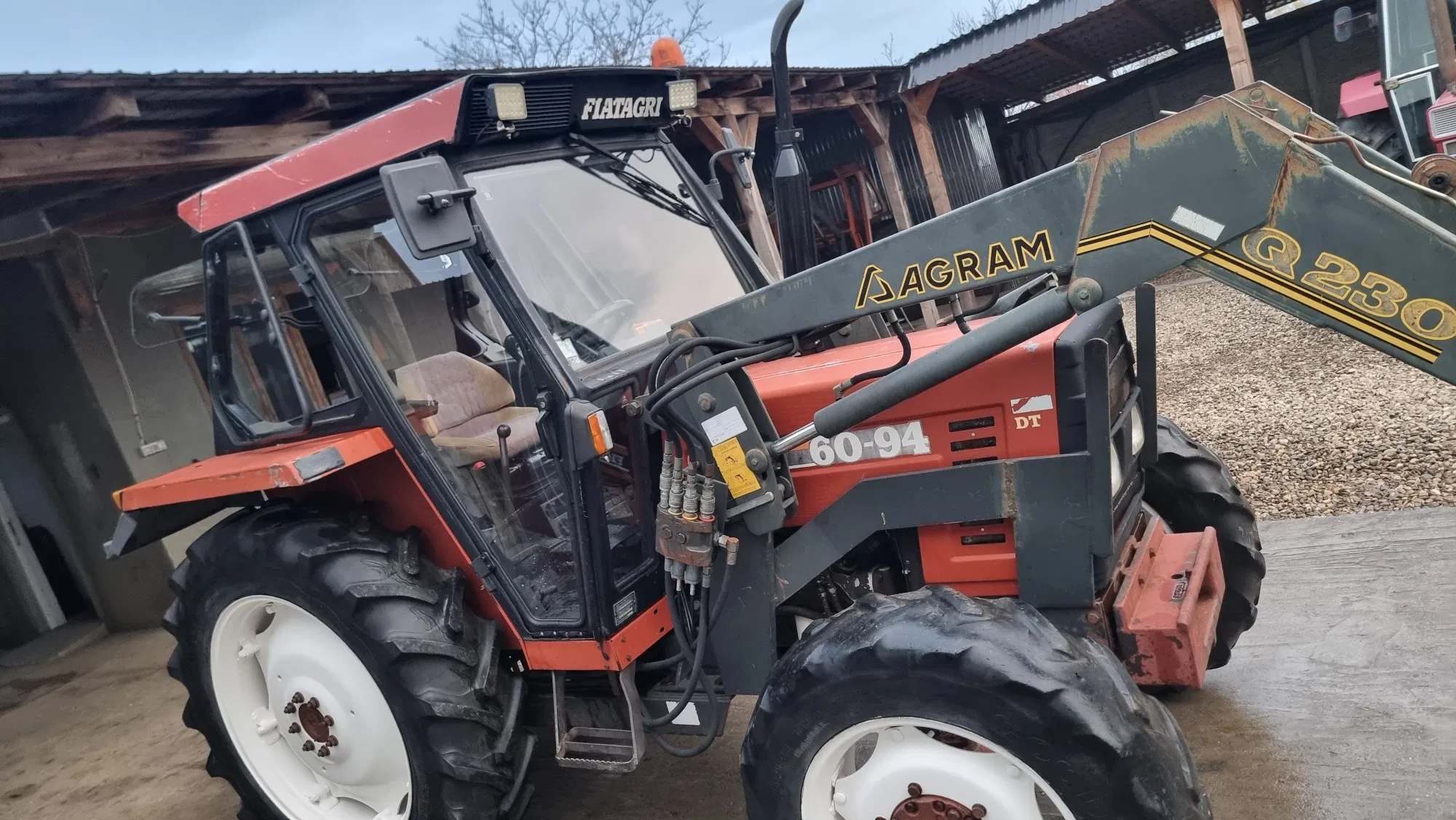

Fiat 60-94

Name: Fiat 60-94
Brand: Fiat

Fiat 60-94 — 94 Series · 60 hp. Reference specifications; pending source verification.

The Fiat 60-94 is a tractor model with an approximate power rating of 60 hp, situated at the lower end of its class. It was produced from 1993 to 1996 and features a 3-cylinder diesel liquid-cooled engine paired with a 12-speed gearbox and four-wheel drive. The tractor has a listed operating weight of 6482 to 6945 pounds. It is suited for operations covering up to 200 acres.

Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.

Rated power

60 hp

Weight

6482 to 6945 pounds

Catalogue coverage

Variants represented

Richest spec table

46 rows

Recorded power

60 hp

Recorded weight

2940 kg

Transmissions

12-speed

Production years

1993-1996

Verified variants

No linked source document is currently displayed; verify critical figures with the manufacturer or dealer.

Hover a source tag to verify

Overview

ManufacturerFiatReference

Utility tractorReference

Two- or four-wheel driveReference

Final drivesplanetaryReference

Differential lockmechanical rearReference

Power steeringReference

Wet disc brakesReference

Cab standard. Four-post ROPS canopy available.Reference

Engine

Fiat 2.9L 3-cyl dieselReference

Fuel tank93.1 LReference

Engine44.7 kWReference

Fiat 8035.05Reference

dieselReference

3-cylinderReference

liquid-cooledReference

Displacement2.9 LReference

Bore/Stroke104 x 115 mmReference

Power44.7 kWReference

Rated RPM2500Reference

Transmission

12-speedReference

24-speed creeperReference

Gears12 forward and 4 reverseReference

Clutch279mm dry discReference

Gears12 forward and reverseReference

TypecreeperReference

Gears24 forward and 12 reverseReference

PTO & Hydraulics

Pump flow39.0 lpmReference

Rear lift2900 kgReference

Rear PTOindependentReference

Rear PTO Type540/1000Reference

Dimensions

2WD Wheelbase223 cmReference

4WD Wheelbase221 cmReference

Weight6482 to 6945 poundsReference

Front tire7.50-16Reference

2WD Rear tire13.6/12-36Reference

2WD Standard tires (ag)Front: 7.50-16. Rear: 13.6/12-36Reference

4WD Standard tires (ag)Front: 12.4R20. Rear: 16.9/14-28Reference

2WD Length329 cmReference

4WD Length342 cmReference

Height (hood)143 cmReference

Height (cab)254 cmReference

2WD Weight2940 kgReference

4WD Weight3150 kgReference

2WD Front tread140 to 191 cmReference

4WD Front tread145 to 187 cmReference

Rear tread130 to 199 cmReference

Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
