Tractor · 1971Unverified

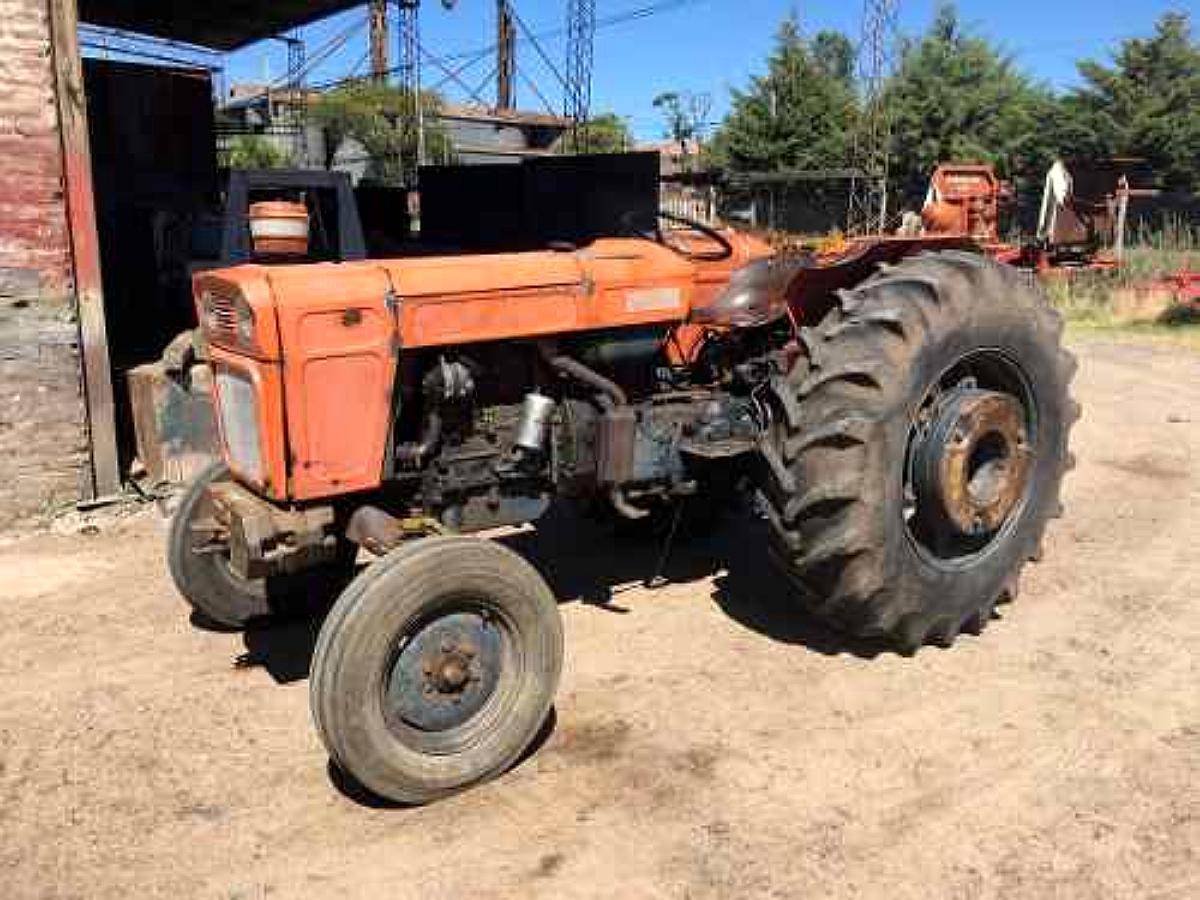

Fiat 600
Fiat 600 — Utility tractor · 60 hp. Reference specifications; pending source verification.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
60 hp
Weight
4620 to 5137 pounds
Hover a source tag to verify
Overview
ManufacturerFiatReference
Utility tractorReference
Two- or four-wheel driveReference
Final drivesspur gearReference
Differential lockmechanical rearReference
SteeringmanualReference
SteeringpowerReference
Band brakesReference
Open operator station.Reference
Variants
6002WDReference
600DT4WDReference
Engine
Fiat 3.5L 4-cyl dieselReference
Fuel tank54.1 LReference
Engine44.7 kWReference
Fiat 8045Reference
dieselReference
4-cylinderReference
liquid-cooledReference
Displacement3.5 LReference
Bore/Stroke100 x 110 mmReference
Power44.7 kWReference
Fuel systemdirect injectionReference
Pre-heatingthermostartReference
Compression17:1Reference
Rated RPM2400Reference
Starter volts12Reference
Transmission
8-speed gearReference
12-speed creeperReference
TypegearReference
Gears8 forward and 2 reverseReference
TypecreeperReference
Gears12 forward and 3 reverseReference
PTO & Hydraulics
Typeopen centerReference
Pump flow22.0 lpmReference
Rear TypeII/IReference
Controlposition and draft controlReference
Rear lift1397 kgReference
Rear PTOindependentReference
Rear PTO Type540 (1.375)Reference
Engine RPM540@1970Reference
Dimensions
2WD Wheelbase207 cmReference
4WD Wheelbase211 cmReference
Weight4620 to 5137 poundsReference
Front tire7.50-16Reference
2WD Rear tire14.9/13-30Reference
2WD Standard tires (ag)Front: 7.50-16. Rear: 14.9/13-30Reference
4WD Standard tires (ag)Front: 9.5/9-20. Rear: 14.9/13-28Reference
2WD Optional tires (ag)Front: 6.00-16. Rear: 11-32Reference
2WD Length317 cmReference
4WD Length325 cmReference
2WD Weight2095 kgReference
4WD Weight2330 kgReference
Ground clearance50 cmReference
2WD Front tread130 to 199 cmReference
4WD Front tread140/150 cmReference
Rear tread128 to 198 cmReference
2WD Steering wheel155 cmReference
4WD Steering wheel154 cmReference
Electrical
Charging systemalternatorReference
Battery volts12Reference
Fiat 600 Height
2WD Hood143 cmReference
4WD Hood140 cmReference
Speeds
With 14.9/13-30 rear tires.Reference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
