Tractor · 1970Unverified

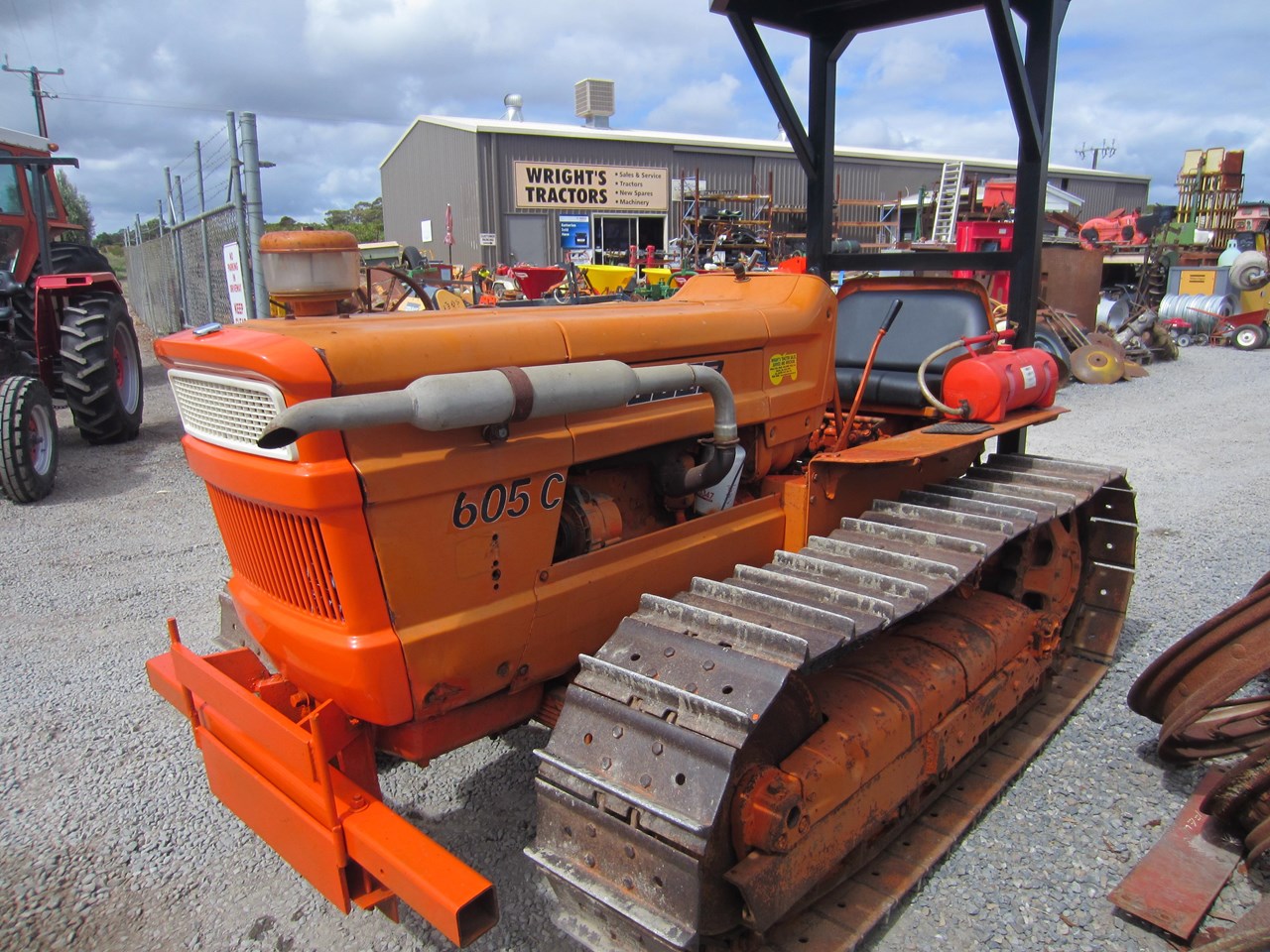

Fiat 605C

Name: Fiat 605C
Brand: Fiat

Fiat 605C — Agricultural Crawler tractor · 56 hp. Reference specifications; pending source verification.

The Fiat 605C is a compact tractor with a rated output of 56 hp, produced from 1970 to 1982. It is equipped with a 4-cylinder diesel liquid-cooled engine, which drives a tracked undercarriage through a 6-speed gearbox. The tractor's weight ranges from 6085 to 6300 pounds. It is suited to tasks of approximately 200 acres.

Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.

Rated power

56 hp

Weight

6085 to 6300 pounds

Catalogue coverage

Variants represented

Richest spec table

46 rows

Recorded power

56 hp

Recorded weight

2760 kg

Transmissions

6-speed gear

Production years

1970-1982

Verified variants

No linked source document is currently displayed; verify critical figures with the manufacturer or dealer.

Hover a source tag to verify

Overview

ManufacturerFiatReference

Agricultural Crawler tractorReference

DrivecrawlerReference

Open operator station.Reference

Variants

605CMmountainReference

Engine

Fiat 3.5L 4-cyl dieselReference

Engine41.8 kWReference

Fiat 8045Reference

dieselReference

4-cylinderReference

liquid-cooledReference

Displacement3.5 LReference

Bore/Stroke100 x 110 mmReference

Power41.8 kWReference

Compression17:1Reference

Rated RPM2200Reference

Starter volts12Reference

Transmission

6-speed gearReference

TypegearReference

Gears6 forward and 2 reverseReference

PTO & Hydraulics

Typeopen centerReference

Pressure147.2 barReference

Valves1Reference

Total flow16.3 lpmReference

Rear TypeII/IReference

Rear lift1549 kgReference

Rear PTO Type540Reference

Dimensions

Wheelbase152 cmReference

Weight6085 to 6300 poundsReference

12.2-inch tracksReference

Length278 cmReference

605C Width166 cmReference

605CM Width166 cmReference

Height (hood)122 cmReference

Height (exhaust)165 cmReference

605C Operating weight2760 kgReference

605CM Operating weight2857 kgReference

Ground clearance26 cmReference

605C Gauge109 cmReference

605CM Gauge130 cmReference

Capacities

Diameter24 cmReference

Width14 cmReference

RPM1144Reference

Speed899.95 meters/minReference

Fiat 605C Tracks

605C width30 cmReference

605CM width36 cmReference

Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
