Tractor · 1965Unverified

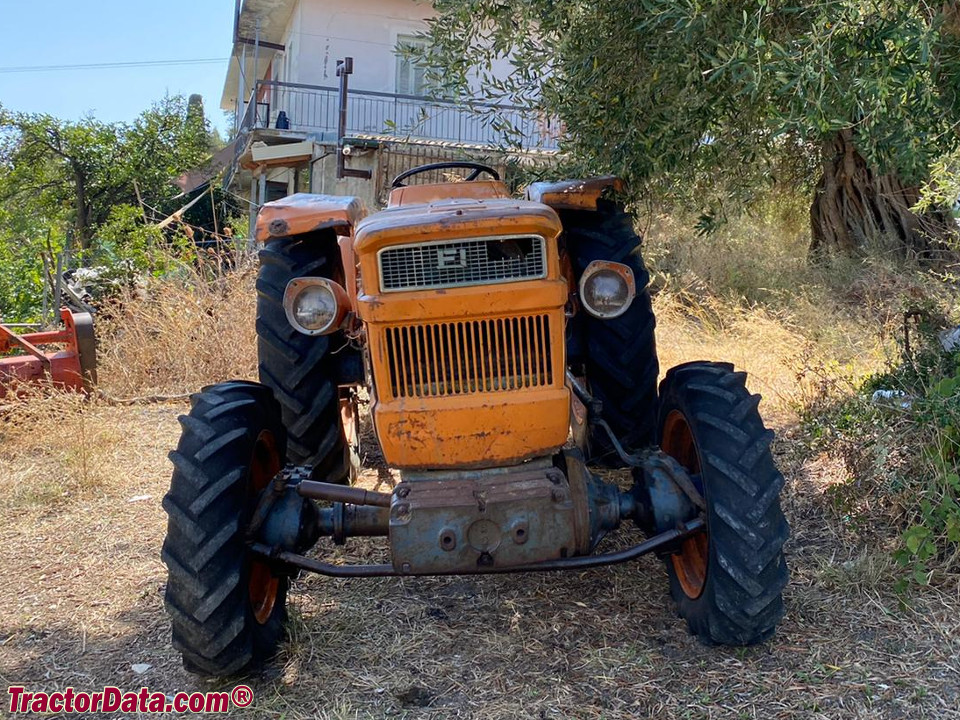

Fiat 615

Name: Fiat 615
Brand: Fiat

Fiat 615 · 54 hp. Reference specifications; pending source verification.

The Fiat 615 is a tractor model rated at 54 hp, positioning it at the lighter end of its class. It was produced from 1965 to 1968 and features a 4-cylinder diesel liquid-cooled engine, paired with four-wheel drive and a 7-speed gearbox. The operating weight of the Fiat 615 ranges from 5997 to 6967 pounds, and it is suitable for operations of up to 200 acres.

Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.

Rated power

54 hp

Weight

5997 to 6967 pounds

Catalogue coverage

Variants represented

Richest spec table

41 rows

Recorded power

54 hp

Recorded weight

2720 kg

Transmissions

7-speed gear

Production years

1965-1968

Verified variants

No linked source document is currently displayed; verify critical figures with the manufacturer or dealer.

Hover a source tag to verify

Overview

ManufacturerFiatReference

Two- or four-wheel driveReference

Disc brakesReference

Open operator station.Reference

Engine

Fiat 4.4L 4-cyl dieselReference

Fuel tank79.9 LReference

Engine49.2 kWReference

Fiat CO2DReference

dieselReference

4-cylinderReference

liquid-cooledReference

Displacement4.4 LReference

Bore/Stroke108 x 120 mmReference

Power49.2 kWReference

Fuel systemdirect injectionReference

Rated RPM1900Reference

Starter volts12Reference

Transmission

7-speed gearReference

TypegearReference

Gears7 forward and 2 reverseReference

PTO & Hydraulics

PTO (claimed)40.3 kWReference

Pump flow26.5 lpmReference

Rear TypeIIReference

Rear lift2000 kgReference

Rear PTO Type540 (1.375)Reference

Engine RPM540@1520Reference

Dimensions

Wheelbase216 cmReference

Weight5997 to 6967 poundsReference

Front tire6.50-20Reference

Rear tire13.6-36Reference

Ag front6.50-20Reference

Ag front9.5-24 (4WD)Reference

Ag rear13.6-36Reference

Length350 cmReference

Width195 cmReference

Height148 cmReference

2WD Weight2720 kgReference

4WD Weight3160 kgReference

Ground clearance46 cmReference

Front tread143 to 210 cmReference

Rear tread147 to 195 cmReference

Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
