Tractor · 1973Unverified

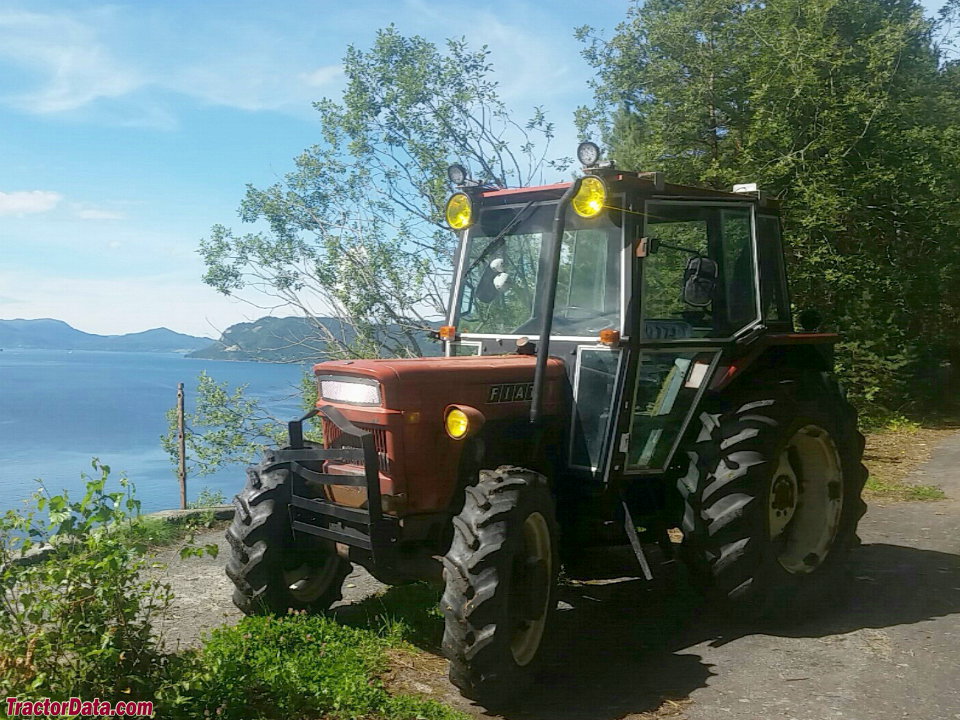

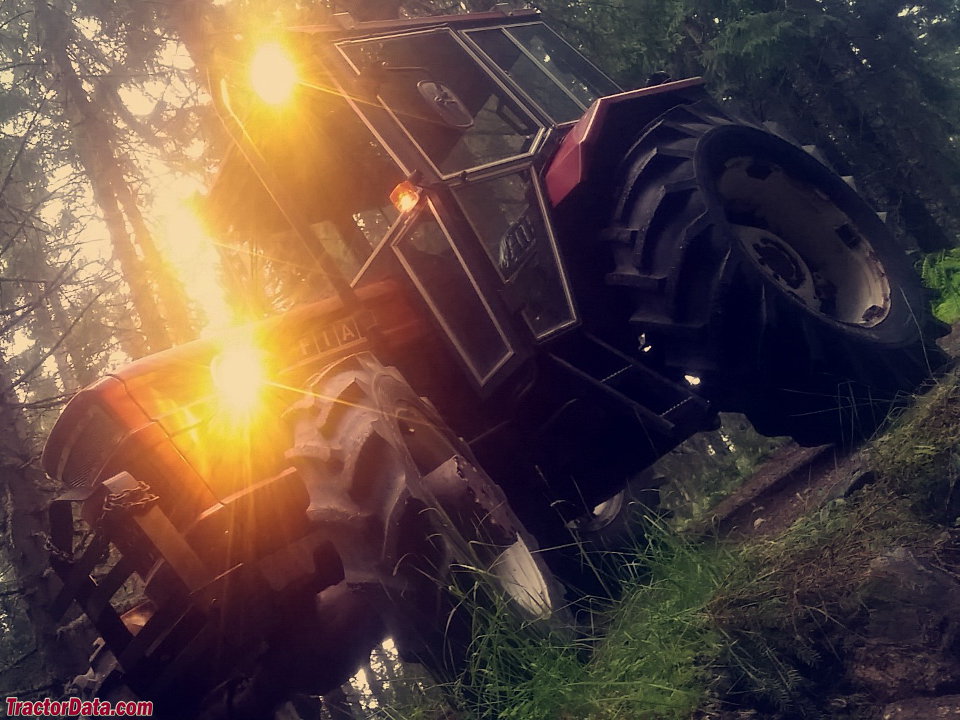

Fiat 640
Fiat 640 — Utility tractor · 62 hp. Reference specifications; pending source verification.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
62 hp
Weight
4961 to 6174 pounds
Hover a source tag to verify
Overview
ManufacturerFiatReference
Utility tractorReference
Built in Moderna, ItalyReference
Two- or four-wheel driveReference
Manual steeringReference
Four-post ROPS.Reference
Variants
6402WDReference
640DT4WDReference
Engine
Fiat 3.5L 4-cyl dieselReference
Fuel tank54.1 LReference
Engine47.7 kWReference
Fiat 8045-02Reference
dieselReference
4-cylinderReference
liquid-cooledReference
Displacement3.5 LReference
Bore/Stroke100 x 110 mmReference
Power47.7 kWReference
Fuel systemdirect injectionReference
Compression17:1Reference
Rated RPM2400Reference
Torque212.1 NmReference
Torque RPM1600Reference
StarterelectricReference
Starter volts12Reference
Transmission
8-speed gearReference
TypegearReference
Gears8 forward and 2 reverseReference
Four gears, plus reverse, in two ranges. Optional additional creeper range.Reference
PTO & Hydraulics
PTO (claimed)46.2 kWReference
Pump flow22.0 lpmReference
Rear TypeII/IReference
Rear lift (at ends)1850 kgReference
Rear PTO Type540Reference
Engine RPM540@1970Reference
Dimensions
2WD Wheelbase207 cmReference
4WD Wheelbase213 cmReference
Weight4961 to 6174 poundsReference
Front tire7.50-16Reference
2WD Rear tire14-30Reference
2WD Standard tires (ag)Front: 7.50-16. Rear: 14-30Reference
4WD Standard tires (ag)Front: 9.5x24. Rear: 16.9-30Reference
2WD Length317 cmReference
4WD Length336 cmReference
2WD Weight2250 kgReference
4WD Weight2800 kgReference
Front tread132 to 201 cmReference
Rear tread130 to 199 cmReference
Fiat 640 Height
2WD Hood142 cmReference
4WD Hood148 cmReference
ROPS268 cmReference
Speeds
With 16.9-30 rear tires.Reference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
