Tractor · 1984Unverified

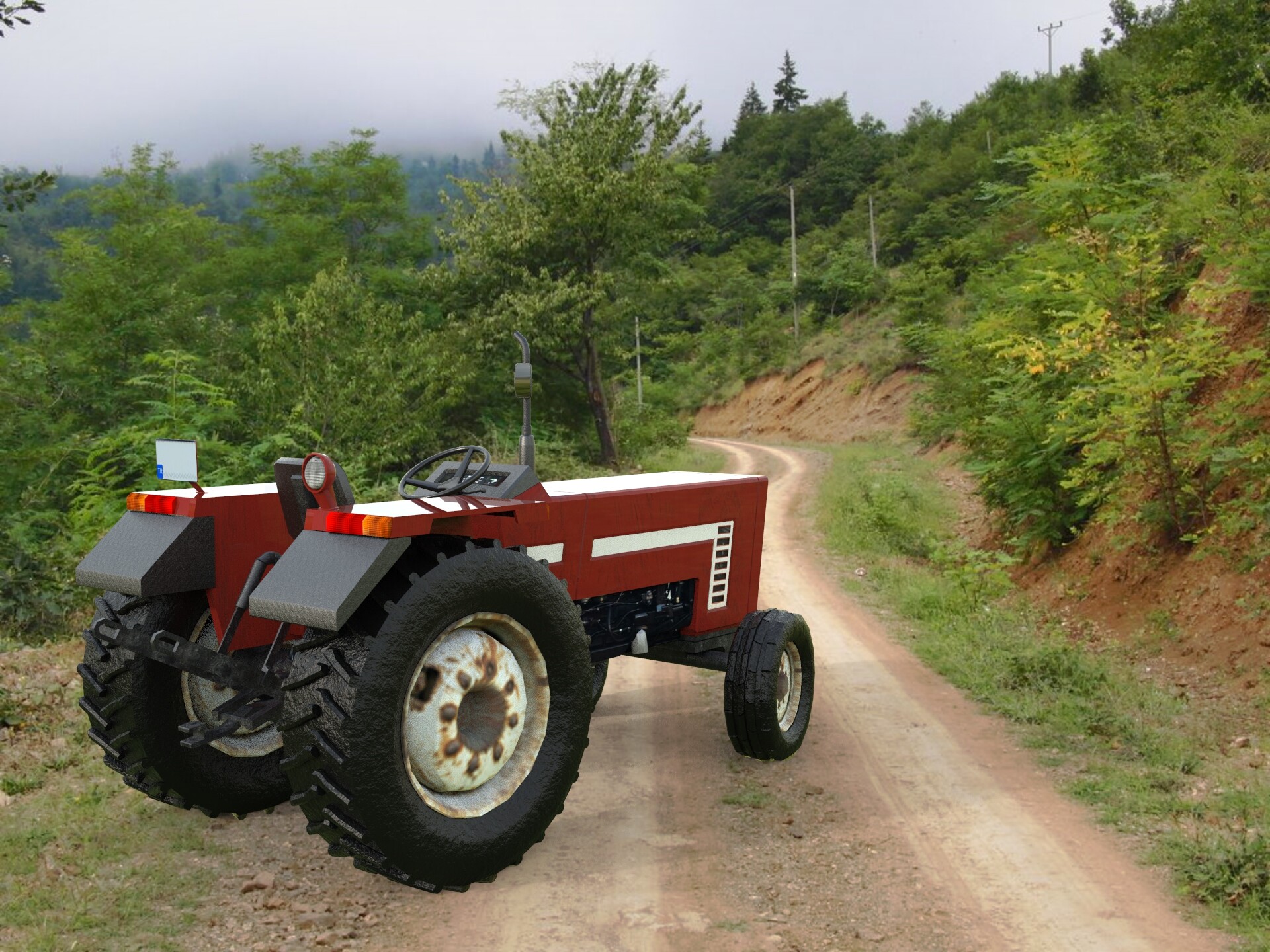

Fiat 65-46
Fiat 65-46 — 46 Series · 65 hp. Reference specifications; pending source verification.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
65 hp
Weight
4630 to 5181 pounds
Hover a source tag to verify
Overview
ManufacturerFiatReference
Utility tractorReference
Two- or four-wheel driveReference
Power steeringReference
Mechanical band brakesReference
Four-post ROPS. Cab available with heater.Reference
Variants
65-46DT4WDReference
Engine
Fiat 3.6L 4-cyl dieselReference
Engine48.5 kWReference
Fiat 8045.06Reference
dieselReference
4-cylinderReference
liquid-cooledReference
Displacement3.6 LReference
Bore/Stroke100 x 115 mmReference
Power48.5 kWReference
Compression17:1Reference
Rated RPM2500Reference
Firing order1-3-4-2Reference
StarterelectricReference
Starter volts12Reference
Transmission
8-speed partially synchronizedReference
12-speed creeperReference
Typepartially synchronizedReference
Gears8 forward and 2 reverseReference
Clutch279.4mm dry discReference
Four gears with high and low ranges provide eight forward speeds. Gears 3/4 are synchronized in both ranges.Reference
TypecreeperReference
Gears12 forward and 4 reverseReference
PTO & Hydraulics
Pressure190.0 barReference
Pump flow26.5 lpmReference
Rear TypeII/IReference
Rear lift (at ends)1940 kgReference
Rear lift (at 24"/610mm)1730 kgReference
Rear PTOindependentReference
Rear PTO Type540 (1.375)Reference
Dimensions
2WD Wheelbase220 cmReference
4WD Wheelbase216 cmReference
Weight4630 to 5181 poundsReference
Front tire7.50-16Reference
2WD Rear tire14.9/13-30Reference
2WD Standard tires (ag)Front: 7.50-16. Rear: 14.9/13-30Reference
4WD Standard tires (ag)Front: 9.5/9-24. Rear: 14.9/13-30Reference
2WD Optional tires (ag)Front: 7.50-16. Rear: 16.9/14-30Reference
2WD Optional tires (ag)Front: 7.50-19. Rear: 12.4/11-36Reference
4WD Optional tires (ag)Front: 11.2/10-24. Rear: 16.9/14-30Reference
4WD Optional tires (ag)Front: 11.2/10-24. Rear: 12.4/11-36Reference
2WD Length346 cmReference
4WD Length366 cmReference
2WD Ground clearance53 cmReference
4WD Ground clearance34 cmReference
2WD2100 kgReference
4WD2350 kgReference
2WD Ballasted2839 kgReference
4WD Ballasted3089 kgReference
65-46 Serial Numbers
Location:Serial number on the left side of the 55-46, behind the rear axle.Reference
Electrical
GroundnegativeReference
Battery volts12Reference
Fiat 65-46 Height
2WD Hood147 cmReference
4WD Hood139 cmReference
ROPS231 cmReference
2WD Exhaust239 cmReference
4WD Exhaust237 cmReference
Speeds
With 14.9/13-30 rear tires.Reference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
