Tractor · 1987Unverified

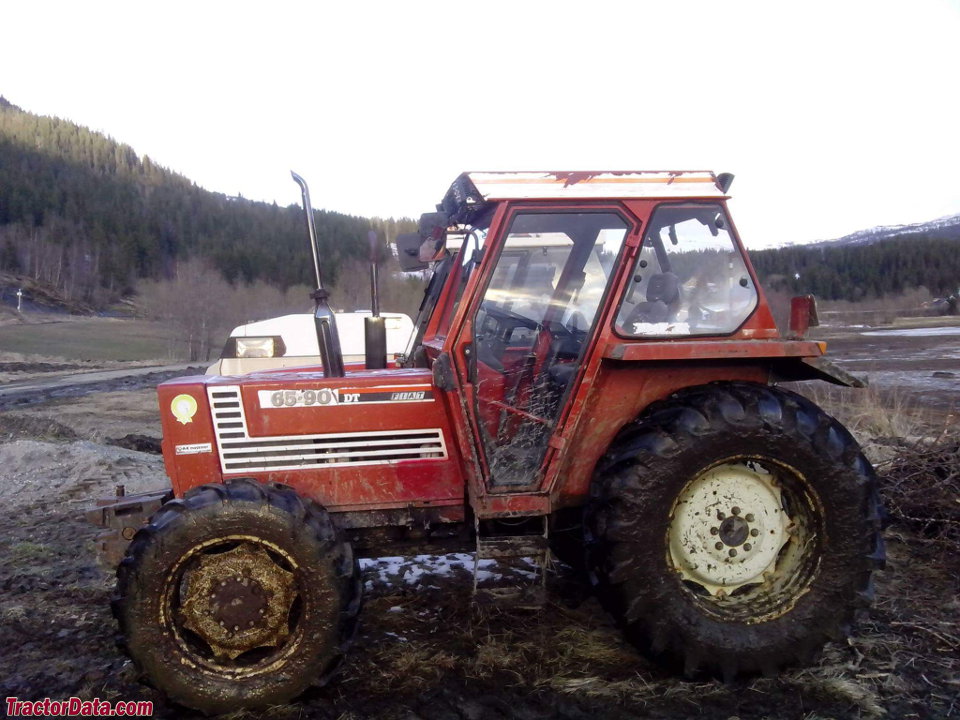

Fiat 65-90
Fiat 65-90 — 90 Series · 65 hp. Reference specifications; pending source verification.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
65 hp
Weight
6283 to 6812 pounds
Hover a source tag to verify
Overview
ManufacturerFiatReference
Utility tractorReference
Two- or four-wheel driveReference
Final drivesplanetaryReference
Differential lockhydraulic rearReference
Power steeringReference
Hydraulic wet disc brakesReference
Cab standard with heater.Reference
Variants
65-902WDReference
65-90DT4WDReference
Engine
Fiat 3.6L 4-cyl dieselReference
Fuel tank93.1 LReference
Engine48.5 kWReference
Fiat 8045.06Reference
dieselReference
4-cylinderReference
liquid-cooledReference
Displacement3.6 LReference
Bore/Stroke100 x 115 mmReference
Power48.5 kWReference
Fuel systemdirect injectionReference
Air cleaneroil bathReference
Rated RPM2500Reference
Starter typeelectricReference
Transmission
12-speedReference
12-speed shuttleReference
20-speed creeperReference
Gears12 forward and 4 reverseReference
Clutch280mm dry discReference
Four gears (1-4) in three ranges (low, medium, high) plus reverse range.Reference
TypeshuttleReference
Gears12 forward and reverseReference
Four gears (1-4) in three ranges (low, medium, high) with left-hand shuttle.Reference
TypecreeperReference
Gears20 forward and 8 reverseReference
Additional two forward and one reverse creeper ranges added to the basic transmission.Reference
PTO & Hydraulics
Pump flow33.7 lpmReference
Rear TypeII/IReference
Rear lift2899 kgReference
Rear PTOindependentReference
Clutch280mm dry discReference
Rear PTO Type540Reference
Rear PTO Type540/1000Reference
Engine RPM540@2200Reference
Engine RPM1000@2375Reference
Dimensions
2WD Wheelbase233 cmReference
4WD Wheelbase230 cmReference
Weight6283 to 6812 poundsReference
Front tire7.50-16Reference
2WD Rear tire16.9-30Reference
2WD Standard tires (ag)Front: 7.50-16. Rear: 16.9-30Reference
4WD Standard tires (ag)Front: 11.2-24. Rear: 16.9-30Reference
2WD Optional tires (ag)Front: 7.50-16. Rear: 13.6-36Reference
4WD Optional tires (ag)Front: 11.2-24. Rear: 13.6-36Reference
Length350 cmReference
2WD Height (cab)252 cmReference
4WD Height (cab)241 cmReference
2WD Weight2849 kgReference
4WD Weight3089 kgReference
2WD Front tread139 to 189 cmReference
4WD Front tread154 to 187 cmReference
Rear tread150 to 199 cmReference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
