Tractor · 1971Unverified

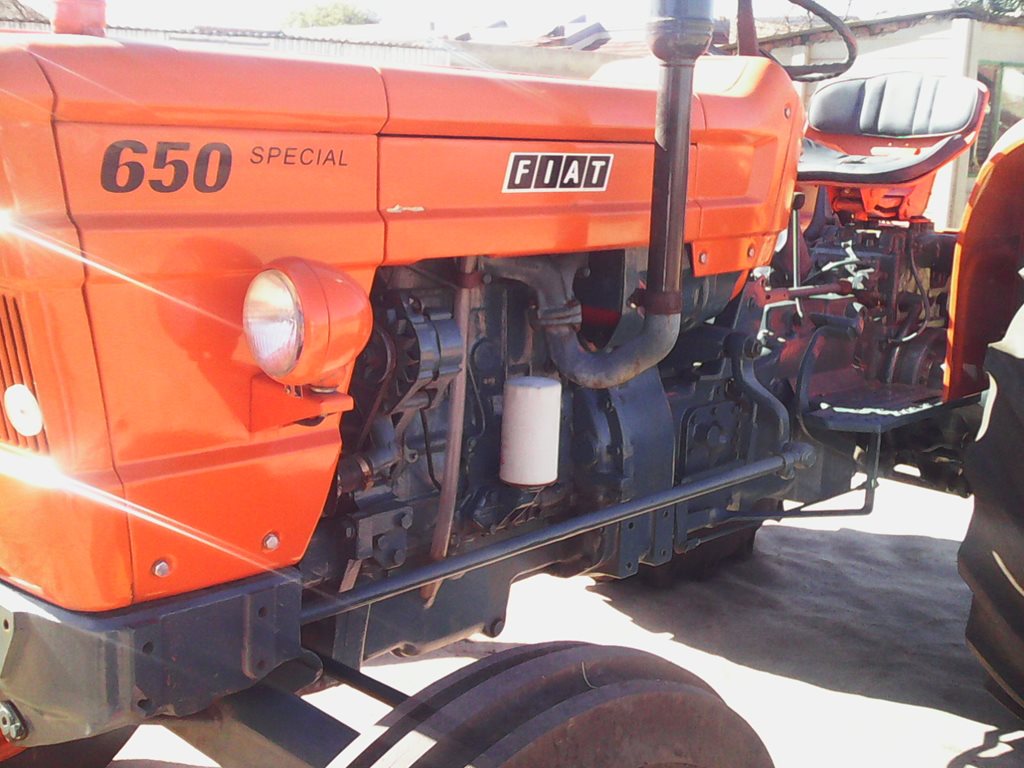

Fiat 650S Special
Fiat 650S Special — Utility tractor · 70 hp. Reference specifications; pending source verification.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
70 hp
Weight
6371 to 7165 pounds
Hover a source tag to verify
Overview
ManufacturerFiatReference
Utility tractorReference
Two- or four-wheel driveReference
SteeringmanualReference
SteeringpowerReference
Open operator station.Reference
Engine
Fiat 3.7L 3-cyl dieselReference
Fuel tank78.0 LReference
Engine52.2 kWReference
Fiat OM CN3Reference
dieselReference
3-cylinderReference
liquid-cooledReference
Displacement3.7 LReference
Bore/Stroke110 x 130 mmReference
Power52.2 kWReference
Compression17.4:1Reference
Rated RPM2200Reference
Starter volts12Reference
Transmission
7-speed partially synchronizedReference
14-speed creeperReference
Typepartially synchronizedReference
Gears7 forward and 2 reverseReference
TypecreeperReference
Gears14 forward and 4 reverseReference
PTO & Hydraulics
Typeopen centerReference
Pump flow23.5 lpmReference
Rear TypeIIReference
Controlposition and draft controlReference
Rear lift1995 kgReference
Rear PTOindependentReference
Rear PTO Type540/1000 (1.375)Reference
Engine RPM540@1830Reference
Engine RPM1000@1973Reference
Dimensions
4WD Wheelbase236 cmReference
Weight6371 to 7165 poundsReference
Front tire7.50-18Reference
2WD Rear tire13.6-36Reference
2WD Standard tires (ag)Front: 7.50-18. Rear: 13.6-36Reference
4WD Standard tires (ag)Front: 9.5/9-24. Rear: 16.9/14-30Reference
4WD Optional tires (ag)Front: 9.5/9-24. Rear: 13.6/12-36Reference
4WD. Rear: Optional tires (ag)Front: 11.2/10-24Reference
Length361 cmReference
4WD Height (steering wheel)177 cmReference
4WD Height (hood)160 cmReference
2WD Weight2889 kgReference
4WD Weight3250 kgReference
4WD Ground clearance42 cmReference
Electrical
GroundnegativeReference
Battery volts12Reference
Speeds
With 14.9/14-30 rear tires.Reference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
