Tractor · 1982Unverified

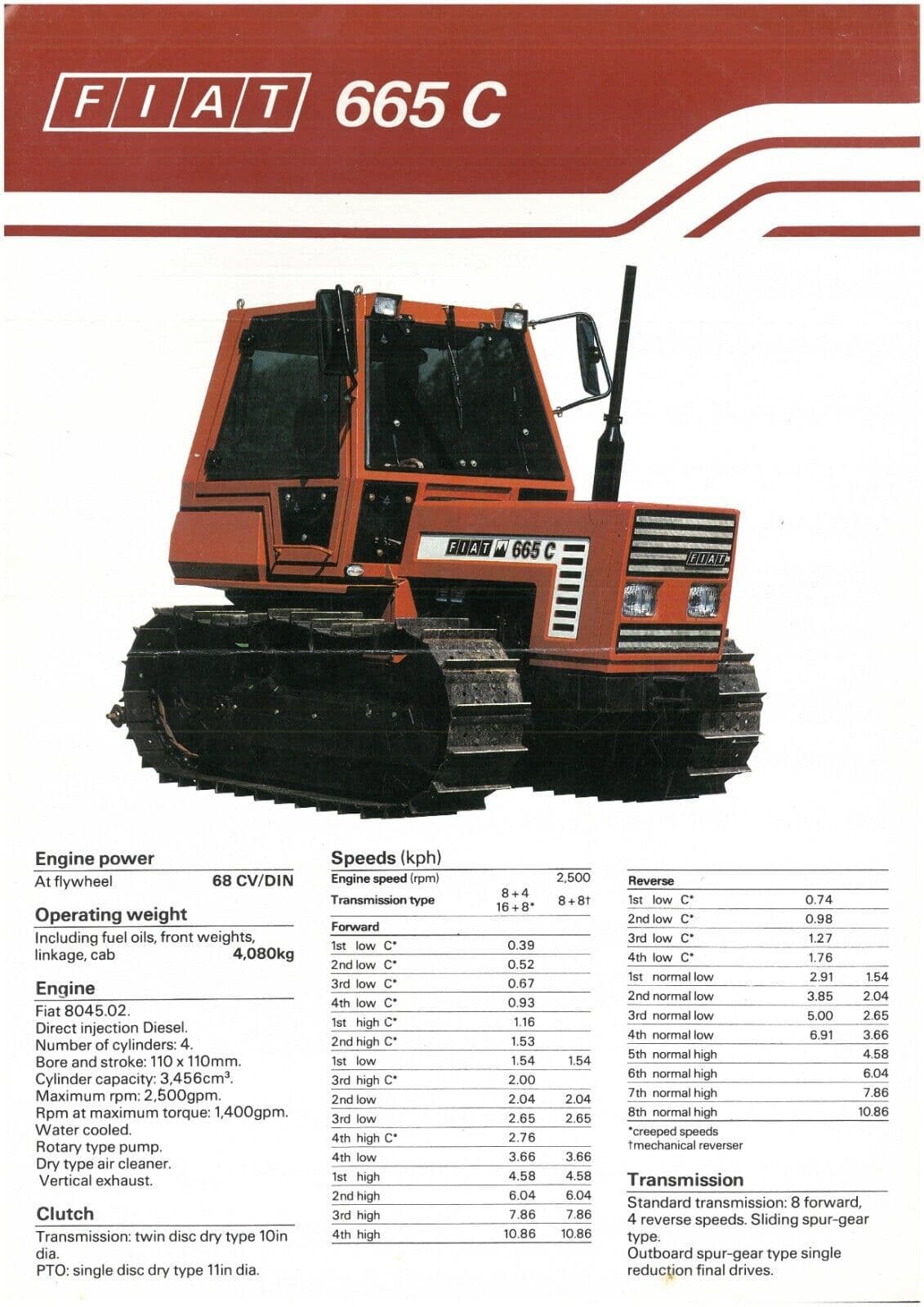

Fiat 665C
Fiat 665C — 65 Series · 66 hp. Reference specifications; pending source verification.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
66 hp
Weight
7529 to 7859 pounds
Hover a source tag to verify
Overview
ManufacturerFiatReference
Agricultural Crawler tractorReference
DrivecrawlerReference
Final drivesspur gearReference
Band brakesReference
Two-post ROPS with canopy.Reference
Variants
655C Mwide-gaugeReference
Engine
Fiat 3.5L 4-cyl dieselReference
Fuel tank75.7 LReference
Engine49.2 kWReference
Fiat 8045.2Reference
dieselReference
4-cylinderReference
liquid-cooledReference
Displacement3.5 LReference
Bore/Stroke100 x 110 mmReference
Power49.2 kWReference
Fuel systemdirect injectionReference
Air cleanerdryReference
Pre-heatingthermostartReference
Rated RPM2500Reference
StarterelectricReference
Starter volts12Reference
Transmission
8-speed gearReference
8-speedReference
16-speedReference
TypegearReference
Gears8 forward and 4 reverseReference
Clutch279.4mm dry discReference
Gears8 forward and reverseReference
Gears16 forward and 8 reverseReference
PTO & Hydraulics
Typeopen centerReference
Pressure169.6 barReference
Rear valves1 to 3Reference
Pump flow34.1 lpmReference
Rear TypeIIReference
Controlposition and draft controlReference
Rear PTOindependentReference
Rear PTO Type540 (1.375)Reference
Engine RPM540@2197Reference
Dimensions
Weight7529 to 7859 poundsReference
12.2-inch tracksReference
Length320 cmReference
Length355 cmReference
Width140 cmReference
Width165 cmReference
Height (hood)119 cmReference
Height (exhaust)219 cmReference
Operating weight3415 kgReference
Operating weight3564 kgReference
Ground clearance26 cmReference
Gauge130 cmReference
Electrical
Charging systemalternatorReference
Charging amps33Reference
Battery volts12Reference
Fiat 665C Tracks
Width30 cmReference
Length on ground154 cmReference
Area on ground1.0 m²Reference
Ground pressure0.3 barReference
Width35 cmReference
Area on ground1.1 m²Reference
Ground pressure0.3 barReference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
