Tractor · 1985Unverified

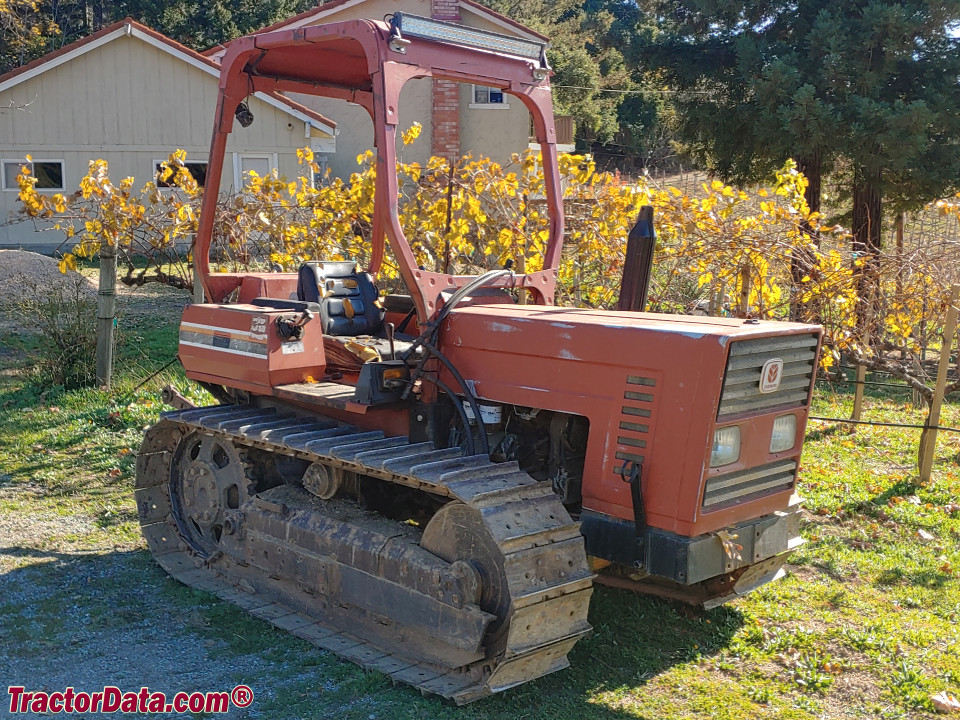

Fiat 70-65
Fiat 70-65 — 65 Series · 70 hp. Reference specifications; pending source verification.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
70 hp
Weight
3700 kg
Hover a source tag to verify
Overview
ManufacturerFiatReference
Agricultural Crawler tractorReference
DrivecrawlerReference
Engine
Fiat 3.6L 4-cyl dieselReference
Engine52.2 kWReference
Fiat 8045.06Reference
dieselReference
4-cylinderReference
liquid-cooledReference
Displacement3.6 LReference
Bore/Stroke100 x 115 mmReference
Power52.2 kWReference
Rated RPM2500Reference
StarterelectricReference
Starter volts12Reference
Transmission
8-speedReference
16-speedReference
Gears8 forward and 4 reverseReference
Gears8 forward and reverseReference
Gears16 forward and 8 reverseReference
PTO & Hydraulics
Rear TypeII/IReference
Dimensions
Wheelbase158 cmReference
Weight3700 kgReference
12.2-inch tracksReference
Length320 cmReference
Width140 cmReference
Height (hood)119 cmReference
Height (ROPS)221 cmReference
Ground clearance26 cmReference
Gauge109 cmReference
Fiat 70-65 Tracks
Width30 cmReference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
