Tractor · 1984Unverified

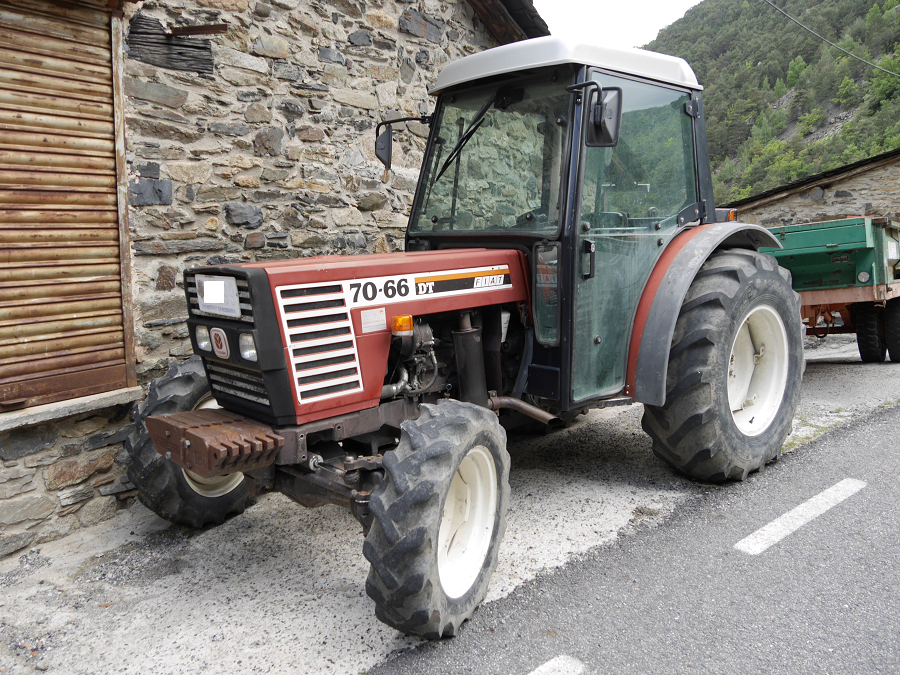

Fiat 70-66
Fiat 70-66 — 66 Series · 69 hp. Reference specifications; pending source verification.
The Fiat 70-66 is a tractor model with a rated output of 69 hp, positioning it centrally within its class in terms of power. It was manufactured between 1984 and 1991. The tractor features a 4-cylinder diesel liquid-cooled engine, which is coupled to a 12-speed gearbox and four-wheel drive system. Its listed weight is 3150 kg, making it suitable for tasks covering approximately 200 acres.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
69 hp
Weight
3150 kg
Catalogue coverage
Variants represented
2
Richest spec table
31 rows
Recorded power
69 hp
Recorded weight
3150 kg
Transmissions
12-speed
Production years
1984-1991
Verified variants
0
No linked source document is currently displayed; verify critical figures with the manufacturer or dealer.
Hover a source tag to verify
Overview
ManufacturerFiatReference
Utility tractorReference
Two- or four-wheel driveReference
Power steeringReference
Engine
Iveco 3.6L 4-cyl dieselReference
Fuel tank73.1 LReference
Engine51.5 kWReference
Iveco 8045.06Reference
dieselReference
4-cylinderReference
liquid-cooledReference
Displacement3.6 LReference
Bore/Stroke100 x 115 mmReference
Power51.5 kWReference
Rated RPM2500Reference
Torque224.0 NmReference
Torque RPM1400Reference
Transmission
12-speedReference
Gears12 forward and 4 reverseReference
PTO & Hydraulics
Pump flow33.6 lpmReference
Rear lift2900 kgReference
Rear PTO Type540/1000Reference
Dimensions
Wheelbase229 cmReference
Weight3150 kgReference
Front tire7.50-18Reference
Rear tire13.6-36Reference
Ag front7.50-18 (2WD)Reference
Ag front12.4-24 (4WD)Reference
Ag rear13.6-36Reference
Length401 cmReference
Height254 cmReference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
