Tractor · 1990Unverified

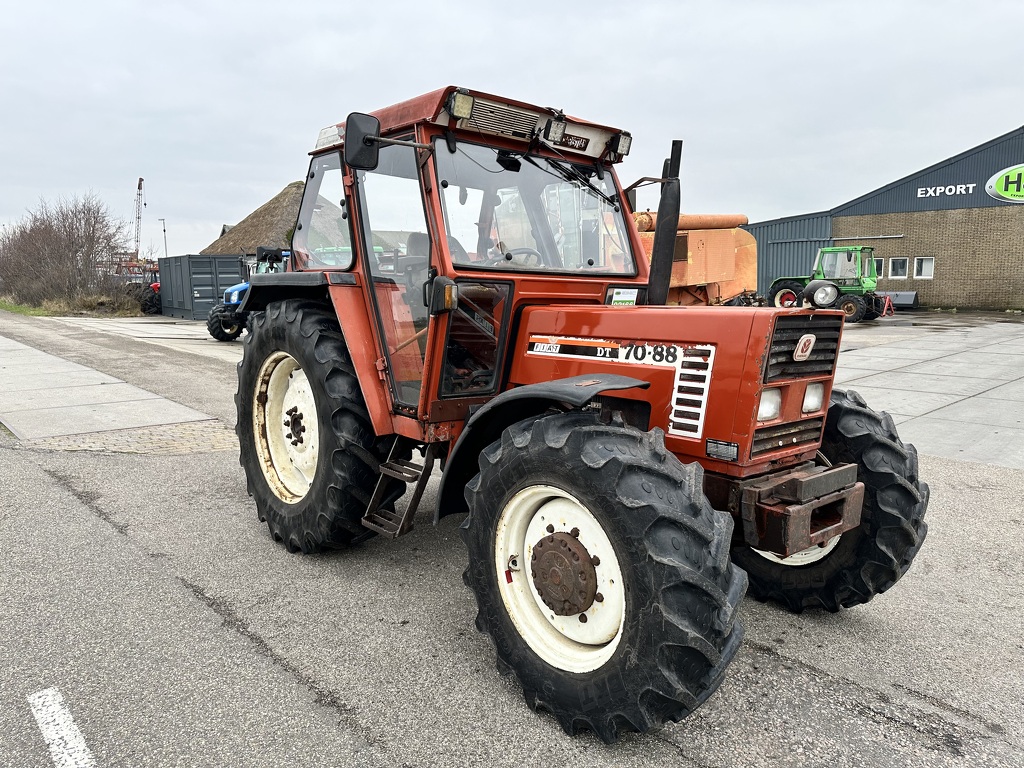

Fiat 70-88
Fiat 70-88 — 88 Series · 69 hp. Reference specifications; pending source verification.
The Fiat 70-88 is a tractor with an engine rating of 69 horsepower, placing it in the middle of its class for power output. It was manufactured between 1990 and 1995. The 70-88 features a 4-cylinder diesel liquid-cooled engine coupled to a 12-speed gearbox and four-wheel drive. Its listed weight ranges from 6614 to 7055 pounds, making it suitable for tasks covering up to 200 acres.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
69 hp
Weight
6614 to 7055 pounds
Catalogue coverage
Variants represented
2
Richest spec table
36 rows
Recorded power
69 hp
Recorded weight
3000 kg
Transmissions
12-speed
Production years
1990-1995
Verified variants
0
No linked source document is currently displayed; verify critical figures with the manufacturer or dealer.
Hover a source tag to verify
Overview
ManufacturerFiatReference
Utility tractorReference
Two- or four-wheel driveReference
Power steeringReference
Hydraulic wet disc brakesReference
Cab standard with heat.Reference
Engine
Fiat 3.6L 4-cyl dieselReference
Fuel tank93.1 LReference
Engine51.5 kWReference
Fiat 8045.06Reference
dieselReference
4-cylinderReference
liquid-cooledReference
Displacement3.6 LReference
Bore/Stroke100 x 115 mmReference
Power51.5 kWReference
Rated RPM2500Reference
Torque224.0 NmReference
Torque RPM1500Reference
StarterelectricReference
Starter volts12Reference
Transmission
12-speedReference
20-speed creeperReference
12-speed shuttleReference
Gears12 forward and 4 reverseReference
TypecreeperReference
Gears20 forward and 8 reverseReference
TypeshuttleReference
Gears12 forward and reverseReference
PTO & Hydraulics
Pump flow43.9 lpmReference
Rear TypeIIReference
Rear PTOindependentReference
Rear PTO Type540 (1.375)Reference
Dimensions
Weight6614 to 7055 poundsReference
2WD Weight3000 kgReference
4WD Weight3200 kgReference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
