Tractor · 1984Unverified

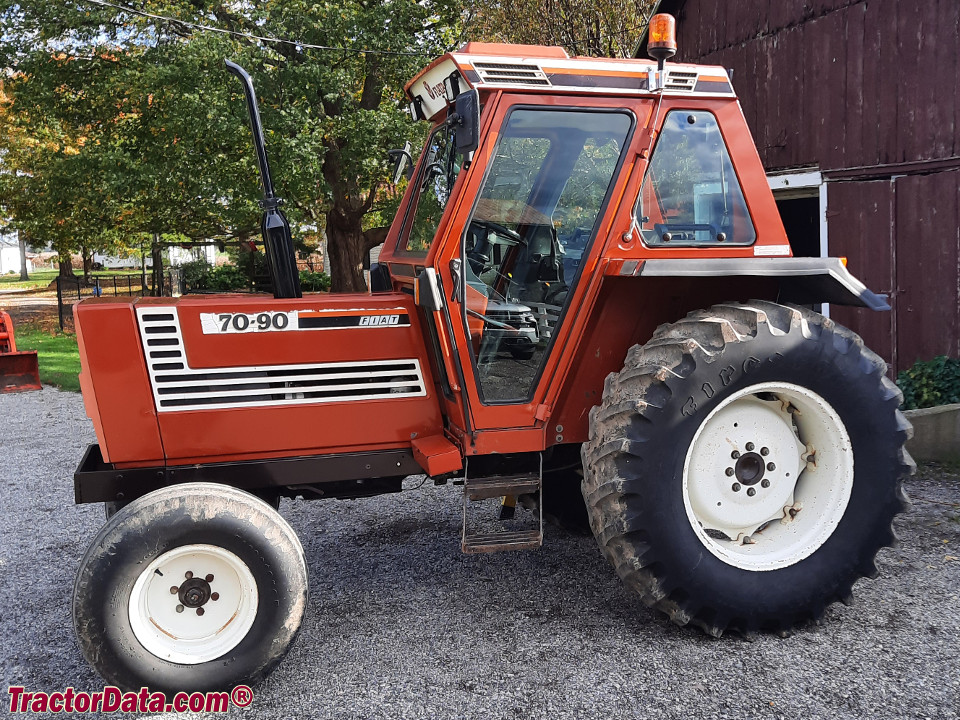

Fiat 70-90
Fiat 70-90 — 90 Series · 70 hp. Reference specifications; pending source verification.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
70 hp
Weight
6702 to 7341 pounds
Hover a source tag to verify
Overview
ManufacturerFiatReference
Utility tractorReference
Two- or four-wheel driveReference
Final drivesplanetaryReference
Differential lockhydraulic rearReference
Power steeringReference
Hydraulic wet disc brakesReference
Cab standard with heater.Reference
Variants
70-902WDReference
70-90DT4WDReference
Engine
Fiat 3.6L 4-cyl dieselReference
Fuel tank93.1 LReference
Engine52.2 kWReference
Fiat 8045.06Reference
dieselReference
4-cylinderReference
liquid-cooledReference
Displacement3.6 LReference
Bore/Stroke100 x 115 mmReference
Power52.2 kWReference
Fuel systemdirect injectionReference
Rated RPM2500Reference
Starter typeelectricReference
Transmission
12-speedReference
12-speed shuttleReference
20-speed creeperReference
24-speedReference
Gears12 forward and 4 reverseReference
TypeshuttleReference
Gears12 forward and reverseReference
TypecreeperReference
Gears20 forward and 12 reverseReference
TransmissionHi-LoReference
Gears24 forward and 12 reverseReference
Four gears (1-4) in three ranges (low, medium, high) with a two-speed high-low shift.Reference
PTO & Hydraulics
Pressure190.0 barReference
Pump flow34.4 lpmReference
Rear TypeII/IReference
Rear lift3499 kgReference
Rear PTOindependentReference
Clutch280mm dry discReference
Rear PTO Type540Reference
Rear PTO Type540/1000Reference
Engine RPM540@2200Reference
Engine RPM1000@2375Reference
Dimensions
Wheelbase233 cmReference
Weight6702 to 7341 poundsReference
Front tire7.50-18Reference
2WD Rear tire13.6-38Reference
2WD Standard tires (ag)Front: 7.50-18. Rear: 13.6-38Reference
4WD Standard tires (ag)Front: 11.2-28. Rear: 13.6-38Reference
Length358 cmReference
Height263 cmReference
2WD Weight3040 kgReference
4WD Weight3329 kgReference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
