Tractor · 1919Unverified

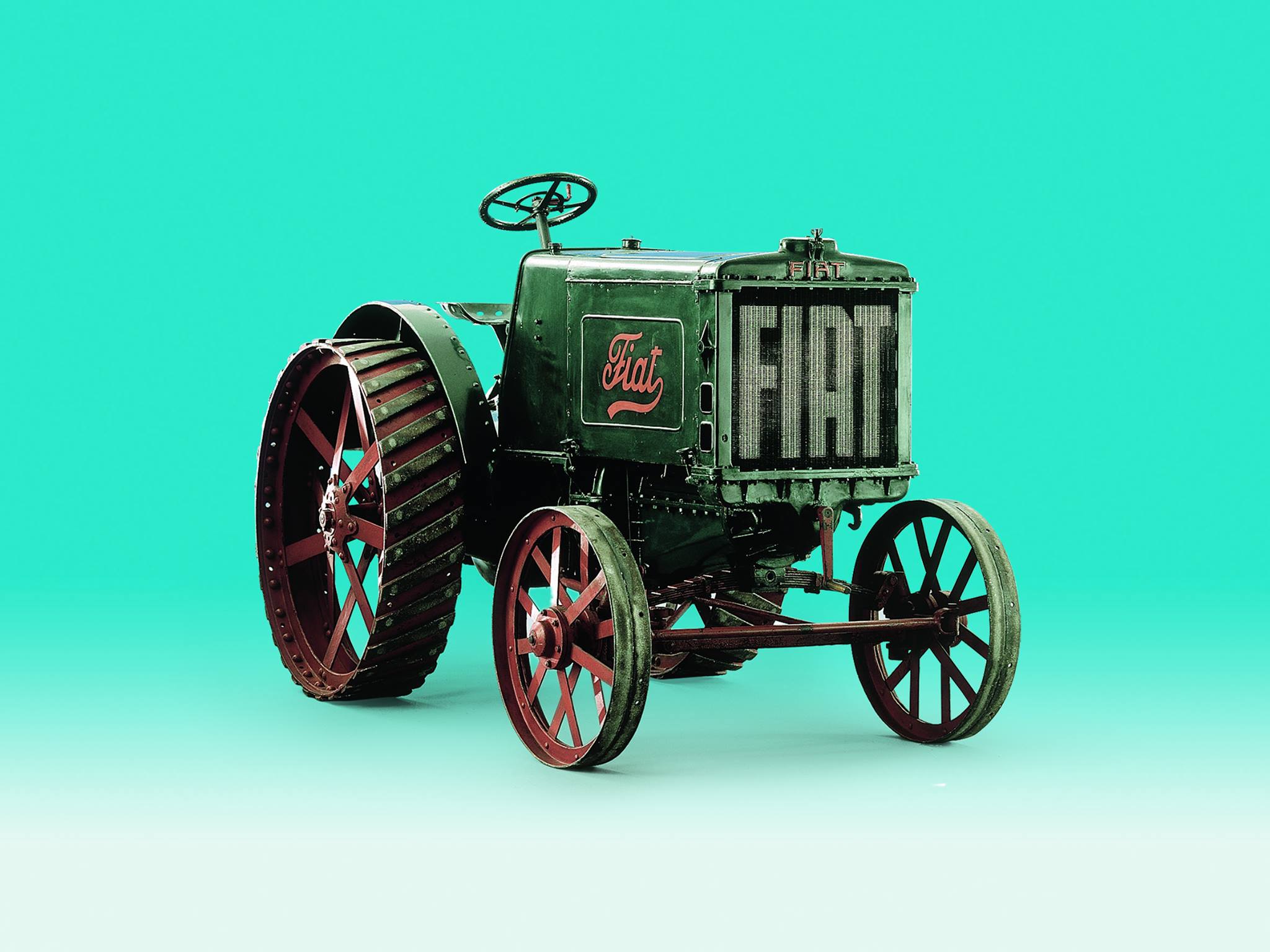

Fiat 702
Fiat 702 · 30 hp. Reference specifications; pending source verification.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
30 hp
Weight
2700 kg
Hover a source tag to verify
Overview
ManufacturerFiatReference
Two-wheel driveReference
Engine
FIAT 6.2L 4-cyl gasolineReference
Engine22.4 kWReference
Drawbar (claimed)13.4 kWReference
Belt (claimed)18.6 kWReference
FIATReference
gasolineReference
4-cylinderReference
Displacement6.2 LReference
Power22.4 kWReference
Rated RPM900Reference
Firing order1-3-4-2Reference
Transmission
3-speedReference
Gears3 forward and 1 reverseReference
Dimensions
Wheelbase134 cmReference
Weight2700 kgReference
Front tire5-32Reference
Rear tire12-51Reference
Ag front5-32Reference
Ag rear12-51Reference
Length320 cmReference
Width165 cmReference
Height190 cmReference
Ground clearance38 cmReference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
