Tractor · 1967Unverified

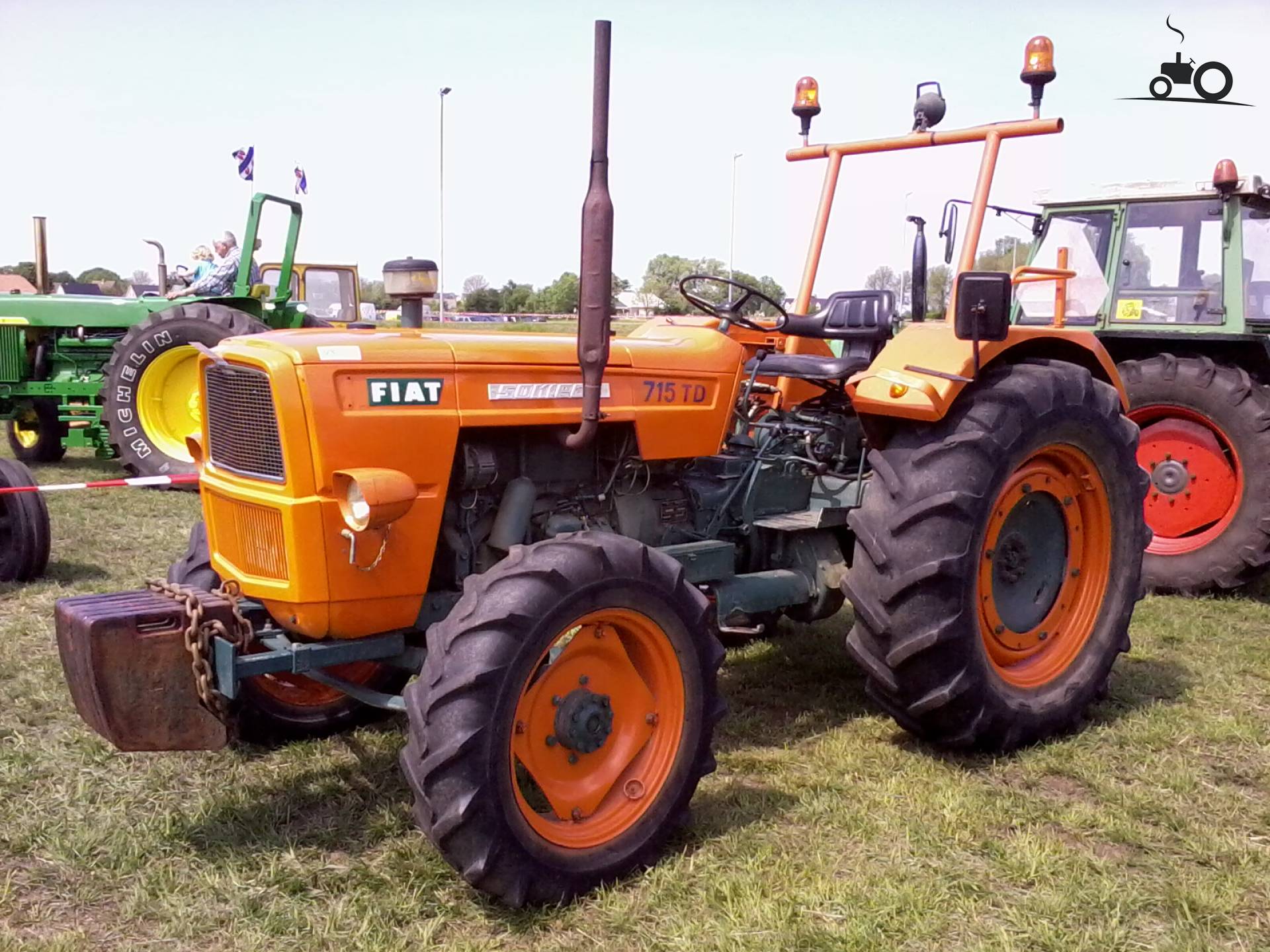

Fiat 715
Fiat 715 — Utility tractor · 70 hp. Reference specifications; pending source verification.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
70 hp
Weight
6393 to 7319 pounds
Hover a source tag to verify
Overview
ManufacturerFiatReference
Utility tractorReference
Two- or four-wheel driveReference
Disc brakesReference
Open operator station.Reference
Engine
Fiat 4.4L 4-cyl dieselReference
Engine52.2 kWReference
FiatReference
dieselReference
4-cylinderReference
liquid-cooledReference
Displacement4.4 LReference
Bore/Stroke108 x 120 mmReference
Power52.2 kWReference
Fuel systemdirect injectionReference
Rated RPM1900Reference
Transmission
14-speedReference
TransmissionAmplicoupleReference
Gears14 forward and 4 reverseReference
Seven gears forward, and two reverse, with two-speed power shift.Reference
PTO & Hydraulics
Rear TypeIIReference
Rear lift1999 kgReference
Rear PTO Type540 (1.375)Reference
Rear PTO Type1000 (1.375)Reference
Dimensions
2WD Wheelbase219 cmReference
4WD Wheelbase208 cmReference
Weight6393 to 7319 poundsReference
Front tire6.50-20Reference
2WD Rear tire14-30Reference
2WD Standard tires (ag)Front: 6.50-20. Rear: 14-30Reference
4WD Standard tires (ag)Front: 10-24. Rear: 14-34Reference
Length379 cmReference
Ground clearance46 cmReference
2WD Front tread139 to 215 cmReference
4WD Front tread169 cmReference
Rear tread139 to 199 cmReference
2WD2899 kgReference
4WD3319 kgReference
Ballasted3427 kgReference
Fiat 715 Height
2WD Hood152 cmReference
4WD Hood156 cmReference
Exhaust225 cmReference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
