Tractor · 1971Unverified

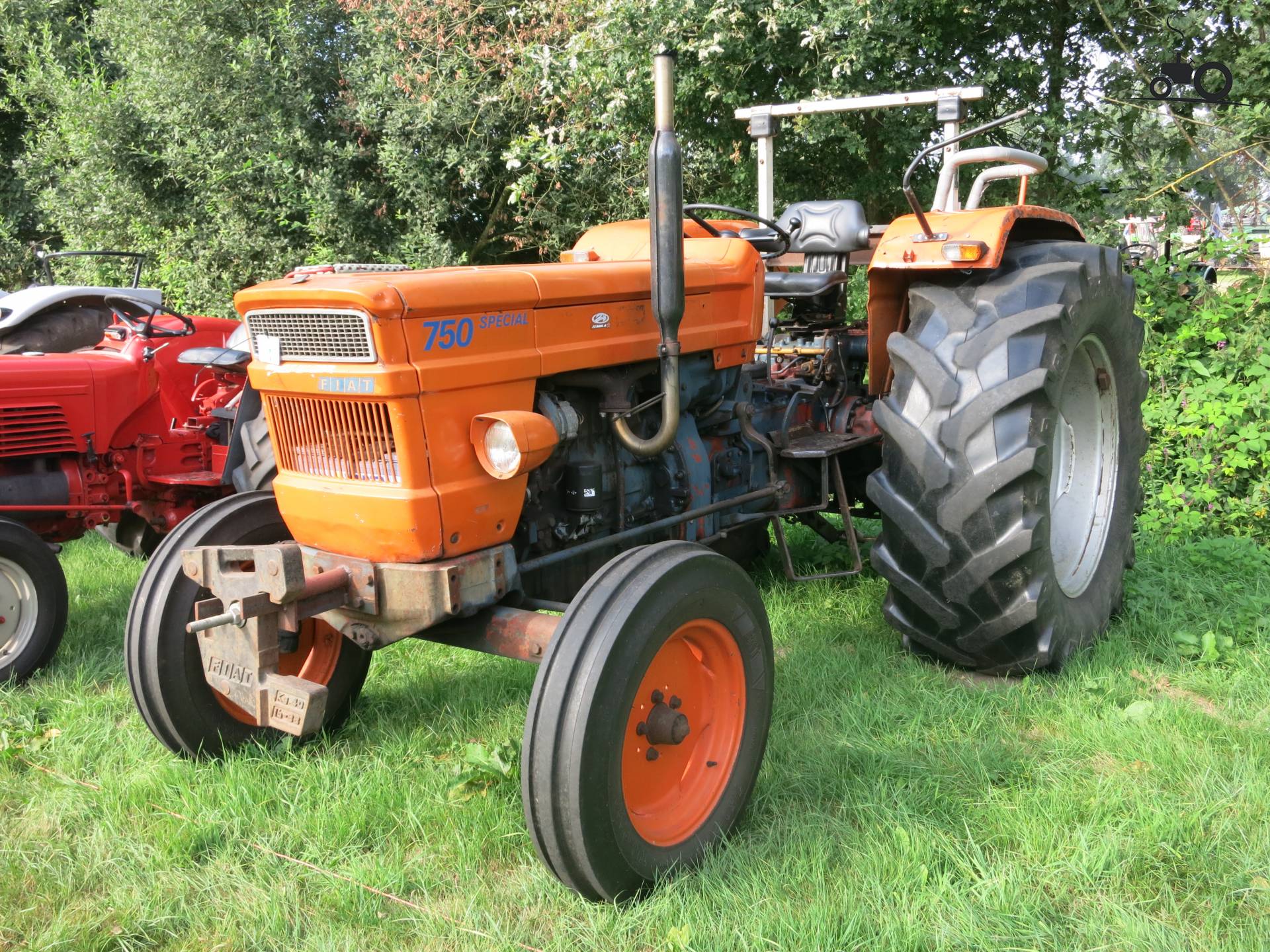

Fiat 750S Special
Fiat 750S Special — Utility tractor · 80 hp. Reference specifications; pending source verification.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
80 hp
Weight
6724 to 7429 pounds
Hover a source tag to verify
Overview
ManufacturerFiatReference
Utility tractorReference
Two- or four-wheel driveReference
Final drivesspur gearReference
Differential lockmechanical rearReference
SteeringmanualReference
SteeringpowerReference
Disc brakesReference
Open operator station.Reference
Engine
Fiat 4.6L 4-cyl dieselReference
Fuel tank78.0 LReference
Engine59.7 kWReference
Fiat CO 3/70Reference
dieselReference
4-cylinderReference
liquid-cooledReference
Displacement4.6 LReference
Bore/Stroke110 x 120 mmReference
Power59.7 kWReference
Fuel systemdirect injectionReference
Compression157:1Reference
Rated RPM2100Reference
Starter volts12Reference
Transmission
7-speed partially synchronizedReference
14-speed creeperReference
Typepartially synchronizedReference
Gears7 forward and 2 reverseReference
TypecreeperReference
Gears14 forward and 4 reverseReference
PTO & Hydraulics
Typeopen centerReference
Pump flow27.3 lpmReference
Rear TypeIIReference
Controlposition and draft controlReference
Rear lift1995 kgReference
Rear PTOindependentReference
Rear PTO Type540/1000 (1.375)Reference
Engine RPM540@1830Reference
Engine RPM1000@1973Reference
Dimensions
2WD Wheelbase229 cmReference
4WD Wheelbase251 cmReference
Weight6724 to 7429 poundsReference
Front tire6.50-20Reference
2WD Rear tire13.6/12-38Reference
2WD Standard tires (ag)Front: 6.50-20. Rear: 13.6/12-38Reference
4WD Standard tires (ag)Front: 11.2/10-24. Rear: 18.4/15-30Reference
4WD Optional tires (ag)Front: 9.5/9-24. Rear: 16.9/14-30Reference
4WD Optional tires (ag)Front: 11.2/10-24. Rear: 13.6/12-38Reference
4WD Optional tires (ag)Front: 11.2/10-24. Rear: 16.9/14-34Reference
2WD Ag front7.50-20Reference
2WD Ag rear16.9/14-30Reference
2WD Ag rear18.4-15-30Reference
2WD Ag rear13.6/12-36Reference
2WD Length347 cmReference
4WD Length381 cmReference
2WD Weight3050 kgReference
4WD Weight3369 kgReference
Ground clearance51 cmReference
2WD Front tread144 to 194 cmReference
4WD Front tread157/167 cmReference
Rear tread130 to 210 cmReference
2WD Steering wheel173 cmReference
4WD Steering wheel181 cmReference
Electrical
GroundnegativeReference
Charging systemalternatorReference
Battery volts12Reference
Fiat 750S Height
2WD Hood153 cmReference
4WD Hood162 cmReference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
