Tractor · 1984Unverified

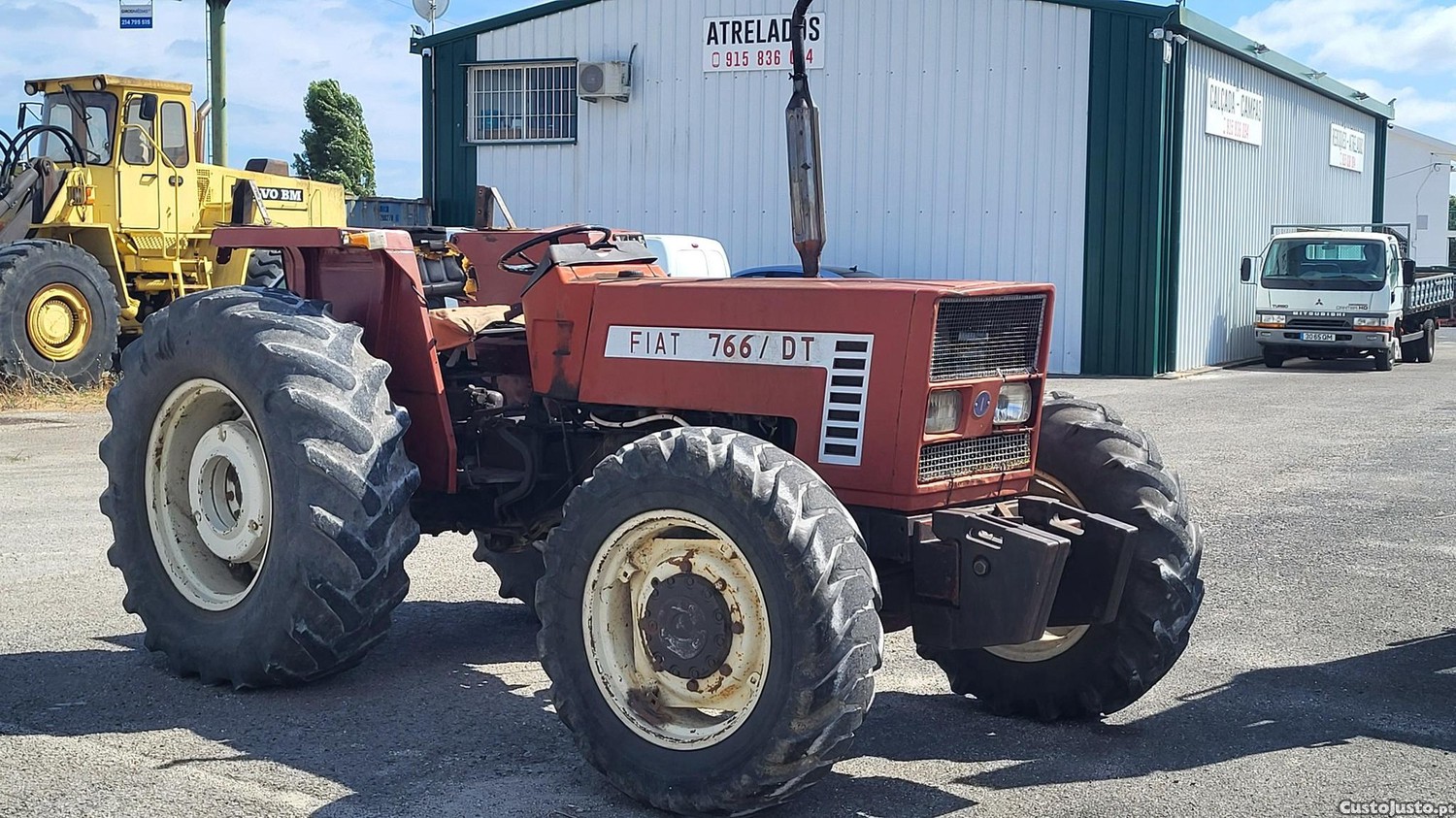

Fiat 766
Fiat 766 — 66 Series · 78 hp. Reference specifications; pending source verification.
The Fiat 766 is a tractor with a rated output of 78 hp, positioning it in the mid-range for power within its class. Produced from 1984 to 1986, this model is equipped with a 4-cylinder diesel liquid-cooled engine, which drives through four-wheel drive via a 12-speed gearbox. The listed weight of the tractor is 6700 to 7275 pounds, and it is capable of handling tasks on areas of up to 200 acres.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
78 hp
Weight
6700 to 7275 pounds
Catalogue coverage
Variants represented
2
Richest spec table
35 rows
Recorded power
78 hp
Recorded weight
3039 kg
Transmissions
12-speed
Production years
1984-1986
Verified variants
0
No linked source document is currently displayed; verify critical figures with the manufacturer or dealer.
Hover a source tag to verify
Overview
ManufacturerFiatReference
Utility tractorReference
Two- or four-wheel driveReference
Power steering ((Four-wheel drive models.))Reference
Wet disc brakesReference
Cab standard.Reference
Variants
7662WDReference
766DT4WDReference
Engine
Fiat 3.7L 4-cyl dieselReference
Fuel tank72.7 LReference
Engine58.2 kWReference
Fiat 8045Reference
dieselReference
4-cylinderReference
liquid-cooledReference
Displacement3.7 LReference
Bore/Stroke103 x 110 mmReference
Power58.2 kWReference
Rated RPM2440Reference
StarterelectricReference
Starter volts12Reference
Transmission
12-speedReference
Gears12 forward and 4 reverseReference
PTO & Hydraulics
Pump flow33.7 lpmReference
Rear TypeIIReference
Rear lift3580 kgReference
Rear PTO Type540/1000Reference
Dimensions
2WD Wheelbase230 cmReference
4WD Wheelbase225 cmReference
Weight6700 to 7275 poundsReference
Length393 cmReference
2WD Weight3039 kgReference
4WD Weight3299 kgReference
Electrical
GroundnegativeReference
Battery volts12Reference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
