Tractor · 1992Unverified

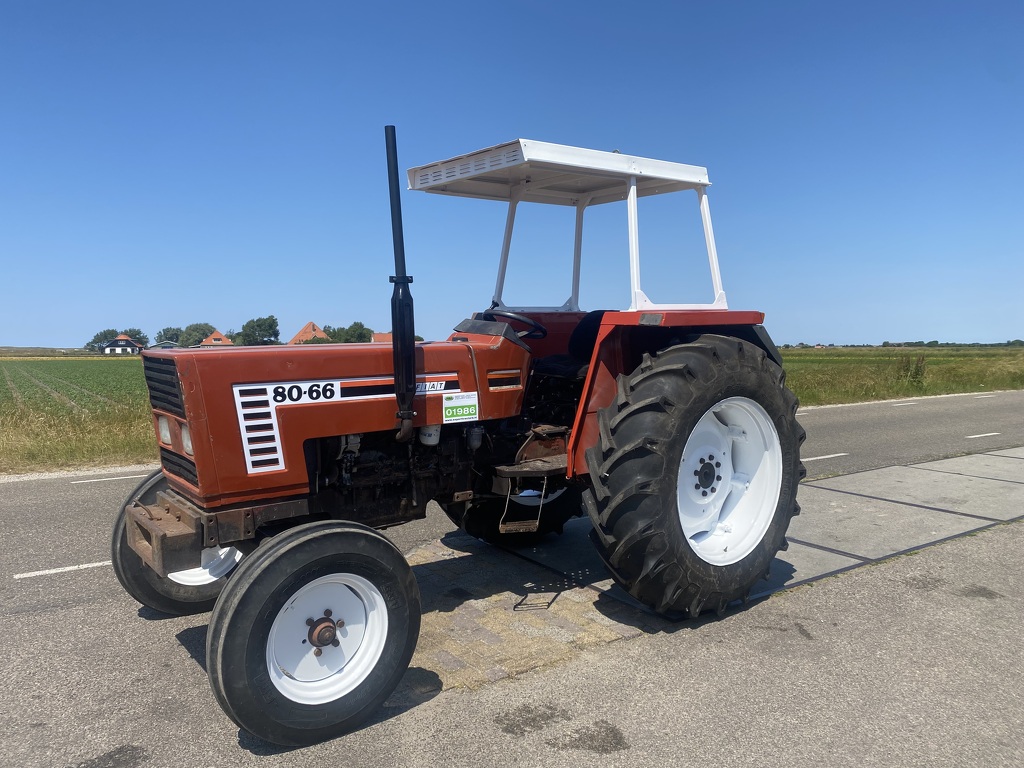

Fiat 80-66S
Fiat 80-66S — 66S Series · 79 hp. Reference specifications; pending source verification.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
79 hp
Weight
5798 to 6526 pounds
Hover a source tag to verify
Overview
ManufacturerFiatReference
Utility tractorReference
Two- or four-wheel driveReference
Power steeringReference
Wet disc brakesReference
Four-post ROPS. Cab optional.Reference
Engine
Iveco 3.6L 4-cyl dieselReference
Engine58.8 kWReference
Iveco 8045.06Reference
dieselReference
4-cylinderReference
liquid-cooledReference
Displacement3.6 LReference
Bore/Stroke100 x 115 mmReference
Power58.8 kWReference
Rated RPM2500Reference
StarterelectricReference
Starter volts12Reference
Transmission
12-speed gearReference
12-speed sync shuttleReference
20-speed creeperReference
TypegearReference
Gears12 forward and 4 reverseReference
Typesync shuttleReference
Gears12 forward and reverseReference
TypecreeperReference
Gears20 forward and 12 reverseReference
PTO & Hydraulics
Rear lift3564 kgReference
Rear PTO Type540 (1.375)Reference
Rear PTO Type540/750Reference
Rear PTO Type540/1000Reference
Dimensions
2WD Wheelbase230 cmReference
4WD Wheelbase224 cmReference
Weight5798 to 6526 poundsReference
Front tire7.50-18Reference
2WD Rear tire13.6/12-38Reference
2WD Standard tires (ag)Front: 7.50-18. Rear: 13.6/12-38Reference
4WD Standard tires (ag)Front: 11.2/10-28. Rear: 13.6/12-38Reference
2WD Length351 cmReference
4WD Length348 cmReference
2WD ROPS Weight2629 kgReference
4WD ROPS Weight2960 kgReference
2WD Ground clearance52 cmReference
4WD Ground clearance43 cmReference
2WD Front tread140 to 190 cmReference
4WD Front tread155 to 200 cmReference
Rear tread139 to 199 cmReference
2WD Steering wheel167 cmReference
4WD Steering wheel169 cmReference
Electrical
GroundnegativeReference
Battery volts12Reference
Fiat 80-66S Height
2WD Hood149 cmReference
4WD Hood151 cmReference
ROPS251 cmReference
Cab251 cmReference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
