Tractor · 1989Unverified

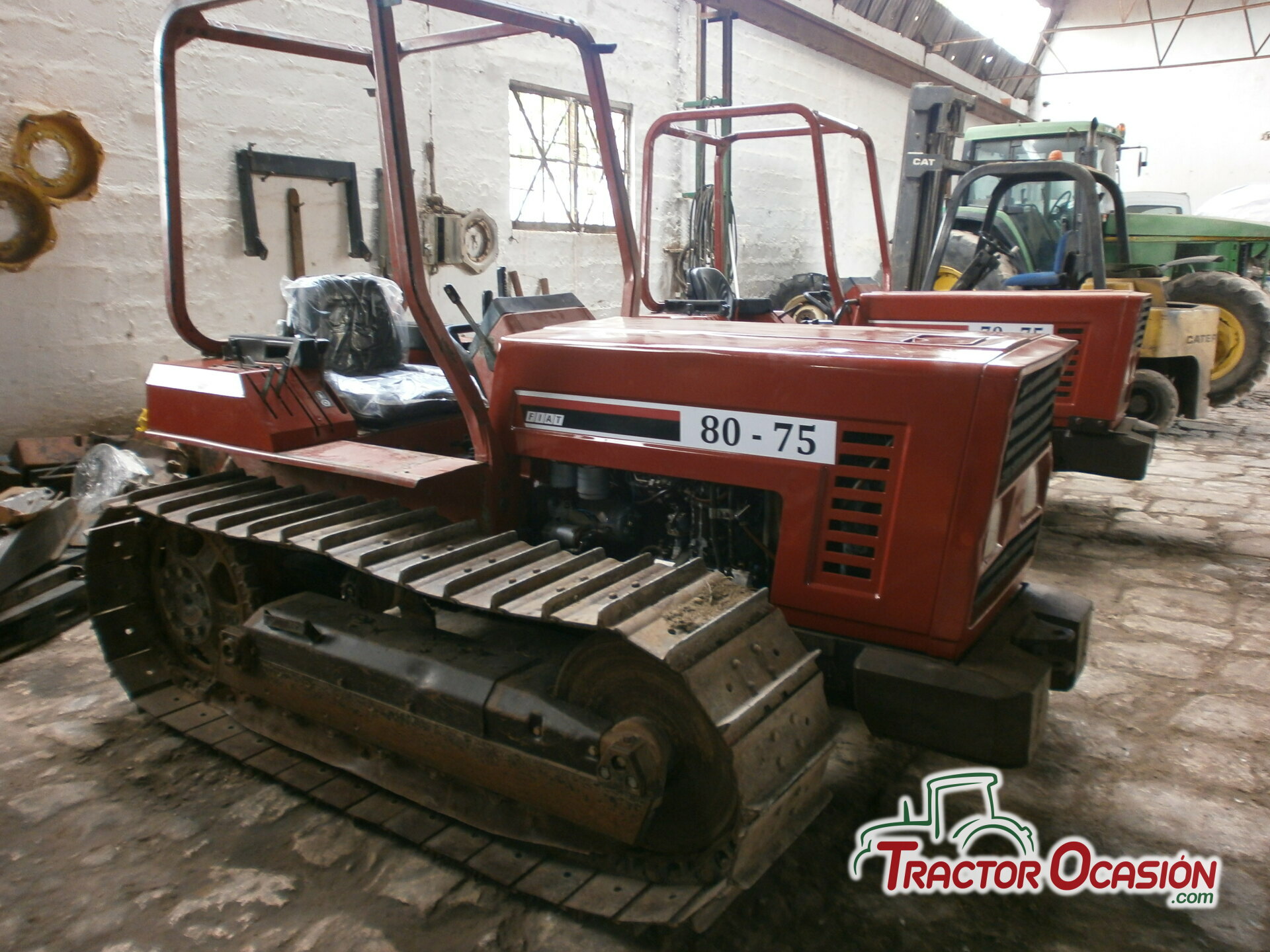

Fiat 80-75
Fiat 80-75 — 75 Series · 79 hp. Reference specifications; pending source verification.
The Fiat 80-75 is a tractor with a rated power of 79 hp, a mid-range figure for its class. This model was built from 1989 to 1992. Under the hood is a 4-cylinder diesel liquid-cooled engine, paired with a tracked undercarriage with a 8-speed gearbox. It has a listed operating weight of 3949 kg, and it suits operations of up to 200 ac. Available dimensions and performance figures follow in both unit systems.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
79 hp
Weight
3949 kg
Catalogue coverage
Variants represented
2
Richest spec table
32 rows
Recorded power
79 hp
Recorded weight
3949 kg
Transmissions
8-speed
Production years
1989-1992
Verified variants
0
No linked source document is currently displayed; verify critical figures with the manufacturer or dealer.
Hover a source tag to verify
Overview
ManufacturerFiatReference
Agricultural Crawler tractorReference
DrivecrawlerReference
Engine
Fiat 3.9L 4-cyl dieselReference
Engine58.8 kWReference
Fiat 8045.05Reference
dieselReference
4-cylinderReference
liquid-cooledReference
Displacement3.9 LReference
Bore/Stroke104 x 115 mmReference
Power58.8 kWReference
StarterelectricReference
Starter volts12Reference
Transmission
8-speedReference
16-speedReference
Gears8 forward and reverseReference
Gears16 forward and 8 reverseReference
PTO & Hydraulics
Rear TypeII/IReference
Rear lift3719 kgReference
Rear PTO Type540/1000Reference
Dimensions
Wheelbase165 cmReference
Weight3949 kgReference
15.75-inch tracksReference
Length320 cmReference
Width169 cmReference
Height (hood)119 cmReference
Height (ROPS)221 cmReference
Ground clearance26 cmReference
Gauge130 cmReference
Fiat 80-75 Tracks
Width40 cmReference
Width36 cmReference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
