Tractor · 1990Unverified

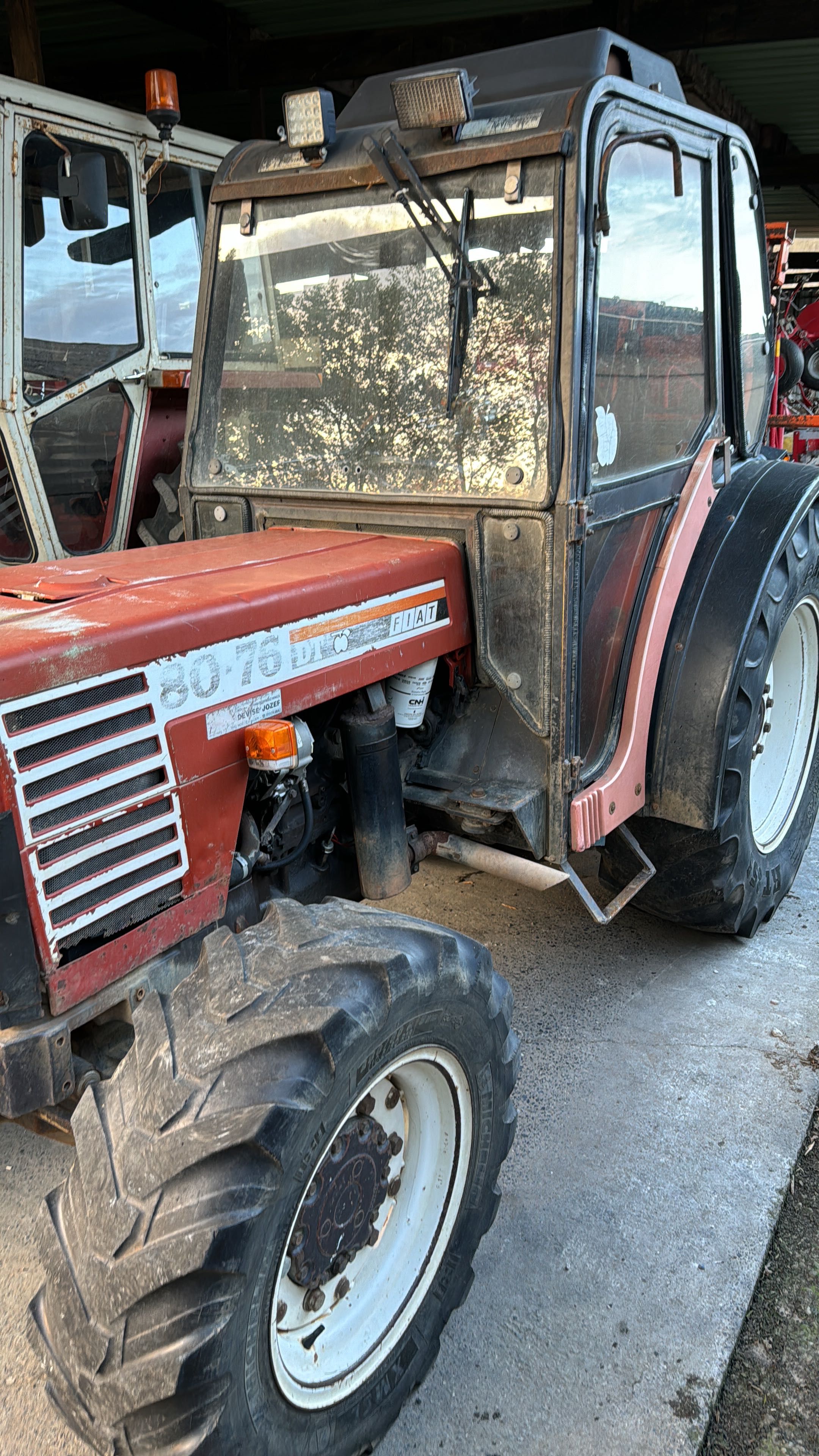

Fiat 80-76
Fiat 80-76 — 76 Series · 70 hp. Reference specifications; pending source verification.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
70 hp
Weight
4806 to 5269 pounds
Hover a source tag to verify
Overview
ManufacturerFiatReference
Orchard/Vineyard tractorReference
Original price was $25,200 in 1990Reference
Two- or four-wheel driveReference
Final drivesplanetaryReference
Differential lockmechanical rearReference
Power steeringReference
Wet disc brakesReference
Trailer brakeshydraulicReference
Two-post mid-mount ROPS.Reference
Engine
Fiat 3.9L 4-cyl dieselReference
Engine58.8 kWReference
Fiat 8045.05Reference
dieselReference
4-cylinderReference
liquid-cooledReference
Displacement3.9 LReference
Bore/Stroke104 x 115 mmReference
Power58.8 kWReference
Air cleanerdryReference
Compression17:1Reference
Rated RPM2500Reference
Firing order1-3-4-2Reference
StarterelectricReference
Starter volts12Reference
Intake valve clearance0.254 mmReference
Exhaust valve clearance0.356 mmReference
Transmission
12-speed partially synchronizedReference
12-speed mechanical shuttleReference
20-speed creeper shuttleReference
Typepartially synchronizedReference
Gears12 forward and 4 reverseReference
Clutch279.4mm dry discReference
Four synchronized gears (1-4) in three ranges (I-III) plus reverse range. Tractor must be stopped, and clutch used, to shift range.Reference
Typemechanical shuttleReference
Gears12 forward and reverseReference
Four synchronized gears (1-4) in three ranges (I-III) with mechanical reverser.Reference
Typecreeper shuttleReference
Gears20 forward and 12 reverseReference
Clutch254mm dry discReference
Four synchronized gears (1-4) in three ranges (I-III) with mechanical reverser and creeper. The shuttle-creeper lever is moved forward or back for direction control. Pushing the lever down and forward engages the creeper range.Reference
PTO & Hydraulics
PTO (claimed)52.2 kWReference
Typeopen centerReference
Pressure186.0 barReference
Pump flow32.9 lpmReference
Rear TypeII/IReference
Controlposition and lower-link draft controlReference
Rear PTOindependentReference
Rear PTO Type540 (1.375)Reference
Rear PTO Type540/1000 (1.375)Reference
Engine RPM540@2200Reference
Engine RPM1000@2380Reference
Dimensions
2WD Wheelbase200 cmReference
4WD Wheelbase211 cmReference
Weight4806 to 5269 poundsReference
Front tire5.50-16Reference
2WD Rear tire12.4-28Reference
2WD Standard tires (ag)Front: 5.50-16. Rear: 12.4-28Reference
4WD Standard tires (ag)Front: 7.50-18. Rear: 12.4/11-28Reference
2WD Length309 cmReference
4WD Length321 cmReference
2WD Ground clearance43 cmReference
4WD Ground clearance29 cmReference
2WD2180 kgReference
4WD2390 kgReference
2WD Ballasted2395 kgReference
4WD Ballasted2605 kgReference
2WD Steering wheel136 cmReference
4WD Steering wheel137 cmReference
80-76 Serial Numbers
Location:Serial number plate below the steering column.Reference
Electrical
GroundnegativeReference
Charging systemalternatorReference
Watts (rated)400Reference
Battery volts12Reference
Battery AH132Reference
Fiat 80-76 Height
2WD Hood122 cmReference
4WD Hood124 cmReference
2WD ROPS245 cmReference
4WD ROPS246 cmReference
Speeds
With 12.4-28 rear tires.Reference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
