Tractor · 1990Unverified

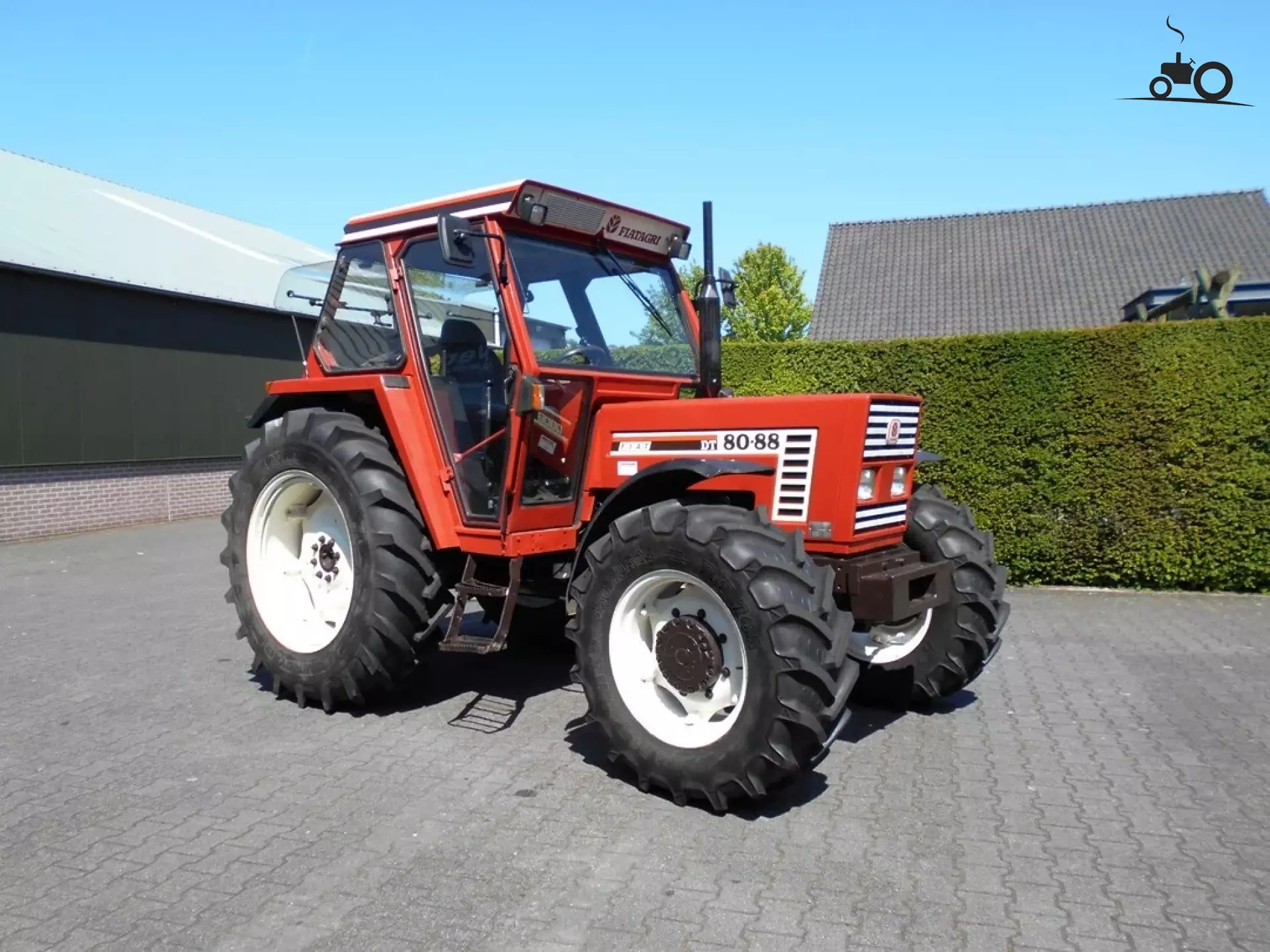

Fiat 80-88
Fiat 80-88 — 88 Series · 79 hp. Reference specifications; pending source verification.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
79 hp
Weight
3430 kg
Hover a source tag to verify
Overview
ManufacturerFiatReference
Utility tractorReference
Four-wheel driveReference
Power steeringReference
Hydraulic wet disc brakesReference
Cab standard with heat.Reference
Engine
Fiat 3.9L 4-cyl dieselReference
Fuel tank93.1 LReference
Engine58.8 kWReference
Fiat 8045.05Reference
dieselReference
4-cylinderReference
liquid-cooledReference
Displacement3.9 LReference
Bore/Stroke104 x 115 mmReference
Power58.8 kWReference
Rated RPM2500Reference
Torque267.0 NmReference
Torque RPM1400Reference
StarterelectricReference
Starter volts12Reference
Transmission
12-speedReference
20-speed creeperReference
12-speed shuttleReference
Gears12 forward and 4 reverseReference
TypecreeperReference
Gears20 forward and 8 reverseReference
TypeshuttleReference
Gears12 forward and reverseReference
PTO & Hydraulics
Pump flow43.9 lpmReference
Rear TypeIIReference
Rear PTOindependentReference
Rear PTO Type540 (1.375)Reference
Dimensions
Weight3430 kgReference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
