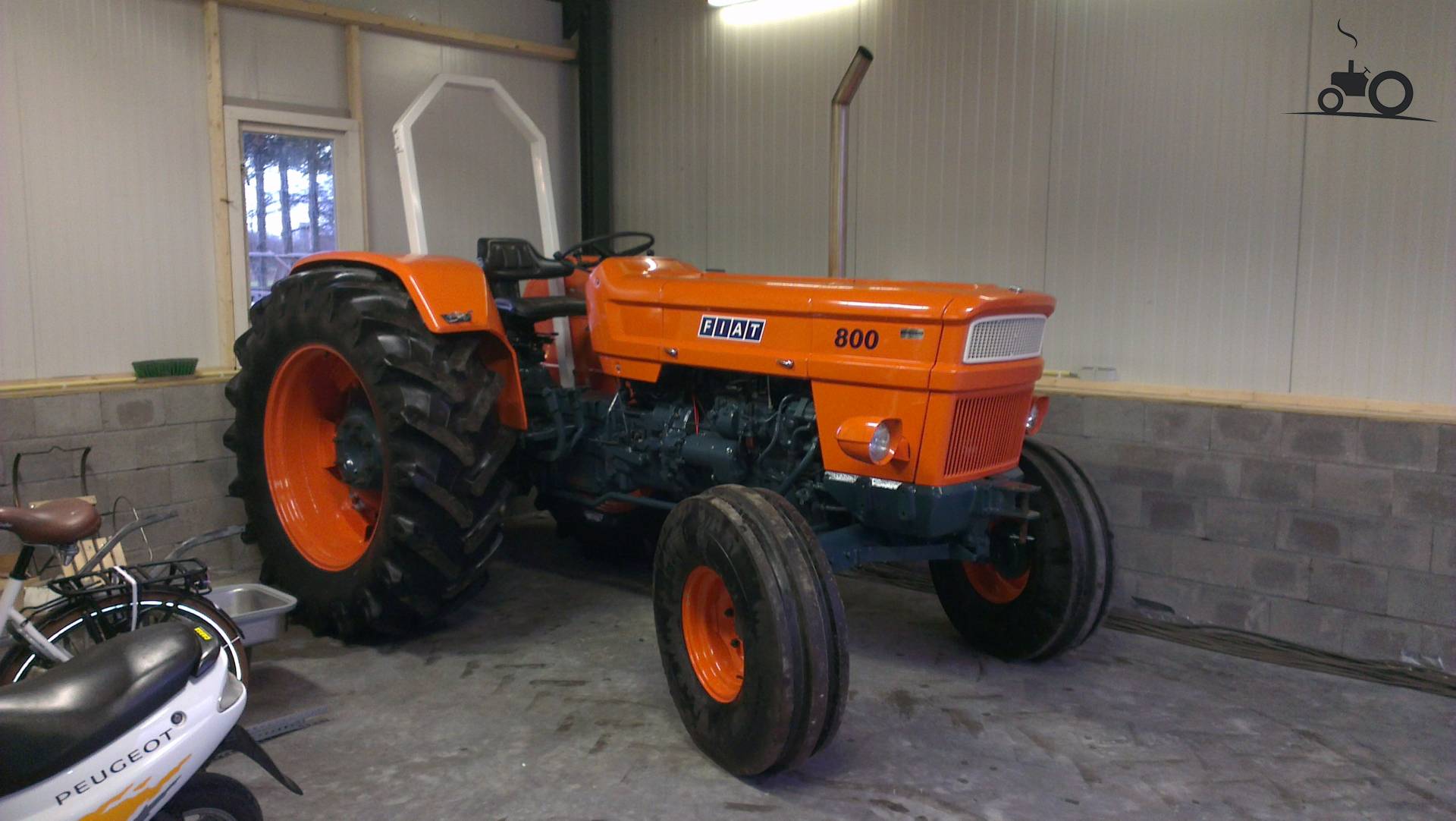

The Fiat 800 is a tractor model with a rated power output of 71 hp, a mid-range figure for its class. It is equipped with a 4-cylinder diesel liquid-cooled engine and features two-wheel drive with a 12-speed gearbox. The model has an operating weight of 2960 kg, and it is suitable for operations spanning up to 200 acres.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
71 hp
Weight
2960 kg
Catalogue coverage
Variants represented
2
Richest spec table
37 rows
Recorded power
71 hp
Recorded weight
2960 kg
Transmissions
12-speed
Verified variants
0
No linked source document is currently displayed; verify critical figures with the manufacturer or dealer.
Hover a source tag to verify
Overview
ManufacturerFiatReference
Utility tractorReference
Two-wheel driveReference
Wet disc brakesReference
Open operator station.Reference
Engine
Fiat 4.9L 4-cyl dieselReference
Fuel tank85.9 LReference
Engine59.7 kWReference
Fiat OM CO 3/80Reference
dieselReference
4-cylinderReference
liquid-cooledReference
Displacement4.9 LReference
Bore/Stroke110 x 130 mmReference
Power59.7 kWReference
Rated RPM2100Reference
StarterelectricReference
Starter volts12Reference
Transmission
12-speedReference
Gears12 forward and 4 reverseReference
Four gears in three ranges, plus reverse range.Reference
PTO & Hydraulics
PTO (claimed)52.9 kWReference
Rear TypeIIReference
Rear lift2249 kgReference
Rear PTOindependentReference
Rear PTO Type540Reference
Dimensions
Wheelbase235 cmReference
Weight2960 kgReference
Front tire7.50x20Reference
Rear tire12x38Reference
Ag front7.50x20Reference
Ag rear12x38Reference
Ag rear14x34Reference
Length405 cmReference
Width193 cmReference
Height (hood)151 cmReference
Speeds
With 12x38 rear tires.Reference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
