Tractor · 1974Unverified

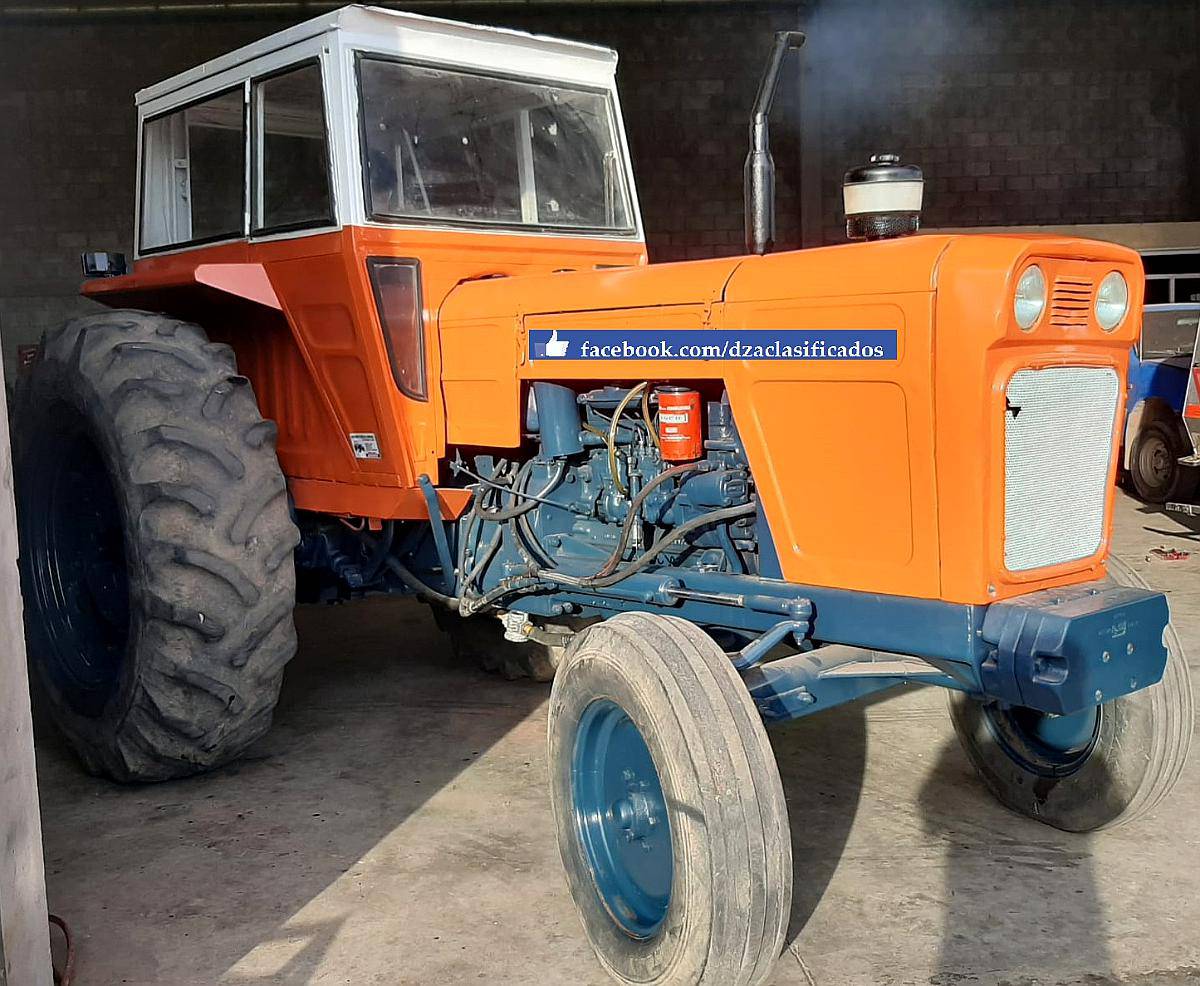

Fiat 800E

Name: Fiat 800E
Brand: Fiat

Fiat 800E — Row-Crop tractor · 90 hp. Reference specifications; pending source verification.

The Fiat 800E is a tractor with an output of 90 hp, placing it in the middle of its class for power. Manufactured from 1974 to 1980, this model features a 4-cylinder diesel liquid-cooled engine, which drives through a 9-speed gearbox and a two-wheel drive transmission. The listed weight of the Fiat 800E is 3140 kg, and it is suited for tasks involving areas of approximately 200–800 acres.

Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.

Rated power

90 hp

Weight

3140 kg

Catalogue coverage

Variants represented

Richest spec table

38 rows

Recorded power

90 hp

Recorded weight

3140 kg

Transmissions

9-speed gear

Production years

1974-1980

Verified variants

No linked source document is currently displayed; verify critical figures with the manufacturer or dealer.

Hover a source tag to verify

Overview

ManufacturerFiatReference

Row-Crop tractorReference

Built in Sauce Viejo, ArgentinaReference

Two-wheel driveReference

Power steeringReference

Mechanical disc brakesReference

Open operator station.Reference

Engine

Fiat 5.4L 4-cyl dieselReference

Fuel tank107.9 LReference

Engine67.1 kWReference

FiatReference

dieselReference

4-cylinderReference

liquid-cooledReference

Displacement5.4 LReference

Bore/Stroke115 x 130 mmReference

Power67.1 kWReference

Rated RPM2200Reference

StarterelectricReference

Starter volts12Reference

Transmission

9-speed gearReference

TypegearReference

Gears9 forward and 2 reverseReference

PTO & Hydraulics

Rear TypeIIReference

Rear PTO Type540/1000 (1.375)Reference

Dimensions

Wheelbase242 cmReference

Weight3140 kgReference

Front tire7.50x18Reference

Rear tire18.4x34Reference

Standard tires (ag)Front: 7.50x18. Rear: 18.4x34Reference

Length398 cmReference

Height (steering wheel)178 cmReference

Height (exhaust)229 cmReference

Clearance (front axle)54 cmReference

Front tread137 to 202 cmReference

Rear tread141 to 203 cmReference

Electrical

GroundnegativeReference

Battery volts12Reference

Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
