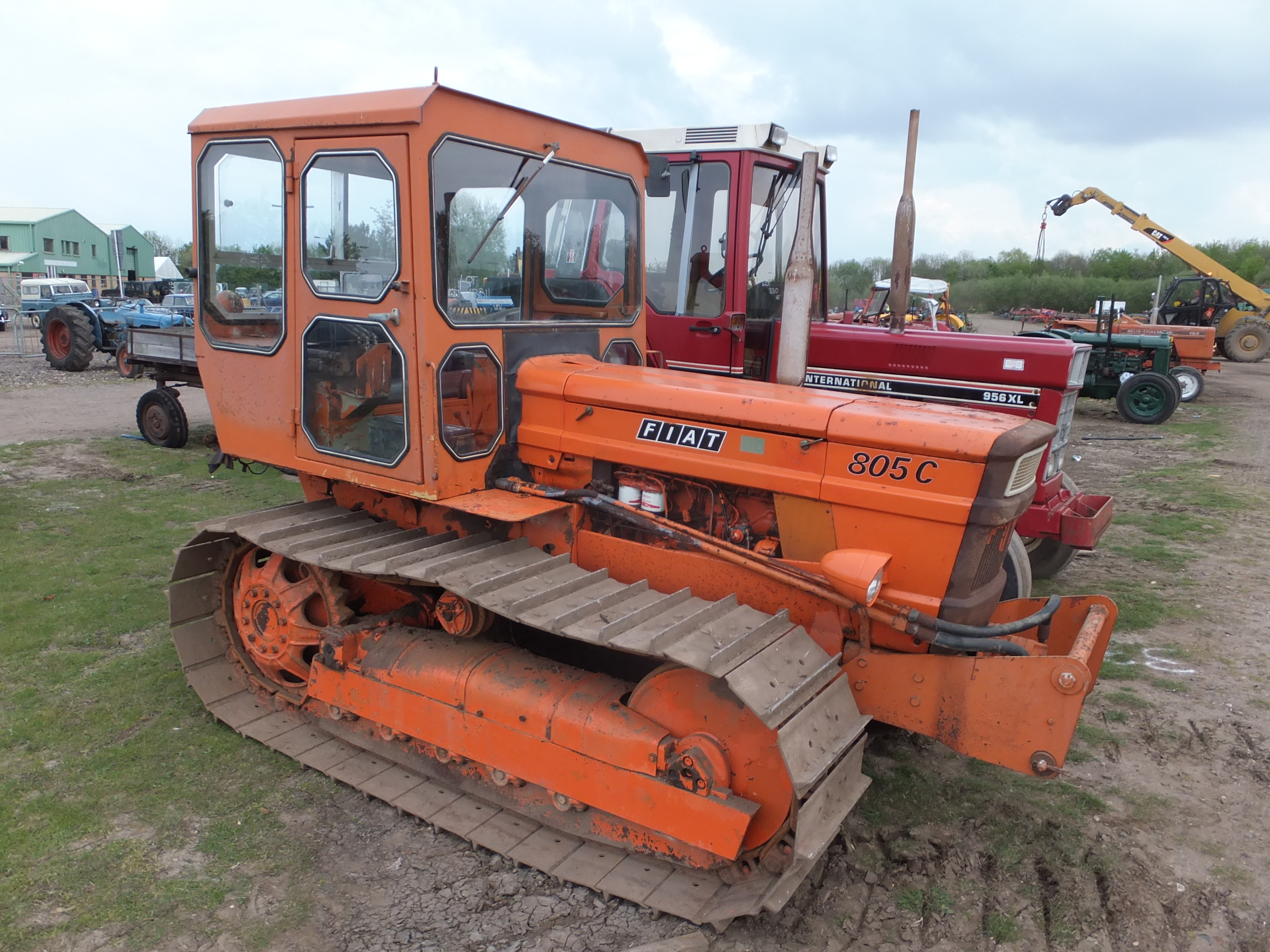

The Fiat 805C is a tractor model with a rated power of 79 hp, a mid-range figure for its class. It was manufactured from 1975 to 1980. The machine features a 4-cylinder diesel liquid-cooled engine paired with a tracked undercarriage and a 6-speed gearbox. Its listed operating weight is 5150 kg, and it is suitable for operations of up to 200 acres.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
79 hp
Weight
5150 kg
Catalogue coverage
Variants represented
2
Richest spec table
46 rows
Recorded power
79 hp
Recorded weight
5150 kg
Transmissions
6-speed crawler
Production years
1975-1980
Verified variants
0
No linked source document is currently displayed; verify critical figures with the manufacturer or dealer.
Hover a source tag to verify
Overview
ManufacturerFiatReference
Agricultural Crawler tractorReference
DrivecrawlerReference
Band brakesReference
Open operator station.Reference
Engine
Fiat 4.6L 4-cyl dieselReference
Fuel tank79.9 LReference
Engine59.0 kWReference
Fiat CO 3/75Reference
dieselReference
4-cylinderReference
liquid-cooledReference
Displacement4.6 LReference
Bore/Stroke110 x 120 mmReference
Power59.0 kWReference
Fuel systemdirect injectionReference
Compression17:1Reference
Rated RPM2100Reference
Firing order1-3-4-2Reference
Starter typeelectricReference
Coolant capacity16.5 LReference
Transmission
6-speed crawlerReference
TypecrawlerReference
Gears6 forward and 2 reverseReference
Clutchwet discReference
PTO & Hydraulics
Typeopen centerReference
Pressure147.1 barReference
Pressure112.7 barReference
Pump flow27.6 lpmReference
Pump flow70.0 lpmReference
Rear TypeIII/IIReference
Dimensions
Wheelbase182 cmReference
Weight5150 kgReference
15.75-inch tracksReference
Length372 cmReference
Width174 cmReference
Height160 cmReference
Height (exhaust)227 cmReference
Operating weight5150 kgReference
Ground clearance35 cmReference
Gauge135 to 0 cmReference
Electrical
GroundnegativeReference
Charging systemalternatorReference
Battery volts12Reference
Battery AH143Reference
Fiat 805C Tracks
Width40 cmReference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
