Tractor · 1961Unverified

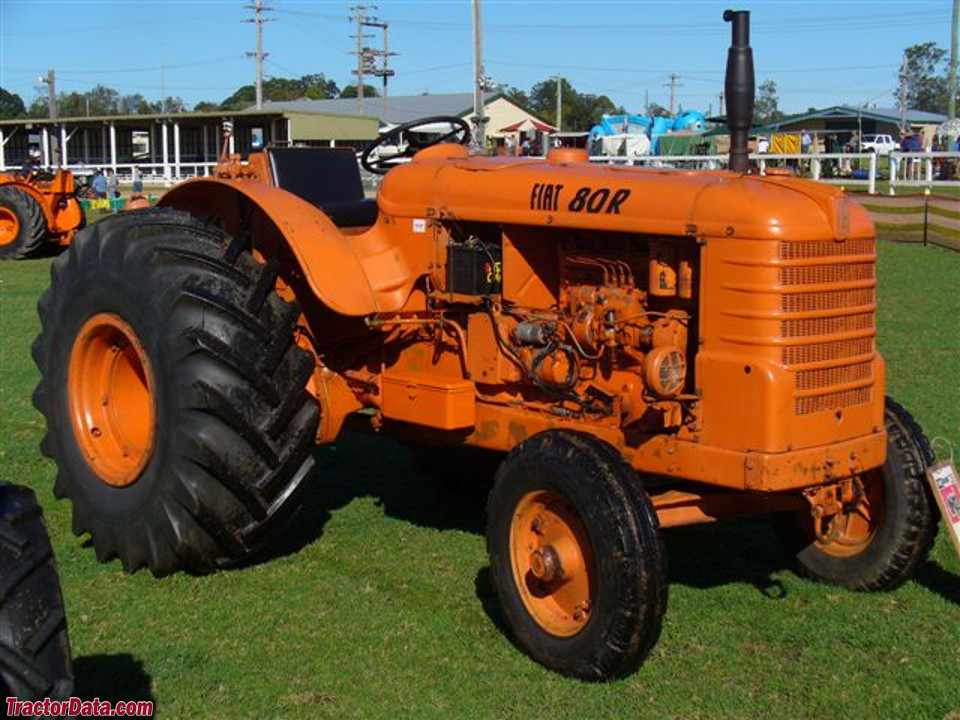

Fiat 80R
Fiat 80R — Standard-tread tractor · 84 hp. Reference specifications; pending source verification.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
84 hp
Weight
3600 kg
Hover a source tag to verify
Overview
ManufacturerFiatReference
Standard-tread tractorReference
Two-wheel driveReference
Differential lockmechanical rearReference
Open operator station.Reference
Engine
FIAT 6.9L 4-cyl dieselReference
Engine62.6 kWReference
FIAT 604Reference
dieselReference
4-cylinderReference
Displacement6.9 LReference
Bore/Stroke125 x 140 mmReference
Power62.6 kWReference
Fuel systemdirect injectionReference
Compression15.5:1Reference
Rated RPM1650Reference
Transmission
5-speed gearReference
TypegearReference
Gears5 forward and 1 reverseReference
PTO & Hydraulics
Rear PTO Type540Reference
Engine RPM540@1450Reference
Dimensions
Wheelbase224 cmReference
Weight3600 kgReference
Front tire7.50-18Reference
Rear tire16.9/14-34Reference
Ag front7.50-18Reference
Ag rear16.9/14-34Reference
Length373 cmReference
Width199 cmReference
Height (hood)165 cmReference
Height (exhaust)219 cmReference
Operating weight3600 kgReference
Ballasted weight3900 kgReference
Ground clearance44 cmReference
Front tread153 cmReference
Rear tread160 cmReference
Capacities
Diameter36 cmReference
Width20 cmReference
RPM945Reference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
