Tractor · 1969Unverified

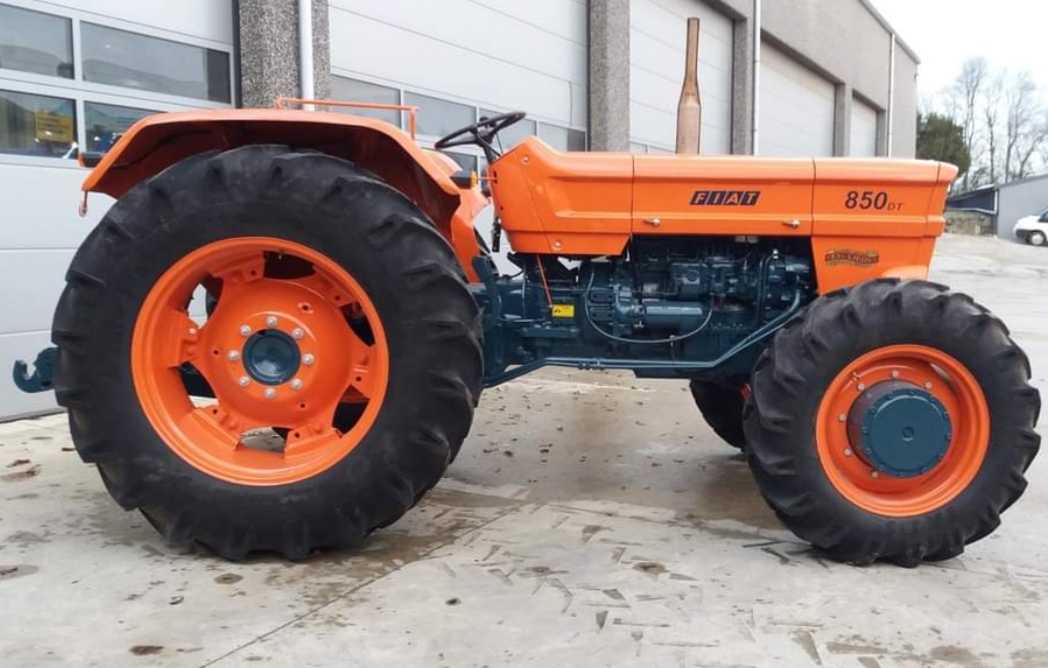

Fiat 850
Fiat 850 — Utility tractor · 85 hp. Reference specifications; pending source verification.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
85 hp
Weight
6835 to 8068 pounds
Hover a source tag to verify
Overview
ManufacturerFiatReference
Utility tractorReference
Two- or four-wheel driveReference
Final drivesplanetaryReference
Differential lockmechanical rearReference
SteeringmanualReference
SteeringpowerReference
Wet disc brakesReference
Open operator station.Reference
Engine
Fiat 4.9L 4-cyl dieselReference
Fuel tank85.9 LReference
Engine63.4 kWReference
Fiat CO3/80Reference
dieselReference
4-cylinderReference
liquid-cooledReference
Displacement4.9 LReference
Bore/Stroke110 x 130 mmReference
Power63.4 kWReference
Fuel systemdirect injectionReference
Compression17:1Reference
Rated RPM2100Reference
Starter volts12Reference
Transmission
12-speed partially synchronizedReference
16-speed creeperReference
Typepartially synchronizedReference
Gears12 forward and 4 reverseReference
Clutchcerametallic discReference
Four synchronized gears in three ranges, plus reverse range.Reference
TypecreeperReference
Gears16 forward and 4 reverseReference
PTO & Hydraulics
Typeopen centerReference
Pump flow33.7 lpmReference
Rear TypeIIReference
Controlposition and draft controlReference
Rear lift2948 kgReference
Rear PTOindependentReference
Rear PTO Type540/1000 (1.375)Reference
Engine RPM540@1938Reference
Engine RPM1000@2038Reference
Dimensions
2WD Wheelbase236 cmReference
4WD Wheelbase239 cmReference
Weight6835 to 8068 poundsReference
Front tire7.50-2Reference
2WD Rear tire13.6/12-38Reference
2WD Standard tires (ag)Front: 7.50-2. Rear: 13.6/12-38Reference
4WD Standard tires (ag)Front: 12.4/11-24. Rear: 16.9/14-34Reference
2WD Optional tires (ag)Front: 6.50-20. Rear: 16.9/14-34Reference
2WD Length361 cmReference
4WD Length374 cmReference
2WD Weight3100 kgReference
4WD Weight3659 kgReference
2WD Ground clearance51 cmReference
4WD Ground clearance39 cmReference
2WD Front tread138 to 198 cmReference
4WD Front tread168/178 cmReference
Rear tread148 to 209 cmReference
2WD Steering wheel175 cmReference
4WD Steering wheel179 cmReference
Electrical
GroundnegativeReference
Charging systemalternatorReference
Battery volts12Reference
Fiat 850 Height
2WD Hood154 cmReference
4WD Hood162 cmReference
Speeds
With 16.9/14-34 rear tires.Reference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
