Tractor · 1975Unverified

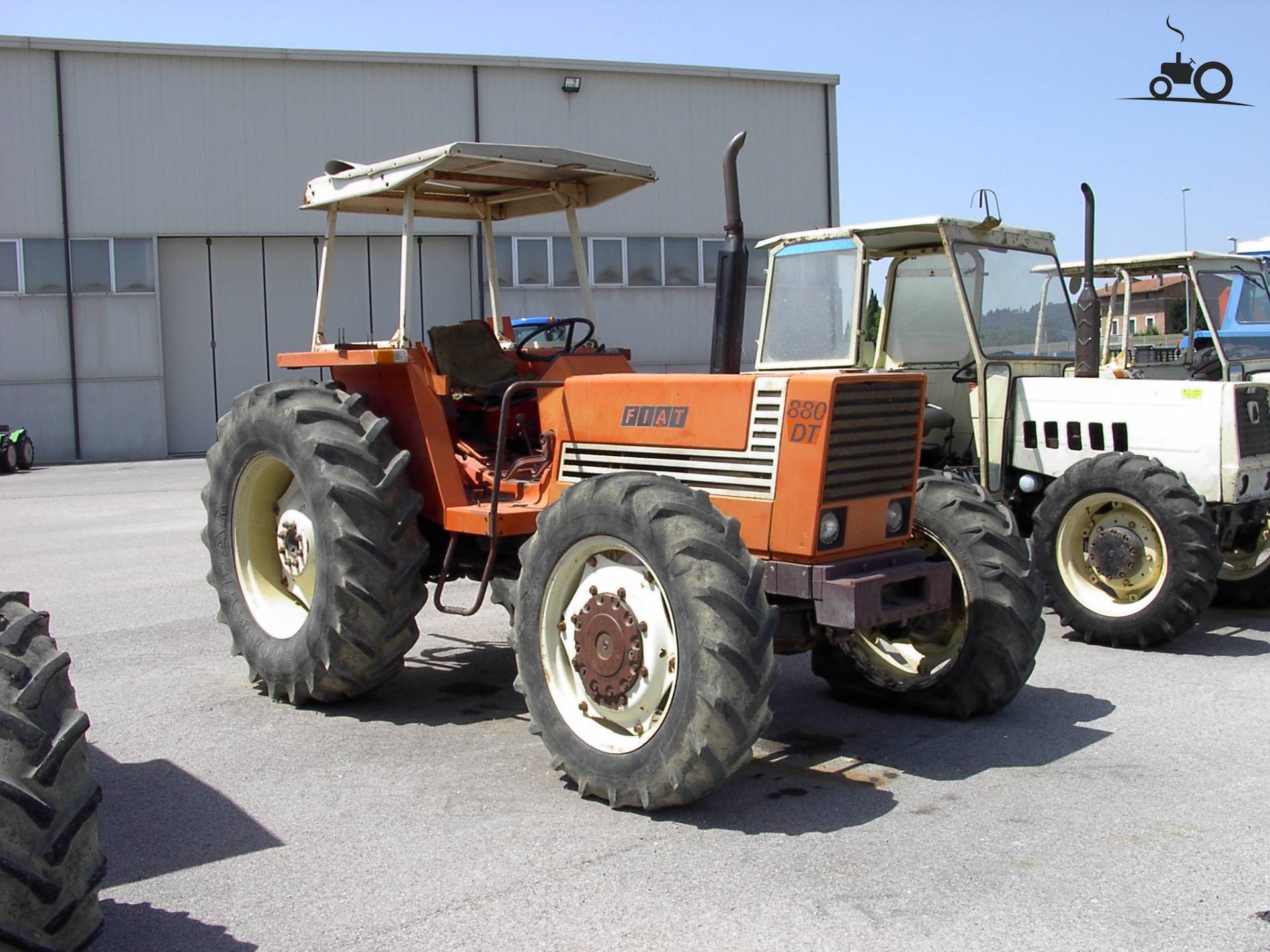

Fiat 880
Fiat 880 · 88 hp. Reference specifications; pending source verification.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
88 hp
Weight
7100 to 7938 pounds
Hover a source tag to verify
Overview
ManufacturerFiatReference
Drive4x2 2WDReference
Drive4x4 MFWD 4WD (880DT)Reference
Steeringhydrostatic powerReference
Hydraulic wet disc brakesReference
Trailer brakeshydraulic (optional)Reference
Open operator station. Cab optional.Reference
Variants
8802WDReference
880DT4WDReference
Engine
Fiat 4.6L 4-cyl dieselReference
Fuel tank115.8 LReference
Engine65.6 kWReference
FiatReference
dieselReference
4-cylinderReference
liquid-cooledReference
Displacement4.6 LReference
Bore/Stroke110 x 120 mmReference
Power65.6 kWReference
Rated RPM2400Reference
Transmission
8-speedReference
12-speedReference
16-speedReference
Gears8 forward and 2 reverseReference
Gears12 forward and 3 reverseReference
Four gears in three ranges.Reference
Gears16 forward and 4 reverseReference
PTO & Hydraulics
Pump flow26.9 lpmReference
Rear TypeIIReference
Rear lift2820 kgReference
Rear Armstelecoping (optional)Reference
Rear PTO Type540Reference
Rear PTO Type1000Reference
Dimensions
Wheelbase245 cmReference
Weight7100 to 7938 poundsReference
Front tire7.50-20Reference
Rear tire16.9-38Reference
Ag front7.50-20Reference
Ag front12.4-28 (4WD)Reference
Ag rear16.9-38Reference
Length389 cmReference
Height256 cmReference
Weight3220 kgReference
Weight3600 kgReference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
