Tractor · 1980Unverified

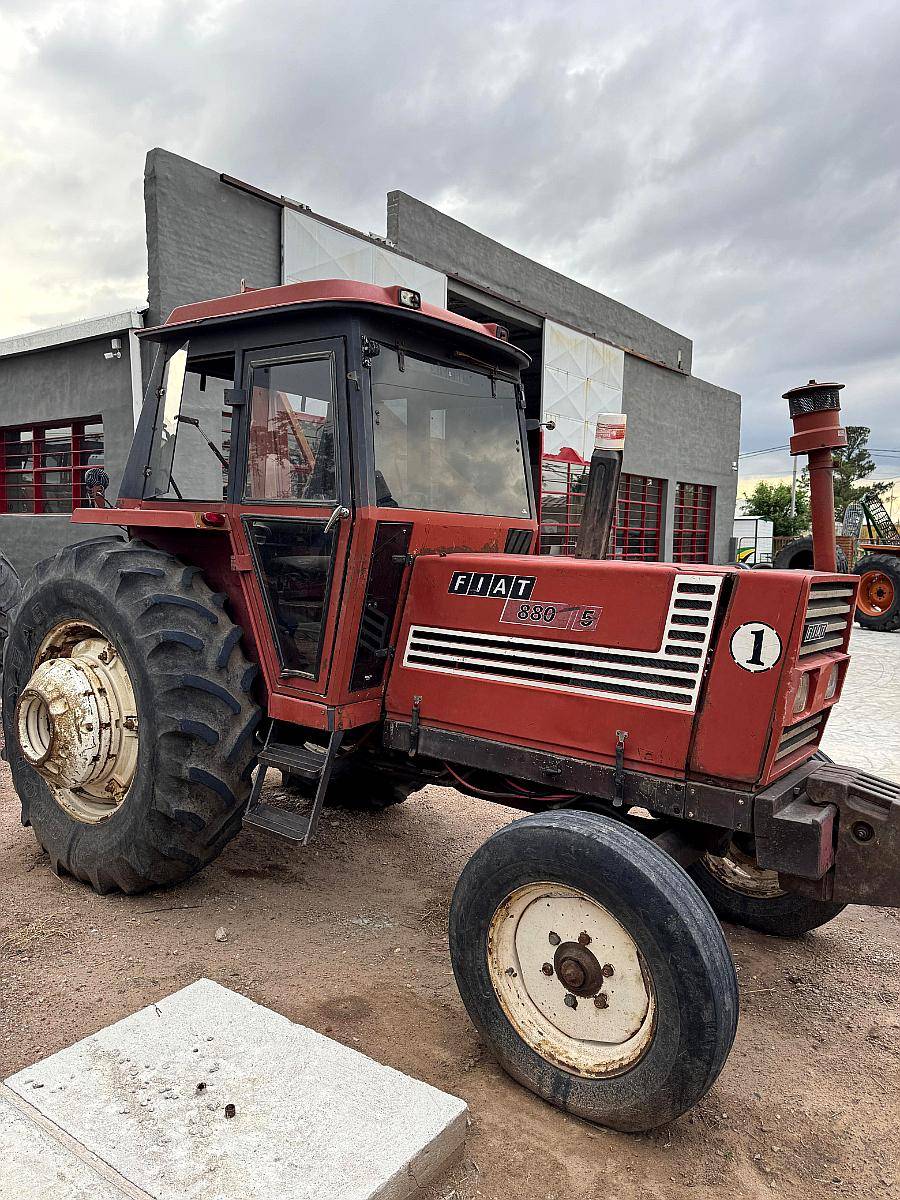

Fiat 880/5
Fiat 880/5 · 81 hp. Reference specifications; pending source verification.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
81 hp
Max power
50.5 kW
Weight
6734 to 7594 pounds
Hover a source tag to verify
Overview
ManufacturerFiatReference
Two- or four-wheel driveReference
Final drivesplanetaryReference
Differential lockmechanical rearReference
Power steeringReference
Hydraulic wet disc brakesReference
Open operator station. Four-post ROPS and cab available.Reference
Engine
Fiat 4.6L 5-cyl dieselReference
Fuel tank115.8 LReference
Engine65.6 kWReference
Drawbar (tested)50.5 kWReference
Fiat 8055.4Reference
dieselReference
5-cylinderReference
liquid-cooledReference
Displacement4.6 LReference
Bore/Stroke103 x 110 mmReference
Power65.6 kWReference
Air cleaneroil bathReference
Rated RPM2400Reference
Torque3531.0 NmReference
Torque RPM1500Reference
Starter volts12Reference
Power at rated engine speed60.6 kWReference
Max power50.5 kWReference
Transmission
12-speed synchronizedReference
16-speed creeperReference
TypesynchronizedReference
Gears12 forward and 3 reverseReference
Clutch304.8mm dry discReference
TypecreeperReference
Gears16 forward and 4 reverseReference
PTO & Hydraulics
PTO (claimed)58.2 kWReference
PTO (claimed)62.6 kWReference
PTO (tested)60.6 kWReference
Pump flow56.0 lpmReference
Rear TypeIIReference
Rear lift2840 kgReference
Rear PTOindependentReference
Rear PTO Type540/1000Reference
Engine RPM540@2124Reference
Engine RPM1000@2400Reference
Power at rated PTO speed60.4 kWReference
Dimensions
Wheelbase245 cmReference
Weight6734 to 7594 poundsReference
Front tire7.50-20Reference
2WD Rear tire18.4-34Reference
2WD Standard tires (ag)Front: 7.50-20. Rear: 18.4-34Reference
4WD Standard tires (ag)Front: 14.9-24. Rear: 16.9-38Reference
Length367 cmReference
Height (ROPS)260 cmReference
Height (cab)258 cmReference
2WD Weight3054 kgReference
4WD Weight3444 kgReference
Clearance (front axle)53 cmReference
Rear tread169 to 219 cmReference
Electrical
Charging systemalternatorReference
Battery volts12Reference
Test results
Diesel 12-speed 4WDMay 30 - June 12, 1980Link: Nebraska Tractor Test 1353 fileReference
PTO performanceReference
Fuel use19.3 l/hourReference
Fuel use18.9 l/hourReference
Drawbar performanceReference
Max pull4807 kgReference
Speeds
With 13.6/12-38 rear tires.Reference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
