Tractor · 1984Unverified

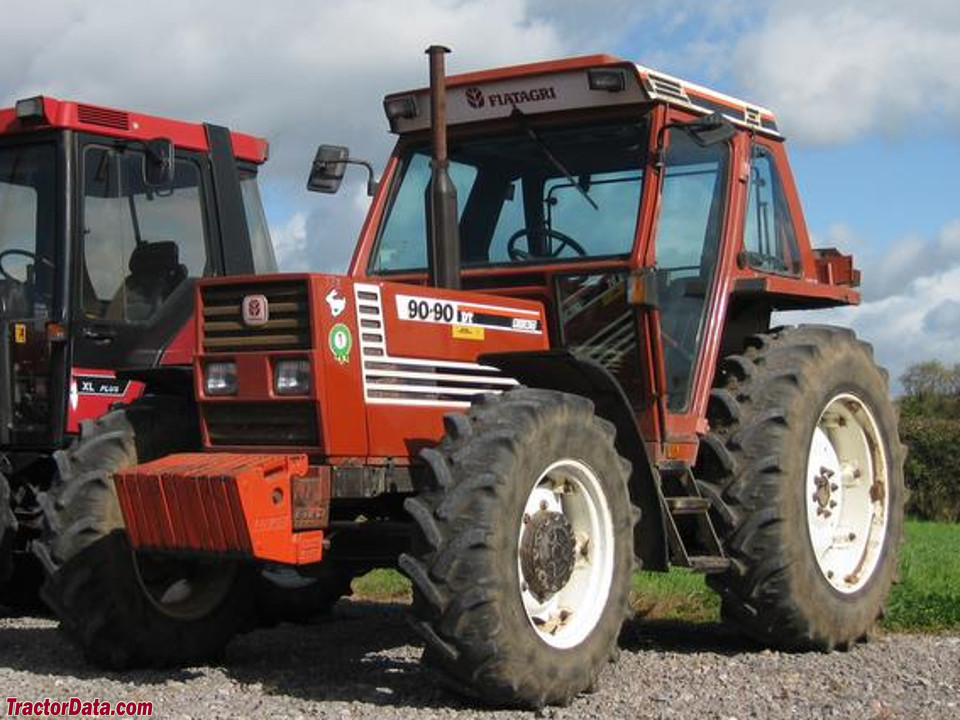

Fiat 90-90
Fiat 90-90 — 90 Series · 90 hp. Reference specifications; pending source verification.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
90 hp
Weight
8533 to 9812 pounds
Hover a source tag to verify
Overview
ManufacturerFiatReference
Two- or four-wheel driveReference
Final drivesplanetaryReference
Differential lockrear standardReference
Hydraulic wet disc brakesReference
Trailer brakeshydraulic optionalReference
Supercomfort cab with air-conditioning optional.Reference
Variants
90-902WDReference
90-90DT4WDReference
Engine
Fiat 4.9L 5-cyl dieselReference
Engine67.1 kWReference
Fiat 8055.05Reference
dieselReference
5-cylinderReference
liquid-cooledReference
Displacement4.9 LReference
Bore/Stroke104 x 115 mmReference
Power67.1 kWReference
Rated RPM2500Reference
Oil capacity13.7 LReference
Transmission
15-speed synchronizedReference
20-speed creeperReference
TypesynchronizedReference
Gears15 forward and 3 reverseReference
Clutchdry discReference
Five gears, plus reverse, in three ranges. A 40 KPH gearbox was available with four-wheel drive.Reference
TypecreeperReference
Gears20 forward and 4 reverseReference
Capacities
Fuel93.1 LReference
Fuel132.9 LReference
PTO & Hydraulics
Hydraulic system44.3 LReference
Typeopen centerReference
Capacity44.3 LReference
Pressure186.2 barReference
Valves1 to 3Reference
Pump flow43.9 lpmReference
Pump flow48.1 lpmReference
Rear PTOindependentReference
Clutch304.8mm dry discReference
Rear PTO Type540/groundReference
Rear PTO Type540/1000/groundReference
Engine RPM540@2124Reference
Engine RPM1000@2409Reference
Dimensions
Wheelbase246 cmReference
Weight8533 to 9812 poundsReference
Front tire7.50-18Reference
Rear tire13.6/12-28Reference
Ag front7.50-18 (2WD)Reference
Ag front7.50-20 (2WD)Reference
Ag front11.2/10-28 (4WD)Reference
Ag front13.6/12-24 (4WD)Reference
Ag rear13.6/12-28Reference
Ag rear16.9/14-34Reference
Length385 cmReference
Height260 cmReference
Weight3870 kgReference
Weight4450 kgReference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
