Tractor · 1969Unverified

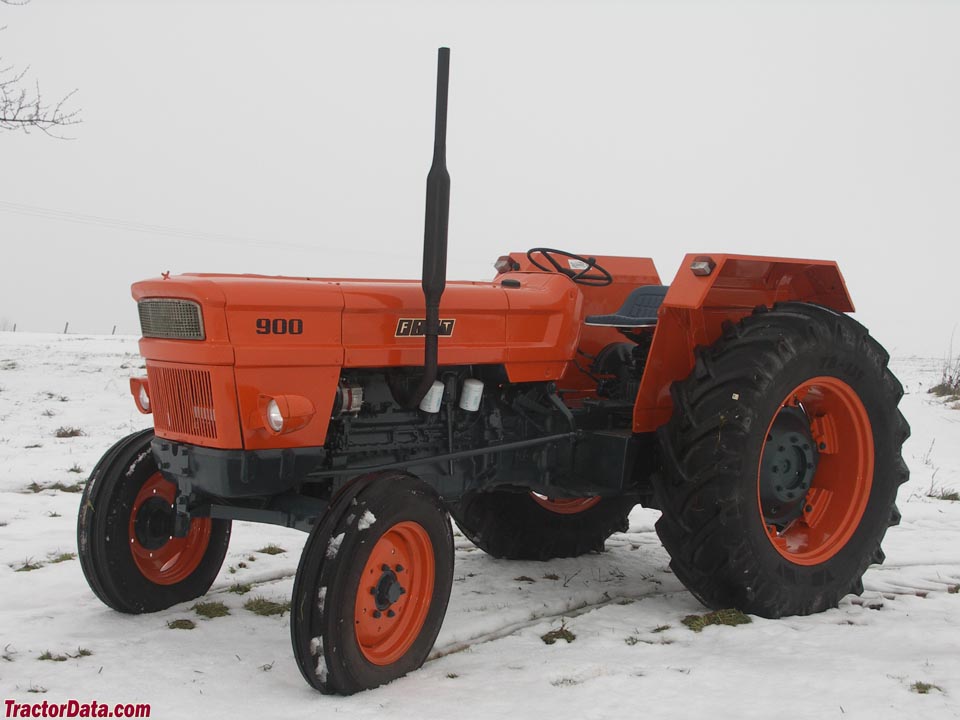

Fiat 900
Fiat 900 — Row-Crop tractor · 90 hp. Reference specifications; pending source verification.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
90 hp
Weight
7849 to 9216 pounds
Hover a source tag to verify
Overview
ManufacturerFiatReference
Row-Crop tractorReference
Two- or four-wheel driveReference
Open operator station.Reference
Engine
Fiat 4.7L 6-cyl dieselReference
Fuel tank118.1 LReference
Engine67.1 kWReference
Fiat 8065.01Reference
dieselReference
6-cylinderReference
liquid-cooledReference
Displacement4.7 LReference
Bore/Stroke95 x 110 mmReference
Power67.1 kWReference
Compression17:1Reference
Rated RPM2400Reference
Starter volts12Reference
Coolant capacity19.0 LReference
Transmission
12-speedReference
Gears12 forward and 4 reverseReference
PTO & Hydraulics
Rear lift3000 kgReference
Rear PTO Type540/1000 (1.375)Reference
Engine RPM540@1937Reference
Engine RPM1000@2038Reference
Dimensions
Wheelbase247 cmReference
Weight7849 to 9216 poundsReference
Front tire7.50-20Reference
Rear tire16.9-38Reference
Ag front7.50-20Reference
Ag front11.2-28 (4WD)Reference
Ag rear16.9-38Reference
Length417 cmReference
Width199 cmReference
2WD Weight3560 kgReference
4WD Weight4180 kgReference
Clearance (front axle)57 cmReference
Front tread139 to 199 cmReference
Rear tread160 to 210 cmReference
Steering wheel182 cmReference
900 Serial Numbers
Location:Serial number plate below the dashboard.Reference
Electrical
GroundnegativeReference
Battery volts12Reference
Fiat 900 Height
Hood161 cmReference
Exhaust236 cmReference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
