Tractor · 1981Unverified

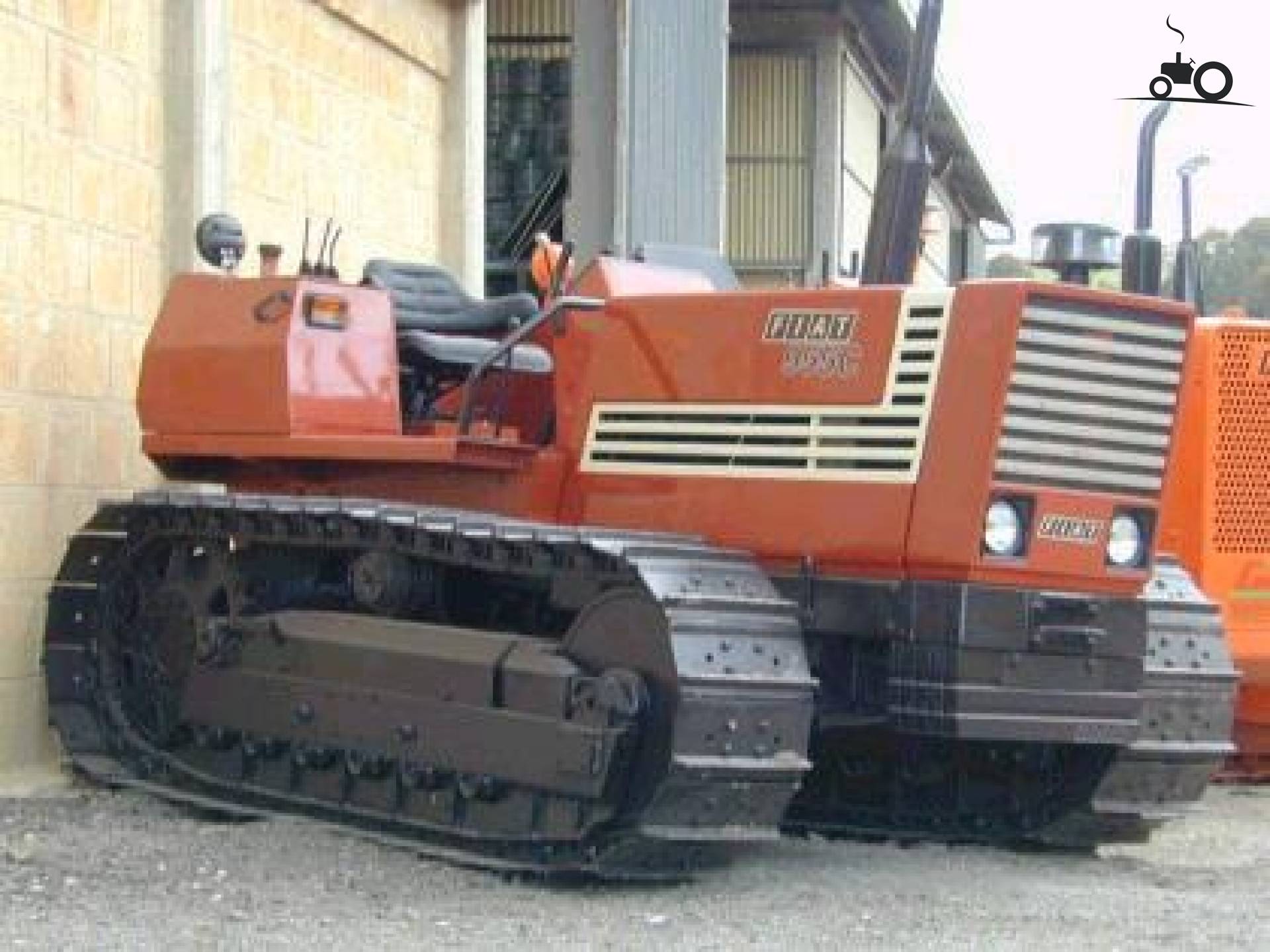

Fiat 955C
Fiat 955C — 55 Series · 88 hp. Reference specifications; pending source verification.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
88 hp
Weight
5919 kg
Hover a source tag to verify
Overview
ManufacturerFiatReference
Agricultural Crawler tractorReference
DrivecrawlerReference
Final drivesspur gearReference
Band brakesReference
Two-post ROPS with canopy.Reference
Engine
Fiat 4.6L 5-cyl dieselReference
Fuel tank170.3 LReference
Engine65.6 kWReference
Fiat 8055Reference
dieselReference
5-cylinderReference
liquid-cooledReference
Displacement4.6 LReference
Bore/Stroke103 x 110 mmReference
Power65.6 kWReference
Fuel systemdirect injectionReference
Air cleanerdryReference
Pre-heatingthermostartReference
Rated RPM2500Reference
StarterelectricReference
Starter volts12Reference
Transmission
8-speed gearReference
TypegearReference
Gears8 forward and 4 reverseReference
Clutch304.8mm wet discReference
PTO & Hydraulics
Typeopen centerReference
Pressure169.6 barReference
Rear valves2 to 4Reference
Pump flow41.6 lpmReference
Rear TypeIII/IIReference
Rear PTOindependentReference
Rear PTO Type540 (1.375)Reference
Engine RPM540@2227Reference
Dimensions
Weight5919 kgReference
19.7-inch tracksReference
Length355 cmReference
Width195 cmReference
Height (hood)139 cmReference
Height (exhaust)240 cmReference
Operating weight5919 kgReference
Gauge144 cmReference
Electrical
Charging systemalternatorReference
Charging amps45Reference
Battery volts12Reference
Fiat 955C Tracks
Width50 cmReference
Length on ground198 cmReference
Area on ground2.0 m²Reference
Ground pressure0.3 barReference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
