Tractor · 1979Unverified

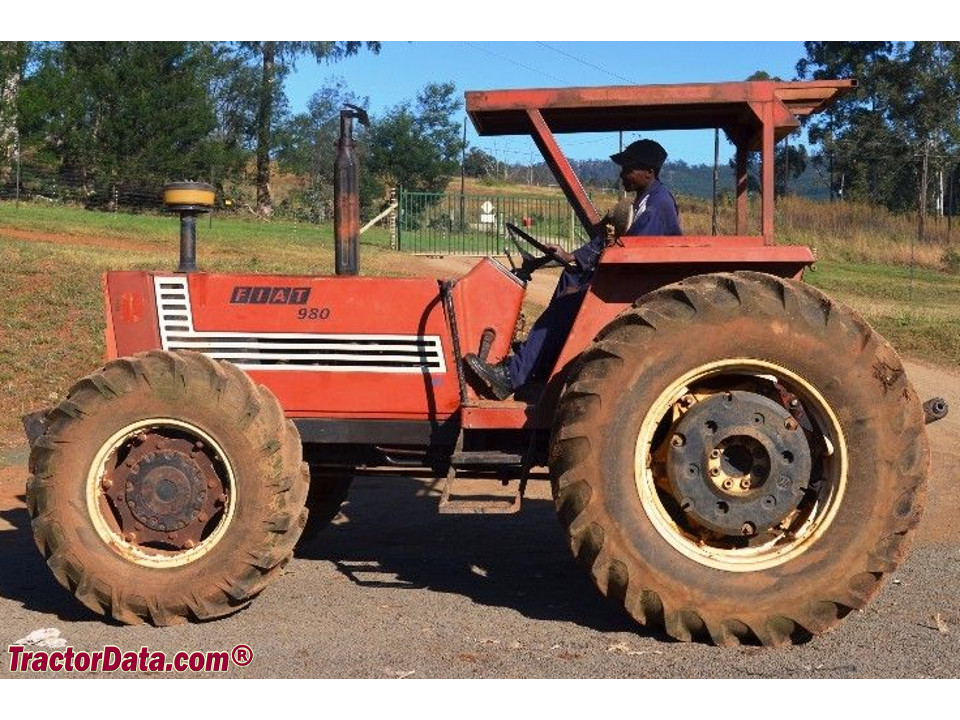

Fiat 980
Fiat 980 · 98 hp. Reference specifications; pending source verification.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
98 hp
Weight
7628 to 8289 pounds
Hover a source tag to verify
Overview
ManufacturerFiatReference
Two- or four-wheel driveReference
Power steeringReference
Wet disc brakesReference
Open operator station. ROPS and cab available.Reference
Engine
Fiat 5.2L 6-cyl dieselReference
Fuel tank115.8 LReference
Engine73.1 kWReference
Fiat 8065Reference
dieselReference
6-cylinderReference
liquid-cooledReference
Displacement5.2 LReference
Bore/Stroke100 x 110 mmReference
Power73.1 kWReference
Air cleaneroil bathReference
Compression17:1Reference
Rated RPM2400Reference
Starter volts12Reference
Transmission
12-speed synchronizedReference
16-speed creeperReference
TypesynchronizedReference
Gears12 forward and 3 reverseReference
Clutchdry discReference
TypecreeperReference
Gears16 forward and 4 reverseReference
PTO & Hydraulics
Typeopen centerReference
Pump flow41.3 lpmReference
Rear TypeIIReference
Controlposition and draft controlReference
Rear lift3200 kgReference
Rear PTOindependentReference
Rear PTO Type540/1000 (1.375)Reference
Engine RPM540@2124Reference
Engine RPM1000@2400Reference
Dimensions
Wheelbase254 cmReference
Weight7628 to 8289 poundsReference
Front tire7.50-20Reference
2WD 12.4/11-28:16.9/14-38 4WD} Rear tire16.9/14-38Reference
2WD 12.4/11-28 Standard tires (ag)Front: 7.50-20. Rear: 16.9/14-38Reference
Length400 cmReference
Height264 cmReference
2WD Weight3460 kgReference
4WD Weight3759 kgReference
Electrical
Charging systemalternatorReference
Battery volts12Reference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
