Tractor · 1990Unverified

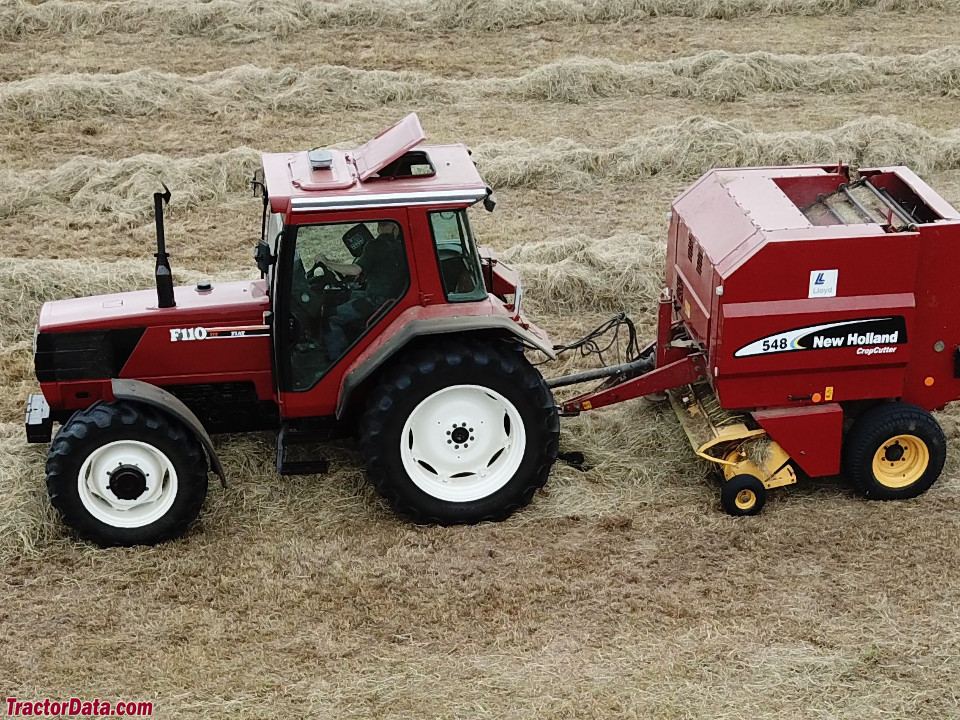

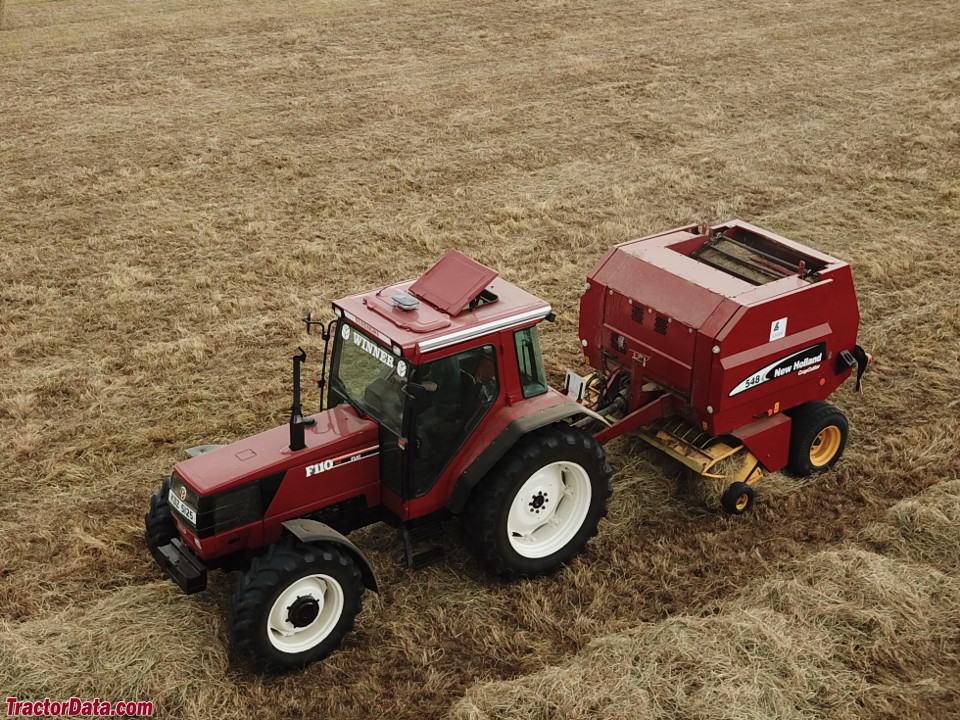

Fiat F110
Fiat F110 — Winner Series · 110 hp. Reference specifications; pending source verification.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
110 hp
Weight
4800 kg
Hover a source tag to verify
Overview
ManufacturerFiatReference
Row-Crop tractorReference
Two- or four-wheel driveReference
Steeringhydraulic powerReference
Wet disc brakesReference
Cab standard. Air-conditioning optional.Reference
Engine
Iveco 5.9L 6-cyl dieselReference
Fuel tank219.9 LReference
Engine82.0 kWReference
Iveco 8065.05Reference
dieselReference
6-cylinderReference
liquid-cooledReference
Displacement5.9 LReference
Bore/Stroke104 x 115 mmReference
Power82.0 kWReference
Rated RPM2300Reference
Starter typeelectricReference
Transmission
16-speedReference
20-speedReference
32-speedReference
Gears16 forward and reverseReference
Clutchhydraulic cerametallic dry discReference
Four gears in four ranges with synchronized shuttle. Also available as a 32-32 speed creeper.Reference
TransmissionEco-SpeedReference
Gears20 forward and 16 reverseReference
Eco-Speed adds a 40 KPH overdrive to the 16-speed transmission. Also available as a 40-32 speed creeper.Reference
TransmissionHi-LoReference
Gears32 forward and 16 reverseReference
Electro-hydraulic high-low on the base 16-speed transmission. Available in 30 KPH and 40 KPH versions. Also available as 64-32 speed creeper.Reference
PTO & Hydraulics
Pump flow54.9 lpmReference
Rear TypeIIReference
Controlposition control and lower-link draft sensingReference
Rear lift4700 kgReference
Rear PTOindependentReference
Clutchelectro-hydraulicReference
Rear PTO Type540/1000Reference
Rear PTO Type540/750/1000 (optional)Reference
Dimensions
Wheelbase268 cmReference
Weight4800 kgReference
Front tire11.00-16Reference
Rear tire18.4-34 (2WD)Reference
Standard tires (ag)Front: 11.00-16. Rear: 18.4-34 (2WD)Reference
Standard tires (ag)Front: 14.9-28. Rear: 18.4-34 (4WD)Reference
Length465 cmReference
Height280 cmReference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
