Tractor · 1990Unverified

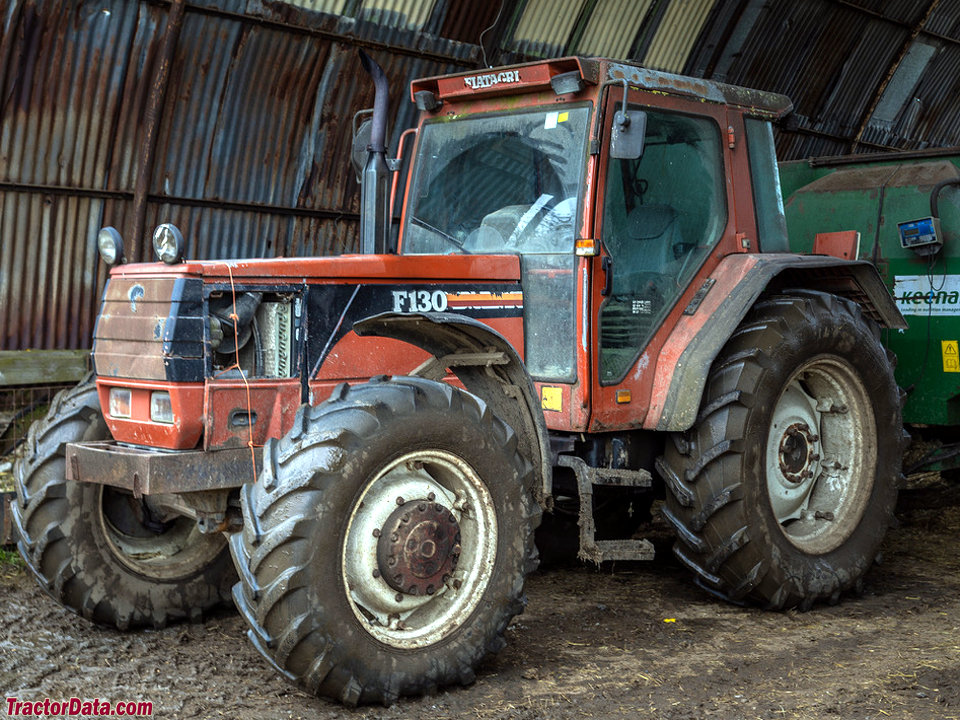

Fiat F130

Name: Fiat F130
Brand: Fiat

Fiat F130 — Winner Series · 130 hp. Reference specifications; pending source verification.

The Fiat F130 is a 130 hp tractor, positioned in the higher-powered segment of its class. It was produced from 1990 to 1996. The F130 features a 6-cylinder turbocharged diesel liquid-cooled engine, coupled with a 16-speed gearbox and four-wheel drive configuration. Its listed weight is 5000 kg, suitable for tasks spanning approximately 200–800 acres.

Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.

Rated power

130 hp

Weight

5000 kg

Catalogue coverage

Variants represented

Richest spec table

47 rows

Recorded power

130 hp

Recorded weight

5000 kg

Transmissions

16-speed

Production years

1990-1996

Verified variants

No linked source document is currently displayed; verify critical figures with the manufacturer or dealer.

Hover a source tag to verify

Overview

ManufacturerFiatReference

Row-Crop tractorReference

Two- or four-wheel driveReference

Steeringhydraulic powerReference

Wet disc brakesReference

Cab standard. Air-conditioning optional.Reference

Engine

Iveco 5.9L 6-cyl dieselReference

Fuel tank219.9 LReference

Engine96.9 kWReference

Iveco 8065.25Reference

turbocharged dieselReference

6-cylinderReference

liquid-cooledReference

Displacement5.9 LReference

Bore/Stroke104 x 115 mmReference

Power96.9 kWReference

Rated RPM2300Reference

Starter typeelectricReference

Transmission

16-speedReference

20-speedReference

32-speedReference

Gears16 forward and reverseReference

Clutchhydraulic cerametallic dry discReference

Four gears in four ranges with synchronized shuttle. Also available as a 32-32 speed creeper.Reference

TransmissionEco-SpeedReference

Gears20 forward and 16 reverseReference

Eco-Speed adds a 40 KPH overdrive to the 16-speed transmission. Also available as a 40-32 speed creeper.Reference

TransmissionHi-LoReference

Gears32 forward and 16 reverseReference

Electro-hydraulic high-low on the base 16-speed transmission. Available in 30 KPH and 40 KPH versions. Also available as 64-32 speed creeper.Reference

PTO & Hydraulics

Pump flow54.9 lpmReference

Rear TypeIII/IIReference

Controlposition control and lower-link draft sensingReference

Rear lift6601 kgReference

Rear PTOindependentReference

Clutchelectro-hydraulicReference

Rear PTO Type540/1000Reference

Rear PTO Type540/750/1000 (optional)Reference

Dimensions

Wheelbase278 cmReference

Weight5000 kgReference

Front tire11.00-16Reference

Rear tire18.4-34 (2WD)Reference

Standard tires (ag)Front: 11.00-16. Rear: 18.4-34 (2WD)Reference

Standard tires (ag)Front: 14.9-28. Rear: 18.4-34 (4WD)Reference

Optional tires (ag)Front: 420/70-28. Rear: 520/70-38Reference

Length465 cmReference

Height280 cmReference

Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
