Tractor · 1993Unverified

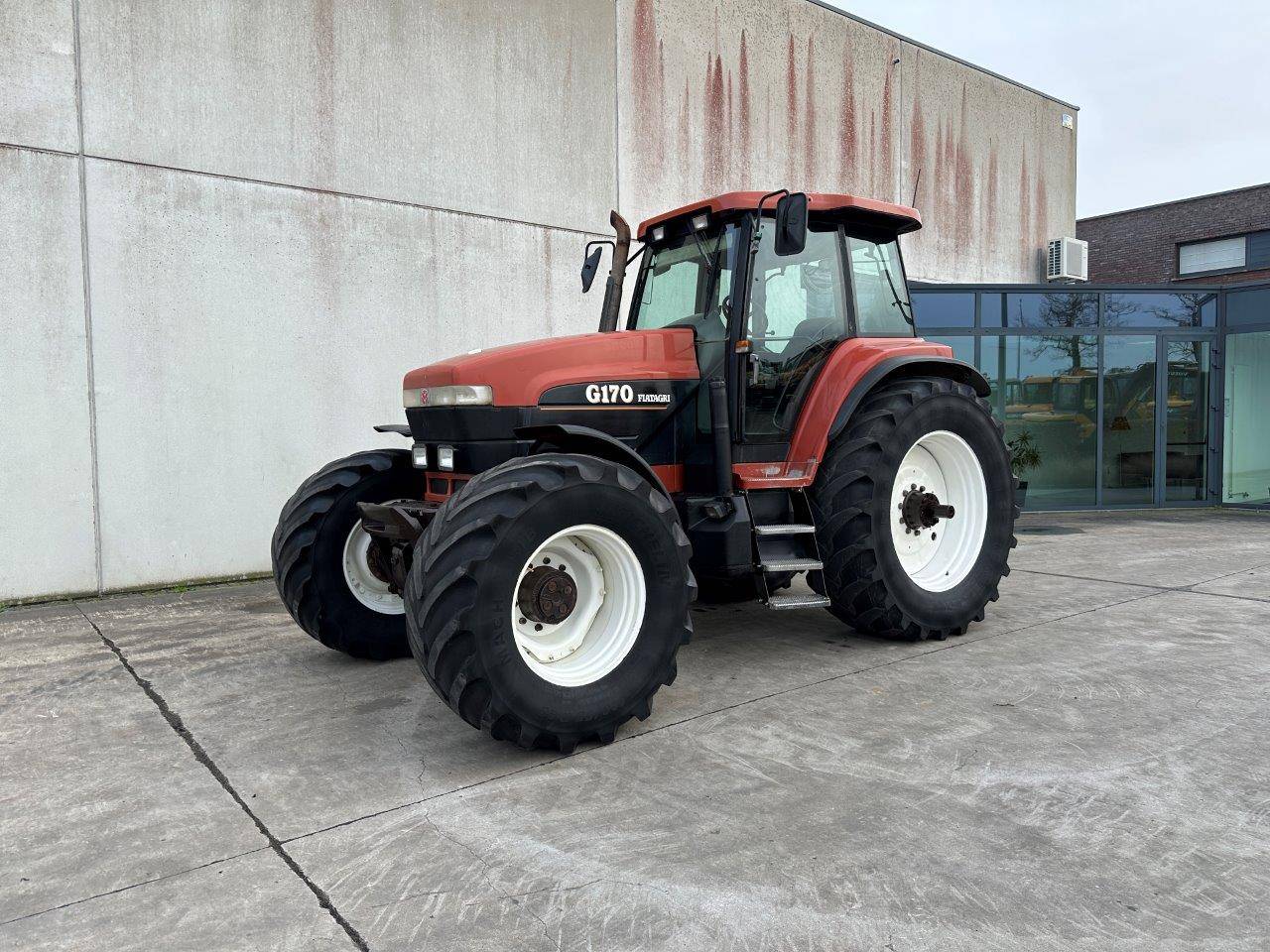

Fiat G170

Name: Fiat G170
Brand: Fiat

Fiat G170 — G Series · 148 hp. Reference specifications; pending source verification.

The Fiat G170 is a tractor with a rated output of 148 hp, categorising it as a high-powered machine in its class. Manufactured from 1993 to 2002, the G170 features a 6-cylinder turbocharged diesel liquid-cooled engine, which powers four-wheel drive via a powershift transmission. The listed weight of the G170 ranges from 7,948 to 8,224 kg. It is designed for tasks requiring around 80-324 ha.

Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.

Rated power

148 hp

Max power

125.0 kW

Weight

15800 to 18200 pounds

Catalogue coverage

Variants represented

Richest spec table

95 rows

Recorded power

148 hp

Transmissions

16-speed full power shift

Production years

1993-2002

Verified variants

No linked source document is currently displayed; verify critical figures with the manufacturer or dealer.

Hover a source tag to verify

Overview

ManufacturerFiatReference

Row-Crop tractorReference

Built in Winnipeg, Manitoba, CanadaReference

Original price was $84,500 in 2000Reference

Two- or four-wheel driveReference

Power steeringReference

Wet disc brakesReference

Cab standard with air-conditioning.Reference

Engine

Ford 7.5L 6-cyl dieselReference

Engine126.8 kWReference

Drawbar (tested)98.5 kWReference

FordReference

turbocharged dieselReference

6-cylinderReference

liquid-cooled inlineReference

Displacement7.5 LReference

Bore/Stroke112 x 127 mmReference

Power126.8 kWReference

Compression17.5:1Reference

Rated RPM2100Reference

Firing order1-5-3-6-2-4Reference

Starter volts12Reference

Starter power4.5 kWReference

Coolant capacity25.0 LReference

Intake valve clearance0.356 mmReference

Exhaust valve clearance0.432 mmReference

Oil capacity20.8 LReference

Max power125.0 kWReference

Power at rated engine speed110.1 kWReference

Max power98.5 kWReference

Transmission

16-speed full power shiftReference

32-speed creeperReference

Typefull power shiftReference

Gears16 forward and 9 reverseReference

TypecreeperReference

Gears32 forward and 18 reverseReference

Creeper range added to standard power shift transmission. With tractor in neutral and inching pedal pressed, toggle button is used to enter/exit creeper range.Reference

PTO & Hydraulics

PTO (claimed)108.1 kWReference

PTO (tested)125.0 kWReference

Hydraulic system117.0 LReference

Typeclosed center load sensingReference

Capacity117.0 LReference

Pressure189.6 barReference

Valves3Reference

Pump flow90.8 lpmReference

Total flow117.3 lpmReference

Total flow208.2 lpmReference

Rear TypeIIIReference

Rear lift4536 kgReference

Rear PTOindependentReference

Clutchelectro-hydraulic wet discReference

Rear PTO Type540/1000 (1.375)Reference

Engine RPM540@1878Reference

Engine RPM1000@1903Reference

Power at rated PTO speed122.1 kWReference

Capacities

Fuel416.4 LReference

Front hubs1.6 LReference

Front diff.12.3 LReference

Max capacity9865 kgReference

Dimensions

Wheelbase300 cmReference

Wheelbase311 cmReference

Weight15800 to 18200 poundsReference

Front tire14L-16.1Reference

Rear tire18.4R42Reference

Ag front14L-16.1 (2WD)Reference

Ag front16.9R28 (4WD)Reference

Ag rear18.4R42Reference

Length499 cmReference

Width245 cmReference

Height (cab)308 cmReference

Height (exhaust)315 cmReference

Clearance (front axle)50 cmReference

Clearance (drawbar)47 cmReference

Front tread157 to 220 cmReference

Rear tread153 to 273 cmReference

Rear tread153 to 314 cmReference

Operating7166 kgReference

Operating8051 kgReference

Operating8255 kgReference

Fiat G170 attachments

front-end loaderReference

Electrical

GroundnegativeReference

Charging systemalternatorReference

Charging amps130Reference

Batteries2Reference

Battery CCA950Reference

Battery volts12Reference

Test results

Diesel 16-speed 4WDJuly 1996 - August 1996, Link: OCED Tractor Test 1649 fileReference

PTO performanceReference

Fuel use34.4 l/hourReference

Fuel use34.8 l/hourReference

Drawbar performanceReference

Gear 9 used for power test.Reference

Max pull7885 kgReference

Gear 6 used for pull test.Reference

Speeds

With 18.4-42 rear tires.Reference

Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
