Tractor · 1996Unverified

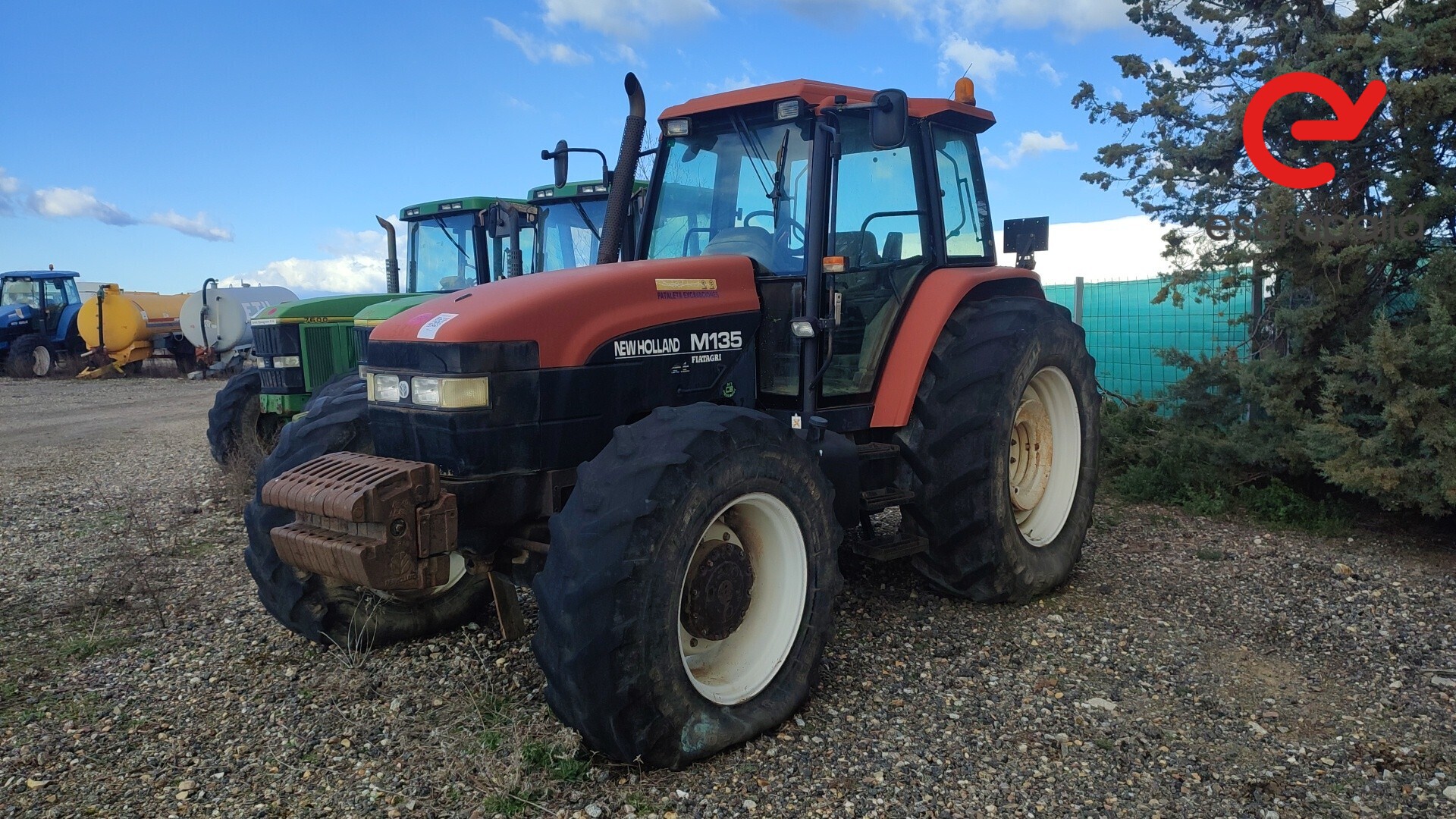

Fiat M135

Name: Fiat M135
Brand: Fiat

Fiat M135 · 115 hp. Reference specifications; pending source verification.

The Fiat M135 is a tractor with a rated output of 115 hp, placing it in the middle of its class for power. This model was manufactured from 1996 to 1999. It features a 6-cylinder turbocharged diesel liquid-cooled engine, driving through a mechanical front-wheel drive system with a hydrostatic transmission. The listed weight of the Fiat M135 is 11836 to 13046 pounds.

Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.

Rated power

115 hp

Max power

88.7 kW

Weight

11836 to 13046 pounds

Catalogue coverage

Variants represented

Richest spec table

108 rows

Recorded power

115 hp

Transmissions

23-speed partially synchronized

Production years

1996-1999

Verified variants

No linked source document is currently displayed; verify critical figures with the manufacturer or dealer.

Hover a source tag to verify

Overview

ManufacturerFiatReference

Built in EnglandReference

Original price$56,000 (1999)Reference

Drive4x2 2WDReference

Drive4x4 MFWD 4WD (optional)Reference

Differential lockRear or front and rear (4WD) with push-button operation. Manual and automatic modes. (2WD)Reference

Steeringhydrostatic powerReference

Differential hydraulic wet disc brakesReference

Two-post ROPS. Optional cab.Reference

Variants

8360similar New Holland modelReference

Engine

New Holland 7.5L 6-cyl dieselReference

Engine100.7 kWReference

Drawbar (tested)74.6 kWReference

New Holland GenesisReference

turbocharged dieselReference

6-cylinderReference

liquid-cooledReference

Displacement7.5 LReference

Bore/Stroke114 x 127 mmReference

Power100.7 kWReference

Compression17.5:1Reference

Rated RPM2200Reference

Idle RPM700-2420Reference

Operating RPM1500-2200Reference

Torque RPM1400Reference

Firing order1-5-3-6-2-4Reference

Starter volts12Reference

Starter power3.7 kWReference

Coolant capacity24.0 LReference

Coolant capacity26.0 LReference

Intake valve clearance0.406 mmReference

Exhaust valve clearance0.457 mmReference

Oil capacity19.7 LReference

Max power88.7 kWReference

Max power74.6 kWReference

Transmission

23-speed partially synchronizedReference

17-speed partial power shiftReference

18-speed partial power shiftReference

TransmissionDual CommandReference

Typepartially synchronizedReference

Gears23 forward and 12 reverseReference

Clutchwet discReference

Oil capacity72.7 LReference

Four gears (1-4) in three ranges (A-C) with left-hand shuttle lever and push-button underdrive. Gear shifts may be made on the move with the clutch. The tractor must be stopped to shift range. The forward-reverse shuttle, and the push-button underdrive, may be performed on the move without the clutch. Reverse gears operate in underdrive only. Optional creeper doubles the available speeds to 46 forward and 24 reverse.Reference

TransmissionRange CommandReference

Typepartial power shiftReference

Gears17 forward and 6 reverseReference

Oil capacity89.7 LReference

The 17-speed Range Command transmission was available with 2WD. Six gears (1-6) in three ranges (A-C) with left-hand shuttle lever. Push-button gear shifting on the move. To shift ranges, hold up or down gear shift button while pressing range shift button. Reverse is available in range B only. Optional creeper increases available speeds to 30 forward and 12 in reverse.Reference

Gears18 forward and 6 reverseReference

The 18-speed Range Command transmission was available with 4WD. Six gears (1-6) in three ranges (A-C) with left-hand shuttle lever. Push-button gear shifting on the move. To shift ranges, hold up or down gear shift button while pressing range shift button. Reverse is available in range B only. Optional creeper increases available speeds to 31 and 12.Reference

PTO & Hydraulics

PTO (claimed)85.8 kWReference

PTO (tested)88.7 kWReference

Hydraulic system89.7 LReference

Hydraulic system72.7 LReference

Typeclosed center load sensingReference

Capacity89.7 LReference

Capacity72.7 LReference

Pressure190.0 barReference

Valves2 to 4Reference

Pump flow98.4 lpmReference

Steering flow62.1 lpmReference

Steering press.170.0 barReference

Rear TypeII/IIIReference

Rear lift (at 24"/610mm)5443 kgReference

Rear PTOindependentReference

Rear PTO Type540/1000Reference

Capacities

Fuel321.7 LReference

Front hubs2.2 LReference

Front diff.3.5 LReference

Max capacity8999 kgReference

Dimensions

Wheelbase275 cmReference

Wheelbase272 cmReference

Weight11836 to 13046 poundsReference

Front tire11.00-16Reference

Rear tire18.4R38 (2WD)Reference

Standard tires (ag)Front: 11.00-16. Rear: 18.4R38 (2WD)Reference

Standard tires (ag)Front: 14.9R28. Rear: 18.4R38 (4WD)Reference

Length457 cmReference

Length462 cmReference

Width213 cmReference

Clearance (front axle)58 cmReference

Clearance (front axle)50 cmReference

Clearance (drawbar)38 cmReference

Front tread154 to 218 cmReference

Front tread152 to 223 cmReference

Rear tread152 to 223 cmReference

Rear tread151 to 230 cmReference

Rear tread152 to 304 cmReference

Shipping5368 kgReference

Shipping5917 kgReference

Max front axle3599 kgReference

Max front axle4499 kgReference

Max rear axle7500 kgReference

Electrical

GroundnegativeReference

Charging systemalternatorReference

Charging amps70Reference

Charging amps100 (with cab)Reference

Batteries2Reference

Battery CCA900Reference

Battery volts12Reference

Fiat M135 Height

ROPS290 cmReference

Cab283 cmReference

Exhaust303 cmReference

Exhaust297 cmReference

Test results

Diesel 18-speed 4WD1996Reference

PTO performanceReference

Drawbar performanceReference

Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
