Tractor · 2006Unverified

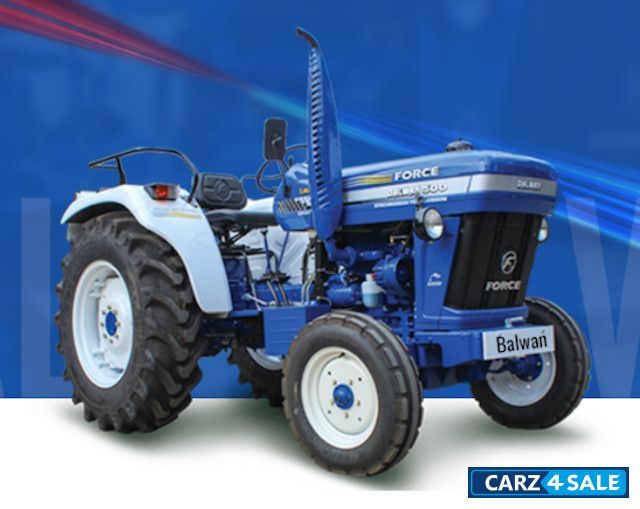

Force Motors Balwan 500
Force Motors Balwan 500 · 50 hp. Reference specifications; pending source verification.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
50 hp
Hover a source tag to verify
Overview
ManufacturerForce MotorsReference
Built in IndiaReference
SteeringmechanicalReference
Wet disc brakesReference
Engine
2.6L 4-cyl dieselReference
Fuel tank59.8 LReference
Engine37.3 kWReference
TD2600FReference
dieselReference
4-cylinderReference
liquid-cooledReference
Displacement2.6 LReference
Bore/Stroke91 x 100 mmReference
Power37.3 kWReference
Compression18.5:1Reference
Oil capacity4.3 LReference
Transmission
8-speedReference
TransmissionsynchromeshReference
Gears8 forward and 4 reverseReference
PTO & Hydraulics
Rear TypeI,IIReference
Rear lift (at ends)1475 kgReference
Rear PTO Type540/1000Reference
Dimensions
Wheelbase196 cmReference
Front tire6.00x16Reference
Rear tire13.6x28Reference
Ag front6.00x16Reference
Ag rear13.6x28Reference
Length334 cmReference
Width168 cmReference
Ground clearance40 cmReference
Electrical
Charging amps23Reference
Battery volts12Reference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
