Tractor · 2006Unverified

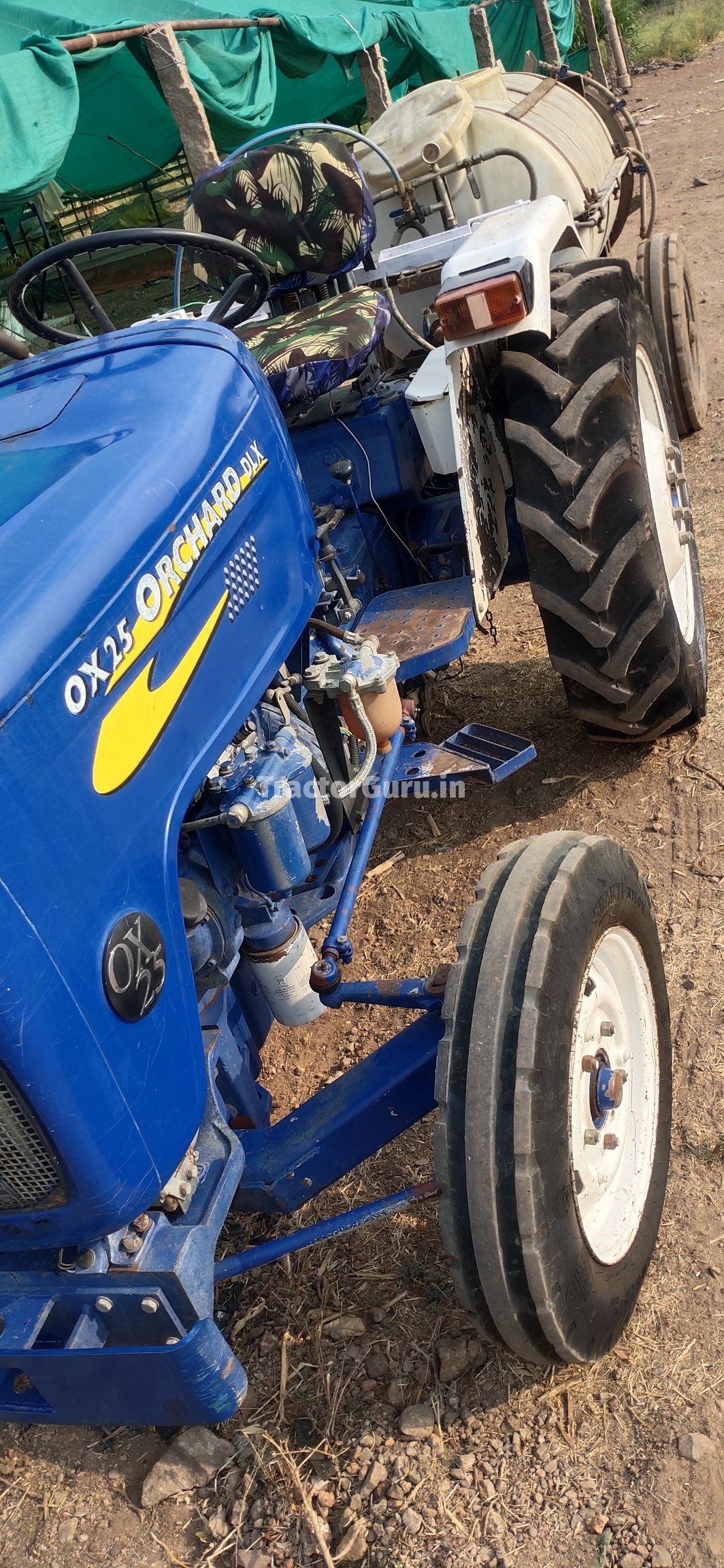

Force Motors Ox 25
Force Motors Ox 25 · 27 hp. Reference specifications; pending source verification.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
27 hp
Weight
1399 kg
Hover a source tag to verify
Overview
ManufacturerForce MotorsReference
Built in IndiaReference
SteeringmechanicalReference
Wet disc brakesReference
Engine
1.8L 4-cyl dieselReference
Engine20.1 kWReference
D301DIReference
dieselReference
4-cylinderReference
liquid-cooledReference
Displacement1.8 LReference
Bore/Stroke78 x 94 mmReference
Power20.1 kWReference
Air cleanerOil bath with cyclonic precleanerReference
Compression18.55:1Reference
Transmission
8-speedReference
Gears8 forward and 4 reverseReference
PTO & Hydraulics
Rear PTO Type540/1000Reference
Dimensions
Wheelbase158 cmReference
Weight1399 kgReference
Front tire5.50x16Reference
Rear tire11.2x28Reference
Ag front5.50x16Reference
Ag rear11.2x28Reference
Length198 cmReference
Width167 cmReference
Ground clearance31 cmReference
Electrical
Charging amps23Reference
Battery volts12Reference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
