Tractor · 1979Unverified
Ford 1100
Ford 1100 — Hundred Compact Series · 13 hp. Reference specifications; pending source verification.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
13 hp
Weight
1231 to 1344 pounds
Hover a source tag to verify
Overview
DistributorFordReference
ManufacturerShibauraReference
Compact Utility tractorReference
Built in JapanReference
Original price was $5,609 in 1982Reference
Two- or four-wheel driveReference
Manual steeringReference
Differential mechanical drum brakesReference
Two-post fixed ROPS.Reference
Engine
Shibaura 0.7L 2-cyl dieselReference
Engine (gross)9.7 kWReference
Engine9.3 kWReference
Shibaura LEK752CReference
dieselReference
2-cylinderReference
liquid-cooledReference
Displacement0.7 LReference
Bore/Stroke75 x 80 mmReference
Power9.3 kWReference
Power (gross)9.7 kWReference
Air cleanerdryReference
Pre-heatingglow plugsReference
Compression23:1Reference
Rated RPM2600Reference
Starter volts12Reference
Oil capacity3.3 LReference
Coolant capacity190.2 LReference
Transmission
10-speed gearReference
TypegearReference
Gears10 forward and 2 reverseReference
Oil capacity18.9 LReference
PTO & Hydraulics
PTO (claimed)8.2 kWReference
Hydraulic system18.9 LReference
Typeopen centerReference
Capacity18.9 LReference
Rear TypeIReference
Rear lift (at ends)399 kgReference
Rear PTOtransmissionReference
ClutchoverrunningReference
Rear PTO Type540 (1.375)Reference
Front PTOindependentReference
ClutchelectricReference
Front PTO TypepulleyReference
Capacities
Fuel13.2 LReference
Dimensions
Wheelbase121 cmReference
Weight1231 to 1344 poundsReference
Front tire4.00-12Reference
Rear tire7.00-16Reference
2WD Ag front4.00-12Reference
4WD Ag front5.00-12Reference
Ag rear7.00-16Reference
2WD Lawn/turf front18x7-8Reference
4WD Lawn/turf front23x8.5-12Reference
Lawn/turf rear8.00-16Reference
Length241 cmReference
Width107 cmReference
Height (ROPS)200 cmReference
Height (exhaust)179 cmReference
2WD Weight558 kgReference
4WD Weight609 kgReference
Ground clearance24 cmReference
2WD Front tread86 to 91 cmReference
4WD Front tread87 cmReference
Rear tread89 to 104 cmReference
Ford 1100 attachments
45" mid-mount mower deckReference
snowblowerReference
front-end loaderReference
backhoeReference
1100 Serial Numbers
Location:Above front axle on left sideReference
1979U125001Reference
1980U127591Reference
1981U129066Reference
1982U130665Reference
1983U131359Reference
FAQ: How to read a serial number table.Reference
Electrical
GroundnegativeReference
Charging systemalternatorReference
Charging amps20Reference
Battery volts12Reference
Battery AH72Reference
Attachment overview
45" mid-mount mower deckReference
SnowblowerReference

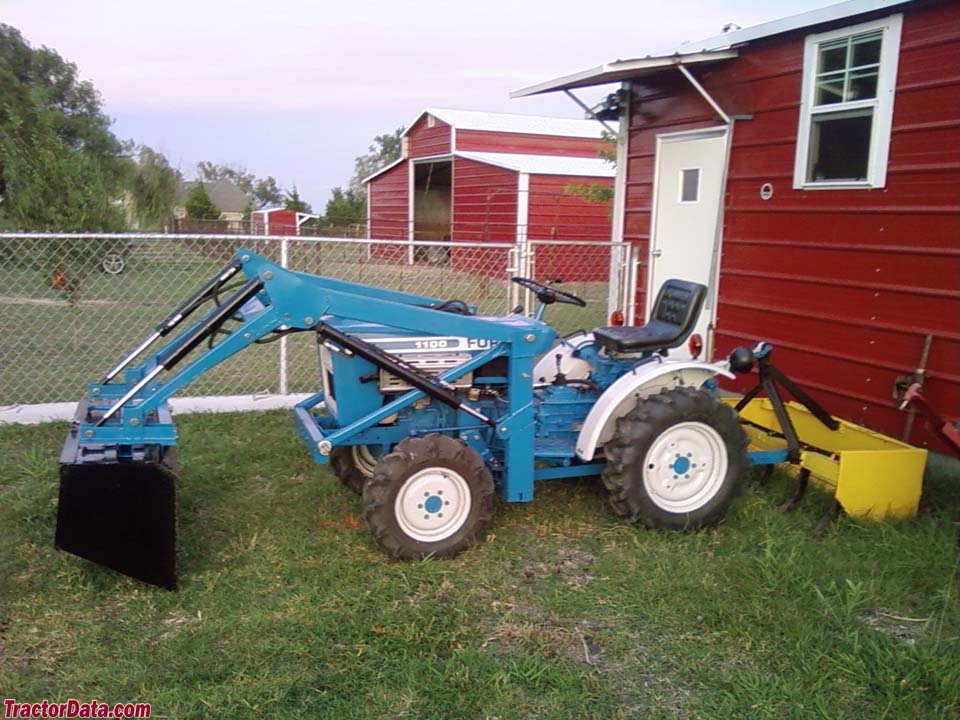

Ford 768 loaderReference
Ford 768A loaderReference
Ford 768B loaderReference
BackhoeReference
In addition to a mid-mount mower, the Ford 1100 was matched with a 48-inch rear finish mower, or rotary cutter. A 48-inch rear blade, plus the model 105 rear tiller (42 or 48 inch) were available.Reference
45" Mower deck
Typemid-mount Ford 915Reference
Cutting width114 cmReference

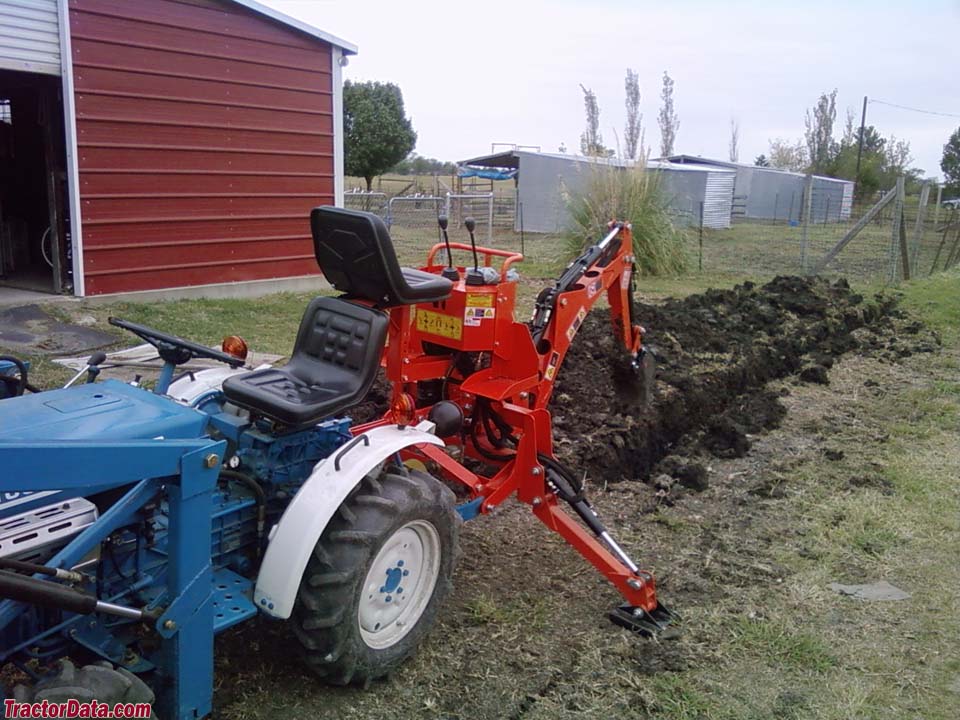

Ford 757 Backhoe
Backhoe typeFord 757 BackhoeReference
Transport height203 cmReference
Bucket width20 cmReference
Bucket width33 cmReference
Bucket width40 cmReference
Digging depth193 cmReference
2-Foot flat digging depth182 cmReference
Reach from pivot269 cmReference
Loading height190 cmReference
Bucket force1360 kgReference
Dipperstick force707 kgReference
Speeds
With 7-16 rear tires.Reference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
