Tractor · 1987Unverified

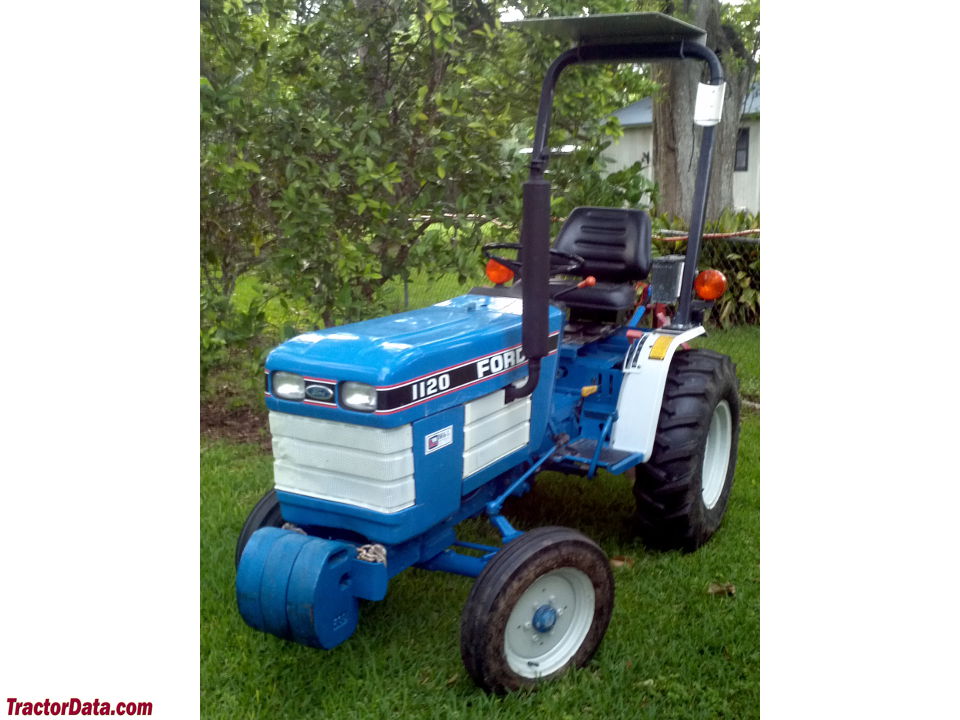

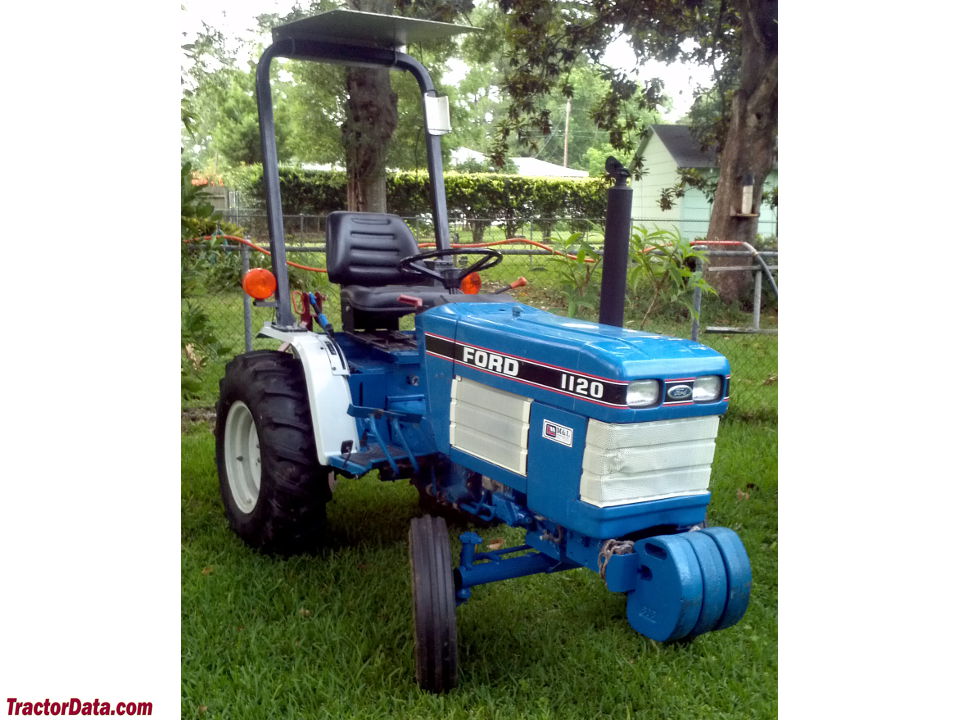

Ford 1120

Name: Ford 1120
Brand: Ford

Ford 1120 — Twenty Compact Series · 15 hp. Reference specifications; pending source verification.

The Ford 1120 is a tractor with an approximate power output of 15 hp, positioned at the lower end of its class. It was manufactured from 1987 to 1993 and features a 3-cylinder diesel liquid-cooled engine paired with a 4-wheel drive system and a hydrostatic transmission. The operating weight of the tractor falls within the range of 1338 to 1429 pounds. It is suitable for working on areas up to 200 acres.

Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.

Rated power

15 hp

Weight

1338 to 1429 pounds

Catalogue coverage

Variants represented

Richest spec table

92 rows

Recorded power

15 hp

Transmissions

9-speed gear

Production years

1987-1993

Verified variants

No linked source document is currently displayed; verify critical figures with the manufacturer or dealer.

Hover a source tag to verify

Overview

DistributorFordReference

ManufacturerShibauraReference

Compact Utility tractorReference

Built in JapanReference

Original price was $9,000 in 1993Reference

Two- or four-wheel driveReference

SteeringmanualReference

SteeringpowerReference

Expanding shoe brakesReference

Two-post ROPS.Reference

Engine

Shibaura 0.9L 3-cyl dieselReference

Fuel tank18.2 LReference

Engine (gross)11.0 kWReference

Engine (net)10.4 kWReference

Shibaura S723Reference

dieselReference

3-cylinderReference

liquid-cooledReference

Displacement0.9 LReference

Bore/Stroke72 x 72 mmReference

Power (net)10.4 kWReference

Power (gross)11.0 kWReference

Compression23:1Reference

Rated RPM2500Reference

Idle RPM800-2700Reference

Firing order1-2-3Reference

Starter volts12Reference

Intake valve clearance0.203 mmReference

Exhaust valve clearance0.203 mmReference

Transmission

9-speed gearReference

hydrostaticReference

TypegearReference

Gears9 forward and 3 reverseReference

TypehydrostaticReference

Gearsinfinite forward and reverse (2-range)Reference

PTO & Hydraulics

Gear PTO (claimed)9.3 kWReference

Hydro PTO (claimed)8.9 kWReference

Typeopen centerReference

Pump flow17.8 lpmReference

Rear TypeIReference

Rear lift (at ends)637 kgReference

Rear PTOtransmissionReference

Rear PTOliveReference

Rear PTO Type540Reference

Mid PTOoptionalReference

Mid PTO Type2000Reference

Dimensions

Wheelbase140 cmReference

Weight1338 to 1429 poundsReference

Front tire4.00-12Reference

2WD Rear tire8-16Reference

Weight158 kgReference

2WD Standard tires (ag)Front: 4.00-12. Rear: 8-16Reference

4WD Standard tires (ag)Front: 5-12. Rear: 8-16Reference

Lawn/turf front20x8.00-10Reference

Lawn/turf rear29x12.00-15Reference

Length270 cmReference

Width103 cmReference

Height (ROPS)203 cmReference

2WD Shipping weight606 kgReference

4WD Shipping weight648 kgReference

2WD Ground clearance25 cmReference

4WD Ground clearance24 cmReference

2WD Front tread85 to 89 cmReference

4WD Front tread82 cmReference

Rear tread85 to 99 cmReference

Ford 1120 attachments

48" mid-mount mower deckReference

snowblowerReference

bladeReference

front-end loaderReference

backhoeReference

1120 Serial Numbers

1987UB02475Reference

1988UB21281Reference

1989UB21944Reference

1990UB22142Reference

1991UB22329Reference

1992UB22439Reference

1993UB22527Reference

FAQ: How to read a serial number table.Reference

Electrical

GroundnegativeReference

Battery volts12Reference

Attachment overview

48" mid-mount mower deckReference

SnowblowerReference

BladeReference

Front-end loaderReference

BackhoeReference

48" Mower deck

Typemid-mount Ford 914Reference

Type3-bladeReference

Cutting width121 cmReference

DriveshaftReference

Overall width152 cmReference

Cut height3 to 10 cmReference

Ford 756B Backhoe

Backhoe typeFord 756B BackhoeReference

Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
