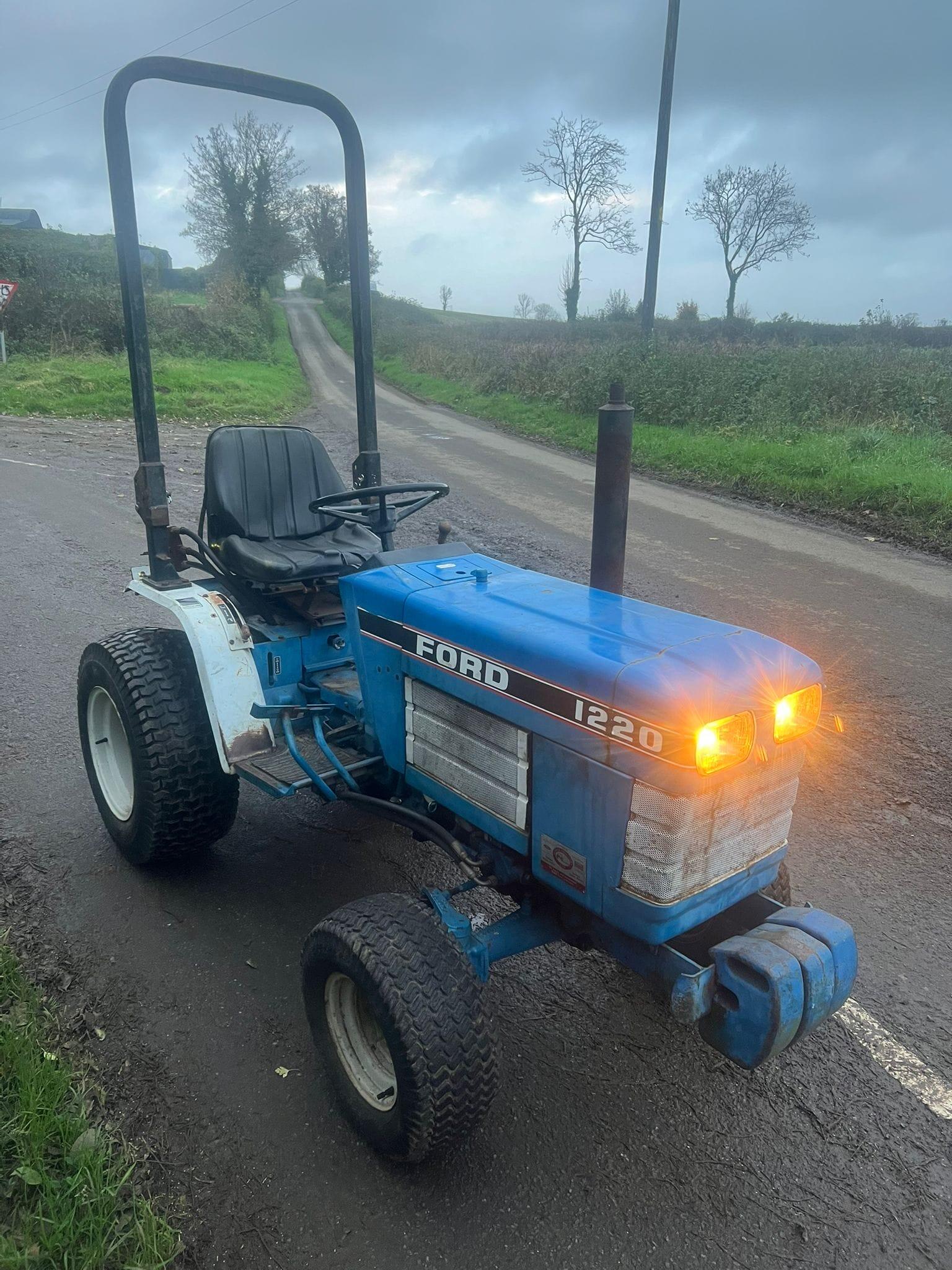

Ford 1220
Ford 1220 — Twenty Compact Series · 17 hp. Reference specifications; pending source verification.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
17 hp
Weight
1338 to 1429 pounds
Hover a source tag to verify
Overview
DistributorFordReference
ManufacturerShibauraReference
Compact Utility tractorReference
Built in JapanReference
Original price was $12,000 in 1999Reference
Two- or four-wheel driveReference
SteeringmanualReference
SteeringpowerReference
Wet disc brakesReference
Two-post ROPS.Reference
Engine
Shibaura 1.0L 3-cyl dieselReference
Fuel tank18.2 LReference
Engine (gross)12.7 kWReference
Engine (net)11.9 kWReference
Shibaura S753Reference
dieselReference
3-cylinderReference
liquid-cooledReference
Displacement1.0 LReference
Bore/Stroke75 x 72 mmReference
Power (net)11.9 kWReference
Power (gross)12.7 kWReference
Compression23:1Reference
Rated RPM2500Reference
Firing order1-2-3Reference
StarterelectricReference
Starter volts12Reference
Intake valve clearance0.203 mmReference
Exhaust valve clearance0.203 mmReference
Transmission
9-speed gearReference
hydrostaticReference
TypegearReference
Gears9 forward and 3 reverseReference
TypehydrostaticReference
Gearsinfinite forward and reverse (2-range)Reference
PTO & Hydraulics
Gear PTO (claimed)10.8 kWReference
Hydro PTO (claimed)10.4 kWReference
Typeopen centerReference
Pump flow17.8 lpmReference
Rear TypeIReference
Rear lift (at ends)637 kgReference
Rear PTOtransmissionReference
Rear PTOliveReference
Rear PTO Type540Reference
Mid PTOoptionalReference
Mid PTO Type2000Reference
Dimensions
Wheelbase140 cmReference
Weight1338 to 1429 poundsReference
Front tire4.00-12Reference
2WD Rear tire8-16Reference
2WD Standard tires (ag)Front: 4.00-12. Rear: 8-16Reference
4WD Standard tires (ag)Front: 5-12. Rear: 8-16Reference
Lawn/turf front20x8.00-10Reference
Lawn/turf rear29x12.00-15Reference
Length270 cmReference
Width103 cmReference
Height (ROPS)203 cmReference
2WD Shipping weight606 kgReference
4WD Shipping weight648 kgReference
2WD Ground clearance25 cmReference
4WD Ground clearance24 cmReference
2WD Front tread85 to 89 cmReference
4WD Front tread82 cmReference
Rear tread85 to 99 cmReference
Ford 1220 attachments
48" mid-mount mower deckReference
60" mid-mount mower deckReference
snowblowerReference
bladeReference
front-end loaderReference
backhoeReference
1220 Serial Number Location
Transmission housing on left side.Reference
1220 Serial Numbers
1987UC21006Reference
1988UC21707Reference
1989UC23199Reference
1990UC24279Reference
1991UC25359Reference
1992UC26052Reference
1993UC26585Reference
1994UC27015Reference
1995UC27524Reference
1996UC27839Reference
1997UC28097Reference
1998UC28612Reference
1999UC28907Reference
FAQ: How to read a serial number table.Reference
Electrical
GroundnegativeReference
Battery volts12Reference
Attachment overview
48" mid-mount mower deckReference
60" mid-mount mower deckReference
SnowblowerReference
BladeReference
Front-end loaderReference
BackhoeReference
Ford 756B Backhoe
Backhoe typeFord 756B BackhoeReference
Transport height146 cmReference
2-Foot flat digging depth198 cmReference
8-Foot flat digging depth130 cmReference
Loading height146 cmReference
Bucket Rotation180°Reference
Bucket force873 kgReference
Dipperstick force408 kgReference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
