Tractor · 1979Unverified

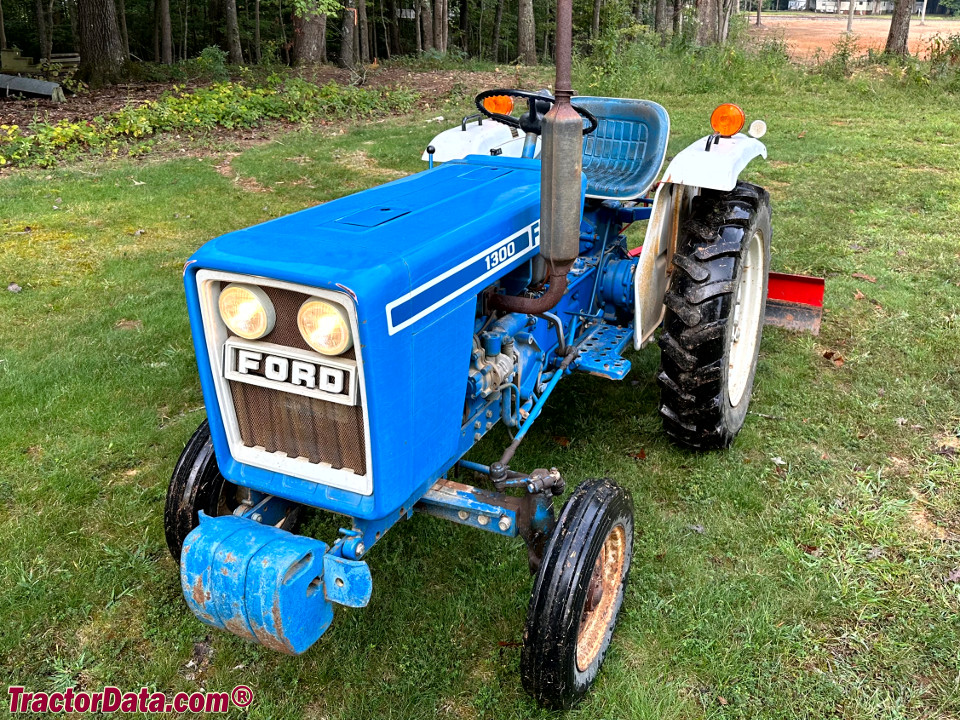

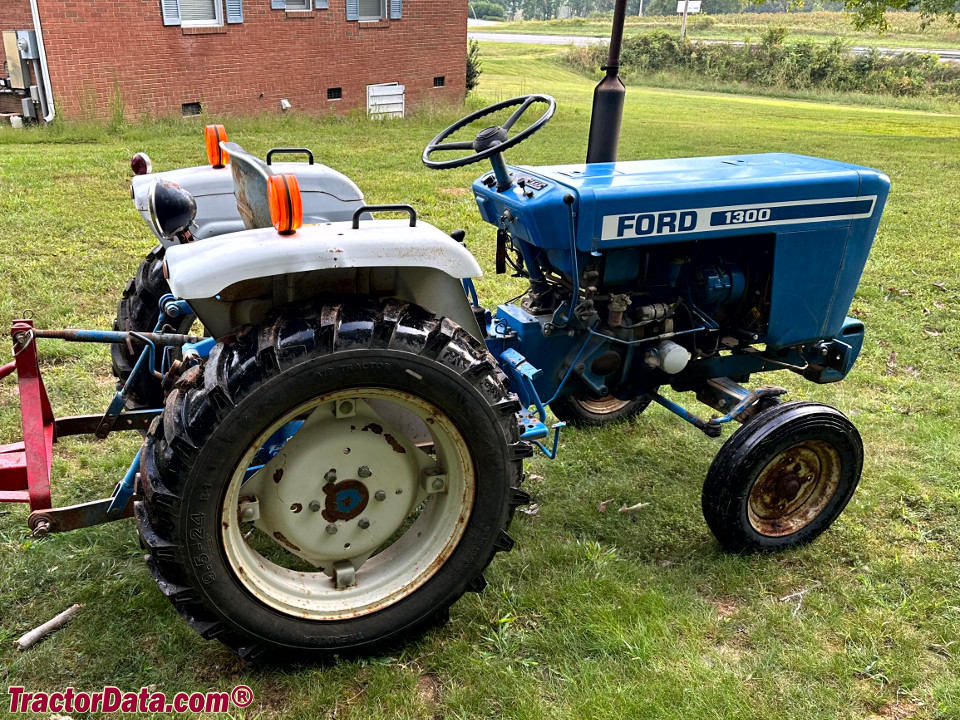

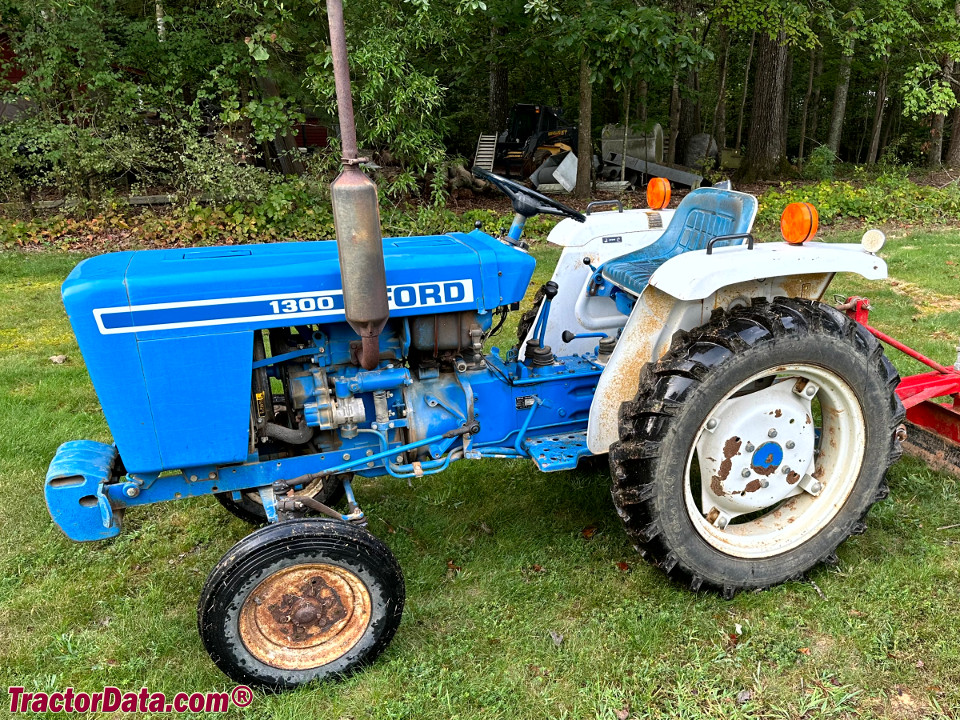

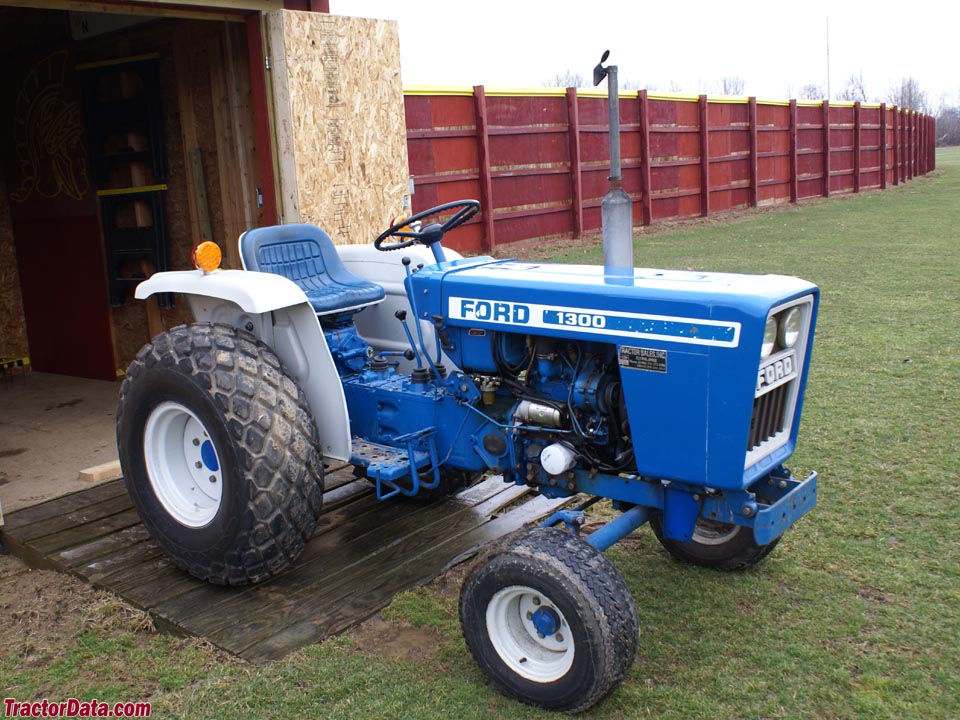

Ford 1300
Ford 1300 — Hundred Compact Series · 16 hp. Reference specifications; pending source verification.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
16 hp
Weight
1873 to 2139 pounds
Hover a source tag to verify
Overview
DistributorFordReference
ManufacturerShibauraReference
Compact Utility tractorReference
Built in JapanReference
Original price was $6,257 in 1982Reference
Two- or four-wheel driveReference
Manual steeringReference
Differential mechanical drum brakesReference
Two-post fixed ROPS.Reference
Engine
Shibaura 0.8L 2-cyl dieselReference
Engine (gross)11.9 kWReference
Engine11.4 kWReference
Shibaura LEK802DReference
dieselReference
2-cylinderReference
liquid-cooledReference
Displacement0.8 LReference
Bore/Stroke80 x 80 mmReference
Power11.4 kWReference
Power (gross)11.9 kWReference
Air cleanerdryReference
Pre-heatingglow plugsReference
Compression23:1Reference
Rated RPM2700Reference
Starter volts12Reference
Oil capacity4.3 LReference
Coolant capacity4.0 LReference
Transmission
12-speed gearReference
TypegearReference
Gears12 forward and 4 reverseReference
Oil capacity19.9 LReference
Three speeds, plus reverse, in four ranges.Reference
PTO & Hydraulics
PTO (claimed)10.1 kWReference
Hydraulic system20.1 LReference
Typeopen centerReference
Capacity20.1 LReference
Pressure147.3 barReference
Pump flow18.0 lpmReference
Rear TypeIReference
Rear lift (at ends)649 kgReference
Rear PTOtransmissionReference
ClutchoverrunningReference
Rear PTO Type540 (1.375)Reference
Front PTOoptionalReference
Capacities
Fuel22.0 LReference
Dimensions
Wheelbase144 cmReference
Weight1873 to 2139 poundsReference
Front tire4.00-12Reference
Rear tire8.3-24Reference
2WD Ag front4.00-12Reference
4WD Ag front6.00-14Reference
Ag rear8.3-24Reference
2WD Lawn/turf front20x8-10Reference
4WD Lawn/turf front25x8.5-14Reference
Lawn/turf rear13.6-16Reference
Length268 cmReference
Width126 cmReference
Height (ROPS)212 cmReference
Height (exhaust)182 cmReference
2WD Weight849 kgReference
4WD Weight970 kgReference
2WD Ground clearance33 cmReference
4WD Ground clearance29 cmReference
2WD Front tread104 to 109 cmReference
4WD Front tread101 cmReference
Rear tread104 to 120 cmReference
Ford 1300 attachments
60" mid-mount mower deckReference
snowblowerReference
front-end loaderReference
backhoeReference
1300 Serial Numbers
Location:Transmission housing, left sideReference
1979U300001Reference
1980U302697Reference
1981U303446Reference
1982---Reference
1983U304962Reference
FAQ: How to read a serial number table.Reference
Electrical
GroundnegativeReference
Charging systemalternatorReference
Charging amps20Reference
Battery volts12Reference
Battery AH72Reference
Attachment overview
60" mid-mount mower deckReference
SnowblowerReference
Ford 770 loaderReference
Ford 770A loaderReference
Ford 770B loaderReference
BackhoeReference
The Ford 1300 was capable of 48 or 59-inch rear finish mowers, or a 48-inch rotary cutter. A 60-inch rear blade or 48-inch box scraper were matched for dirt work. The Ford model 105 rear tiller was available in 42 and 48-inch widths. Ford listed a one-bottom plow as appropriate for the 1300.Reference
60" Mower deck
Typemid-mount Ford 915Reference
Cutting width152 cmReference
Ford 757 Backhoe
Backhoe typeFord 757 BackhoeReference
Transport height203 cmReference
Bucket width20 cmReference
Bucket width33 cmReference
Bucket width40 cmReference
Digging depth193 cmReference
2-Foot flat digging depth182 cmReference
Reach from pivot269 cmReference
Loading height190 cmReference
Bucket force1360 kgReference
Dipperstick force707 kgReference
Speeds
With 8.3-24 rear tires.Reference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
