Tractor · 1983Unverified
Ford 1310
Ford 1310 — Ten Compact Series · 19 hp. Reference specifications; pending source verification.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
19 hp
Weight
2063 to 2261 pounds
Hover a source tag to verify
Overview
DistributorFordReference
ManufacturerShibauraReference
Compact Utility tractorReference
Built in JapanReference
Two- or four-wheel driveReference
Final drivesspur gearReference
Differential lockmechanical rearReference
Manual steeringReference
Differential mechanical drum brakesReference
Two-post fixed ROPS.Reference
Engine
Shibaura 1.0L 3-cyl dieselReference
Engine (net)14.2 kWReference
Shibaura S753Reference
dieselReference
3-cylinderReference
liquid-cooled inlineReference
Displacement1.0 LReference
Bore/Stroke75 x 72 mmReference
Power (net)14.2 kWReference
Air cleanerdryReference
Pre-heatingglow plugsReference
Compression23:1Reference
Rated RPM2800Reference
Idle RPM750-3000Reference
Torque52.9 NmReference
Torque RPM1800Reference
Starter volts12Reference
Oil capacity3.8 LReference
Coolant capacity2.6 LReference
Transmission
12-speed unsynchronized gearReference
12-speed partially synchronizedReference
Typeunsynchronized gearReference
Gears12 forward and 4 reverseReference
Clutch216mm dry discReference
Oil capacity17.0 LReference
Three gears, plus reverse, in four ranges.Reference
Typepartially synchronizedReference
PTO & Hydraulics
PTO (claimed)12.3 kWReference
Hydraulic system17.0 LReference
Typeopen centerReference
Capacity17.0 LReference
Pressure147.1 barReference
Total flow23.8 lpmReference
Rear TypeIReference
Controlposition controlReference
Rear lift (at ends)649 kgReference
Rear PTOtransmissionReference
Rear PTOliveReference
Rear PTO Type540 (1.375)Reference
Engine RPM540@2425Reference
Capacities
Fuel26.1 LReference
Dimensions
Wheelbase160 cmReference
Weight2063 to 2261 poundsReference
Front tire4-12Reference
Rear tire8.3-24Reference
2WD Ag front4-12Reference
4WD Ag front6.00-12Reference
2WD Ag rear8.3-24Reference
4WD Ag rear12.4-16Reference
4WD Ag rear13.6-28Reference
2WD Lawn/turf front25x8.50-12Reference
4WD Lawn/turf front25x8.50-14Reference
Length277 cmReference
2WD Width125 cmReference
4WD Width141 cmReference
2WD Weight935 kgReference
4WD Weight1025 kgReference
2WD Ground clearance33 cmReference
4WD Ground clearance26 cmReference
2WD Front tread100 to 127 cmReference
4WD Front tread116 cmReference
2WD Rear tread104 to 132 cmReference
4WD Rear tread115 cmReference
2WD Steering wheel143 cmReference
4WD Steering wheel139 cmReference
Ford 1310 attachments
60" mid-mount mower deckReference
48" rear-mount mower deckReference
59" rear-mount mower deckReference
60" rear-mount mower deckReference
snowblowerReference

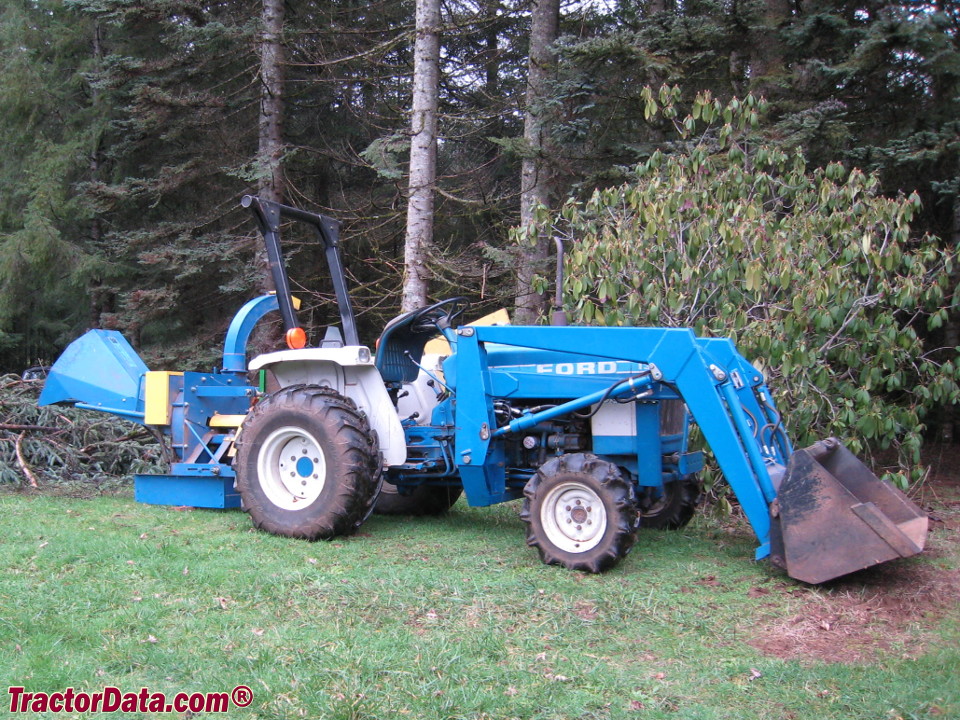

front-end loaderReference
backhoeReference
1310 Serial Numbers
Location:On transmission housing, left side.Reference
1983UE00001Reference
1984UE01019Reference
1985UE02438Reference
1986UE04444Reference
FAQ: How to read a serial number table.Reference
Electrical
GroundnegativeReference
Charging systemalternatorReference
Charging amps35Reference
Charging volts12Reference
Battery volts12Reference
Battery AH72Reference
Attachment overview
60" mid-mount mower deckReference
48" rear-mount mower deckReference
59" rear-mount mower deckReference
60" rear-mount mower deckReference
SnowblowerReference
Ford 770A loaderReference
Ford 770B loaderReference
BackhoeReference
In addition to the mid-mount mowing deck, the Ford 1310 was matched for the 48 or 59 inch model 930A rear finish mowers. The 48-inch model 938 rear rotary cutters could be used for rough mowing. The 917 flail mowers was matched in a 62-inch widths. In addition to a loader and backhoe, the model 706 6-cubic-foot rear scoop was available. Front and rear 60 or 72-inch blade were available, plus the 762A 72-inch landscape rake. Rear tillers were available in 42 and 48-inch widths. Ford listed single-bottom plows, 67-inch disc harrows, and 72-inch cultivators as matched equipment.Reference
Ford 757A Backhoe
Backhoe typeFord 757A BackhoeReference
Bucket width20 cmReference
Bucket width33 cmReference
Bucket width40 cmReference
Digging depth194 cmReference
2-Foot flat digging depth189 cmReference
8-Foot flat digging depth102 cmReference
Reach from pivot271 cmReference
Loading height177 cmReference
Dipperstick force326 kgReference
Ford 1310 Height
ROPS210 cmReference
2WD Exhaust180 cmReference
4WD Exhaust175 cmReference
Speeds
With 8.3-24 rear tires.Reference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
